| Specifications |
| |
|
STAGEPAS 100BTR |

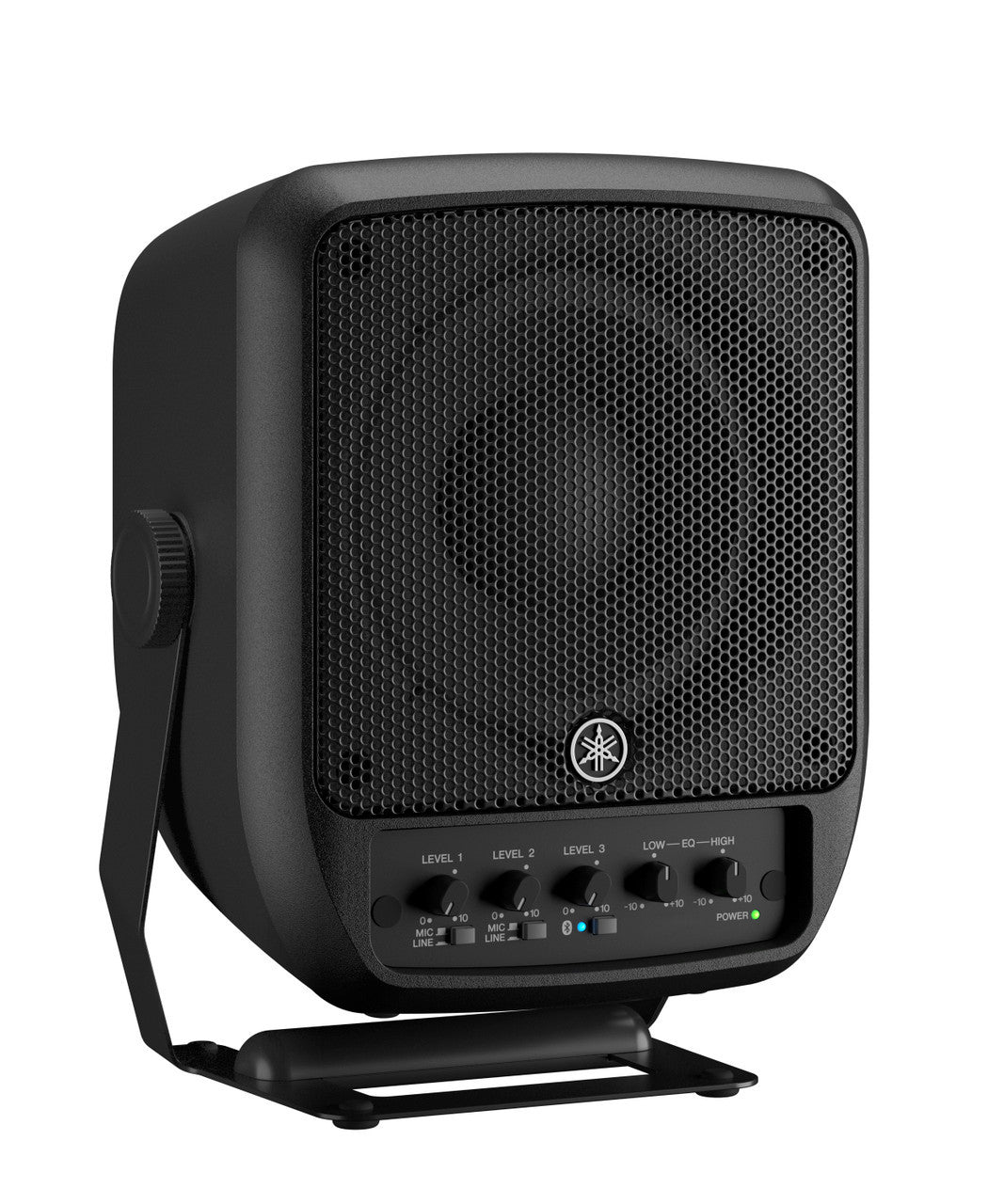

STAGEPAS 100 |
|
| |
Outline |
|
| |
Type |
INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line, Hi-Z), INPUT 3: Stereo Mini x 1 (line) |
|
| |

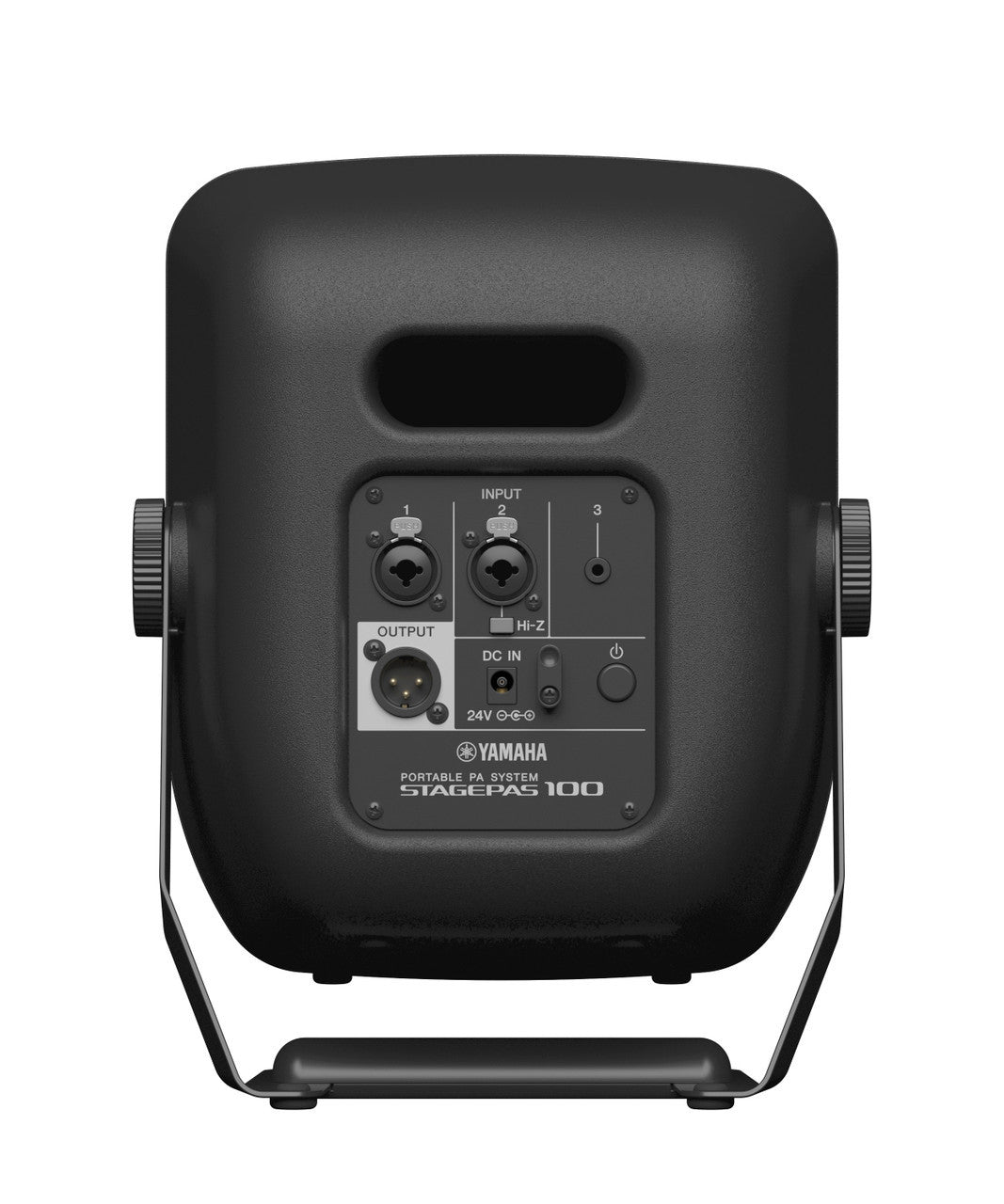

I/O |
Inputs |
Mono x 3 (mic/line) + Stereo/Mono x 1 (line) |
|
| |
Outputs |
OUTPUT: XLR3-32 (INPUT 1-3 mix) |
|
| |
Bluetooth |
Ver.5.0, A2DP (SBC, AAC), Class 1 |
|
| |
Processors |
2 Band EQ |
|
| |
General specifications |
|
| |
Speaker type |
Coaxcial speaker with compression driver |
|
| |
Frequency range (-10dB) |
70 Hz – 20 kHz |
|
| |
Coverage area |
H 90" x V 90" |
|
| |
Crossover |
1.8 kHz (FIR-X) |
|
| |
Maximum output level (1m; on axis) |
120 dB SPL *1 |
|
| |
Components |
LF |
6.5" Cone, 1.7" voice coil |
|
| |
HF |
1" throat compression driver, 1.4" voice coil |
|
| |
Amplifier class |
Class-D |
|
| |
Power rating |
Dynamic |
100 W (LF: 93 W, HF: 7 W) |
|
| |
Cooling |
Natural convection (no fan) |
|
| |
Power consumption |
10 W (Idle), 30 W (1/8 power) |
|
| |
Power requirements |
100-240 V 50/60 Hz |
|
| |
Battery |
Type |
Rechargeable Lithium ion battery pack |
— |
|
| |
Capacity |
60 Wh |
— |
|
| |
Operating Time |
Maximum 6 hours, 1/16 power continuous 5 hours |
— |
|
| |
Charging Time |
Approx. 2.5 hours |
— |
|
| |
Cabinet material |
Plastic (PP) |
|
| |

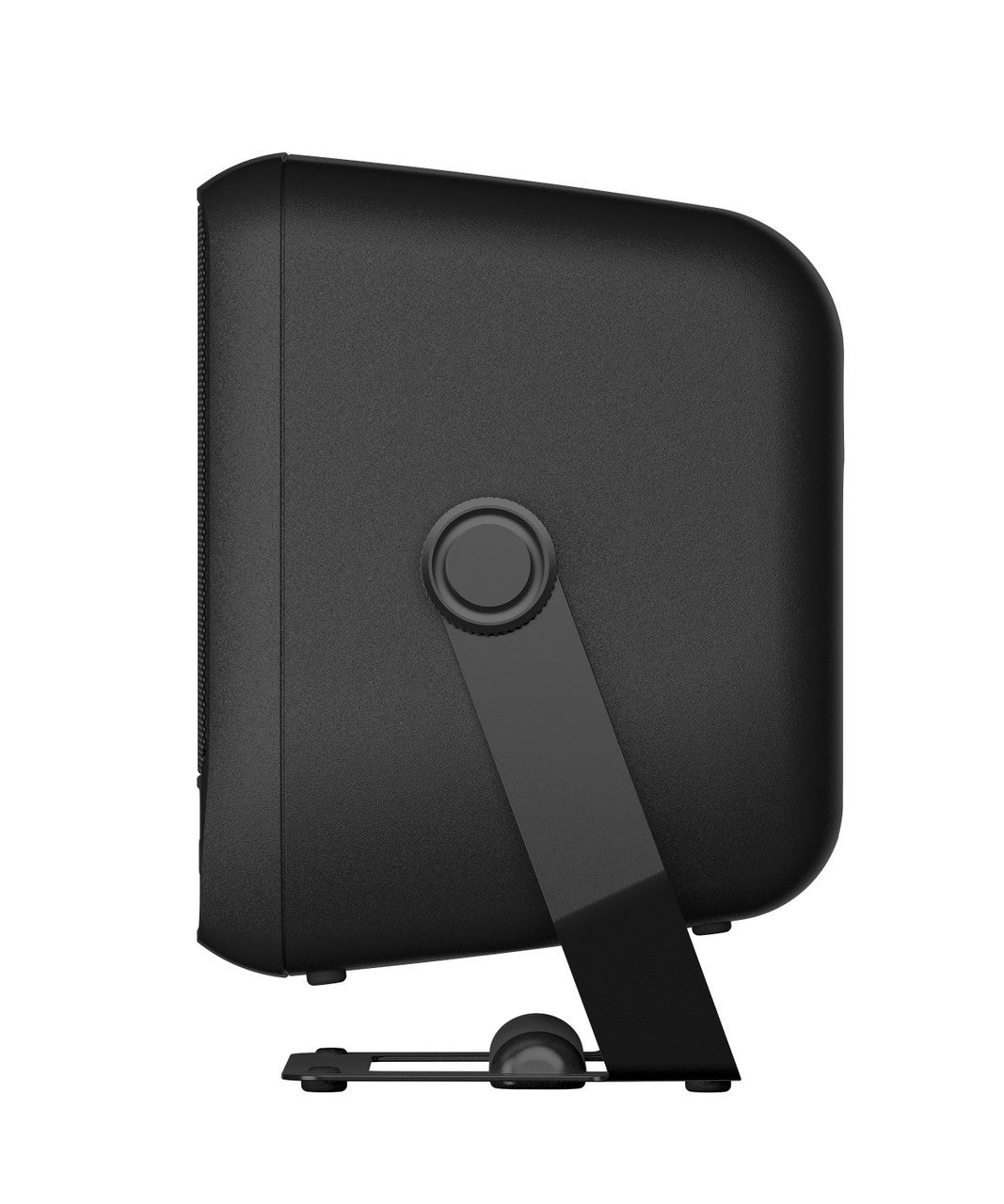

Handle |
Bottom x 1 (Rotatable) |
|
| |

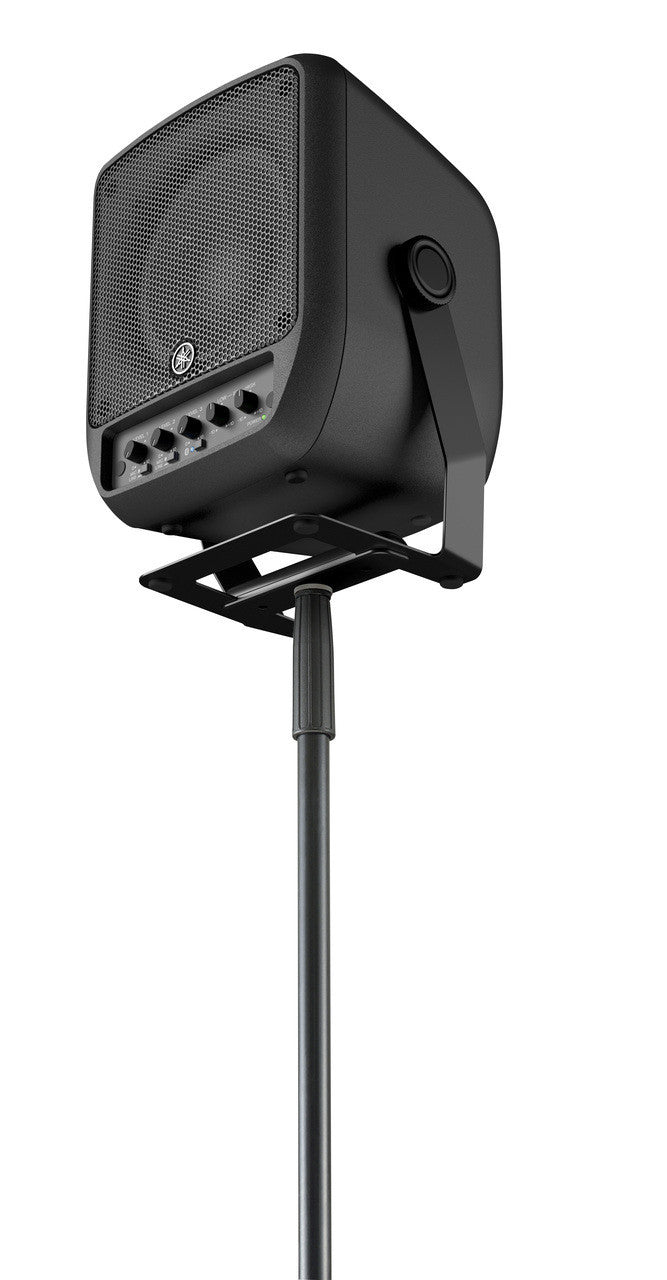

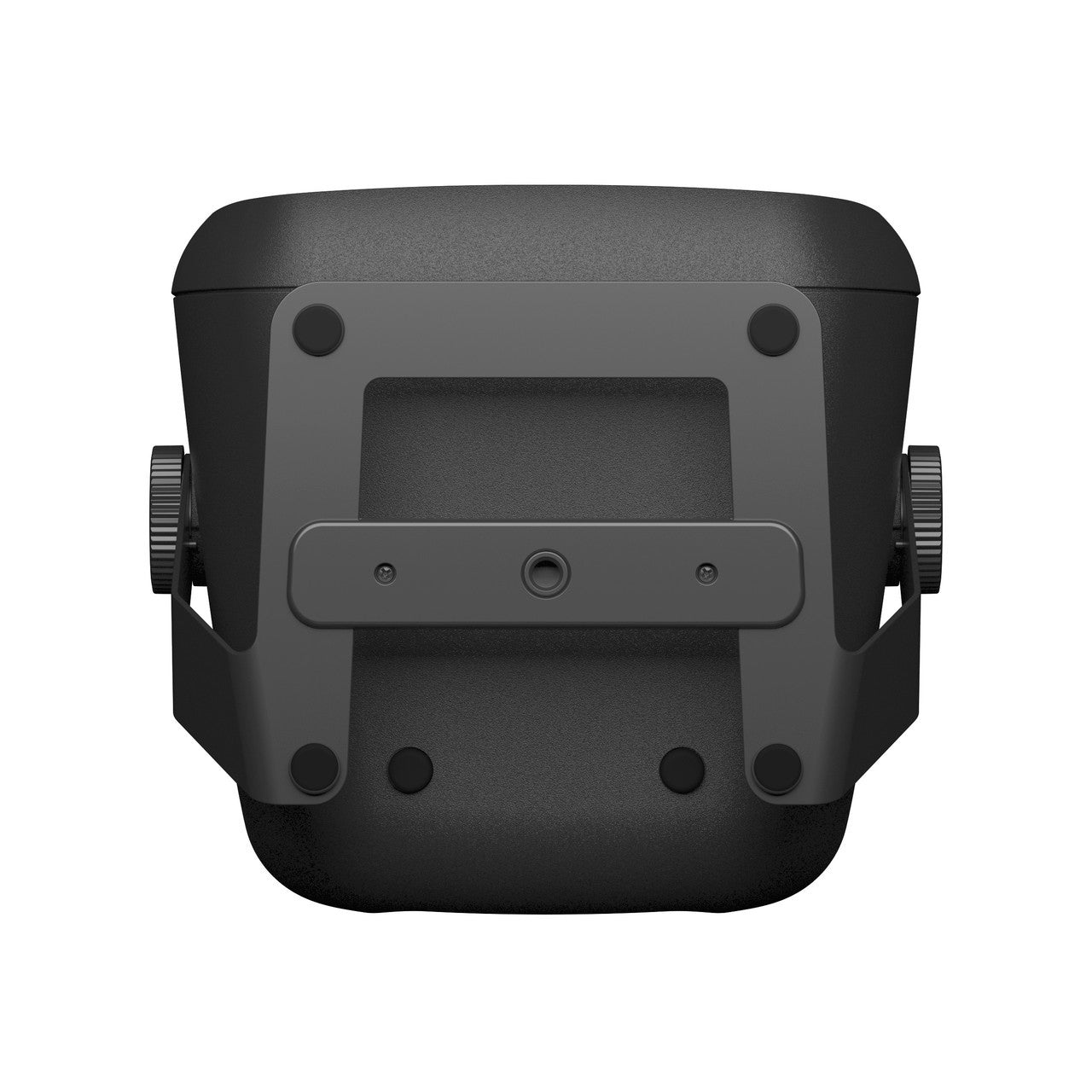

mounting hardware |
1 × 3/8", depth 12 mm (center of handle) |
|
| |
Dimensions (W x H x D) |
239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle |
|
| |
Weight |
5.5 kg (12.1 lbs), without AC adaptor |
5.2 kg (11.5 lbs), without AC adaptor |
|
| |
Included Accessories |
Power cord x 1, AC adaptor (PA-500) x 1 |
|
| |
Option |
Carrying bag: BAG-STP100 |
|
| *1: Measured peak SPL with pink noise @1m. |
|
|
|
|
|
|
|
