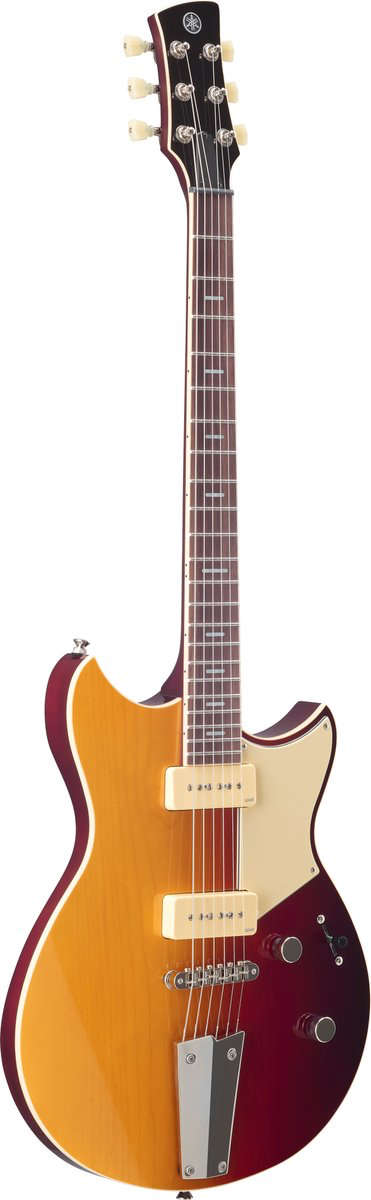

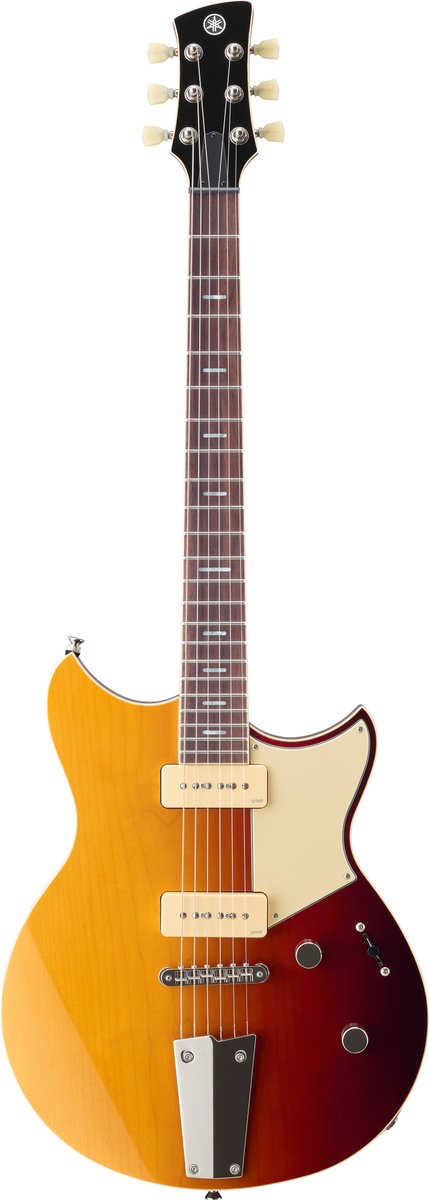

Yamaha Revstar Professional RSP02T SSB Sunset Burst Electric Guitar
Yamaha Revstar Professional RSP02T SSB Sunset Burst Electric Guitar
This Revstar Professional features P90-style single-coil pickups with 5-way switching and the Focus Switch boost, with a custom racing tailpiece.
- Built in Japan
- 3 Café racer inspired finishes
- Chambered maple and mahogany body
- Carbon-reinforced neck and body
- 2 P90-style pickups
- 5-Position pickup selector
- Passive Focus Switch
- Hardshell case included
|
|
|
||
|---|---|---|---|
|
|
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| General Specifications | |||||||||
| General | Construction | Set-in | |||||||
| Scale Length | 24-3/4” (628.6mm) | ||||||||
| Body | Body Materials | Top: Maple / Back: Chambered 2-Piece Mahogany, Carbon Reinforcement | |||||||
| Body Finish | Gloss Polyurethane | ||||||||
| Neck | Neck Materials | 3-Piece Mahogany, Carbon Reinforcement | |||||||
| Neck Finish | Satin Polyurethane | ||||||||
| Fingerboard Materials | Rosewood | ||||||||
| Fingerboard Radius | 12" (304.8mm) | ||||||||
| Fret Wire | Jumbo Stainless steel | ||||||||
| Number of Frets | 22 | ||||||||
| Nut Materials | PPS | ||||||||
| Neck Width @ 0 Fret / 12th Fret | 41.9 / 52.0 mm | ||||||||
| Thickness @1st Fret / 12th Fret | 21.0 / 23.9 mm | ||||||||
| Electronics | Neck Pickup | VP5n: P90 type Single coil / Alnico V | |||||||
| Middle Pickup | - | - | |||||||
| Bridge Pickup | VP5b: P90 type Single coil / Alnico V | ||||||||
| Controls | Master Volume, Master Tone (Push-Pull "Focus Switch") | ||||||||
| Pickup Switch | 5-Position Lever Switch | ||||||||
| Hardware | Bridge | Tune-O-Matic | |||||||
| Tremolo Arm | - | ||||||||
| String Spacing | 10.5mm | ||||||||
| Tailpiece | Racing Tailpiece | ||||||||
| Tuning Machines | Die-Cast | ||||||||
| Pickguard | 3-Ply Cream | ||||||||
| Others | String Gauge | D'Addario EXL110 / 0.010-0.046 | |||||||
| Case | Hardshell case | - | |||||||
| Special Features | I.R.A. Treatment | ||||||||
CHAMBERED BODY WITH ACOUSTIC DESIGN
Revstar Professional guitars feature chambered bodies designed to sculpt tone and reduce weight, with carbon reinforcement in the body and neck to improve vibration transfer.
5-WAY SWITCHING
Positions 2 and 4 slightly delay the opposite pickup for a subtle phase shift that offers a fresh take on classic “in-between” sounds.
FOCUS SWITCH
The push/pull Tone control activates a passive boost with an effect similar to overwound pickups—darker highs, increased mids and lows, and an aggressive character.
CHOICE OF PICKUPS
RSP20 and RSP20X feature humbuckers, and RSP02T offers P90-style single-coils. All pickups are custom designed by Yamaha and use Alnico V magnets for powerful tone.
