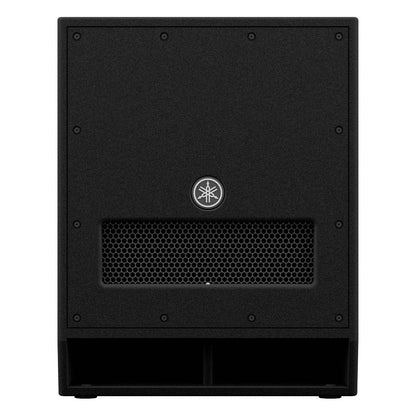

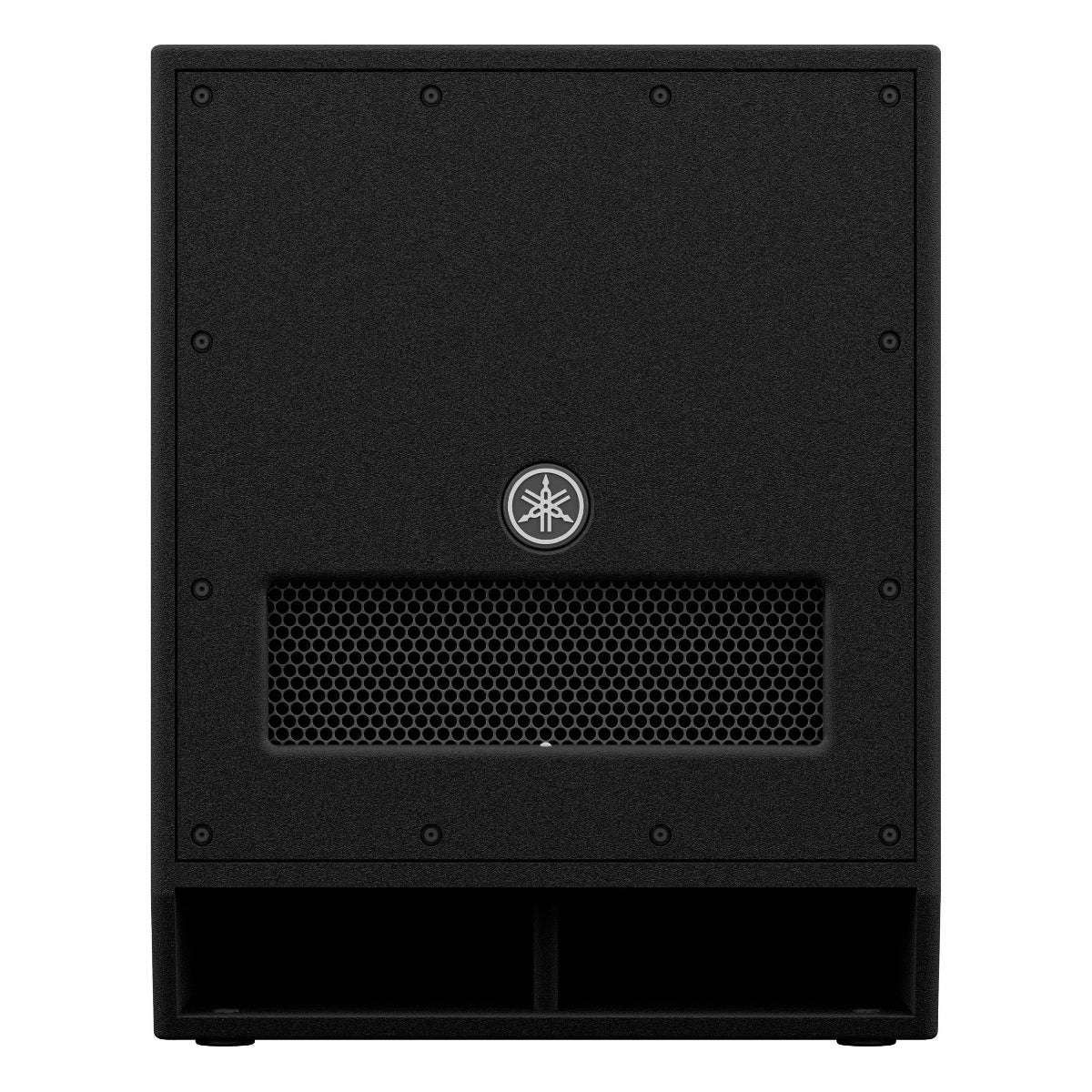

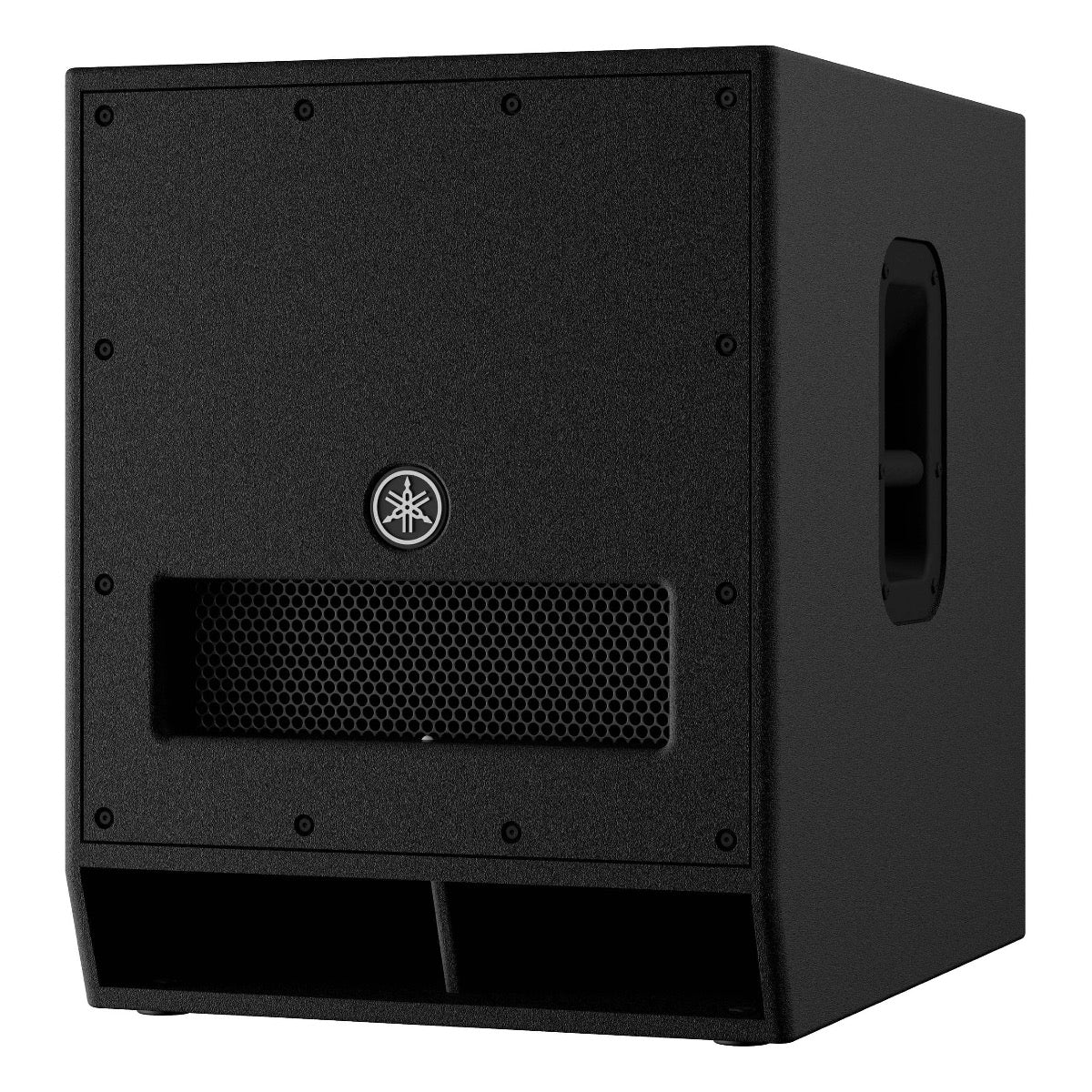

Yamaha DXS15MKII 15" Subwoofer

Yamaha DXS15MKII 15" Active Subwoofer

The Yamaha DXS15MKII delivers next-generation bass reinforcement for small-to-medium venues, touring rigs, houses of worship, and school sound systems. Combining an 800-watt Class D amplifier with an acoustically optimized bandpass cabinet, the DXS15MKII achieves a remarkable 135dB SPL peak output while extending low-frequency response down to 40Hz — giving your system the deep, authoritative bass that moves a room.

High-Power Class D Amplifier

The DXS15MKII's 800-watt continuous Class D amplifier delivers rich, solid bass reinforcement with ample headroom to reproduce the dynamics and nuances of your music. Because the amplifier requires no active cooling, you can run the DXS15MKII at high volume levels for extended periods without distortion or thermal shutdown.

Stellar Sound Quality

Yamaha's proprietary D-XSUB DSP processing extends the low-frequency response of the DXS15MKII for maximum bass impact in larger rooms. The acoustically optimized wooden enclosure resists distortion at high output levels, maintaining sound quality even at extreme SPL. A 15" driver with a 2.5" voice coil ensures superb bass response across the full 40Hz–150Hz operating range.

Flexible Integration

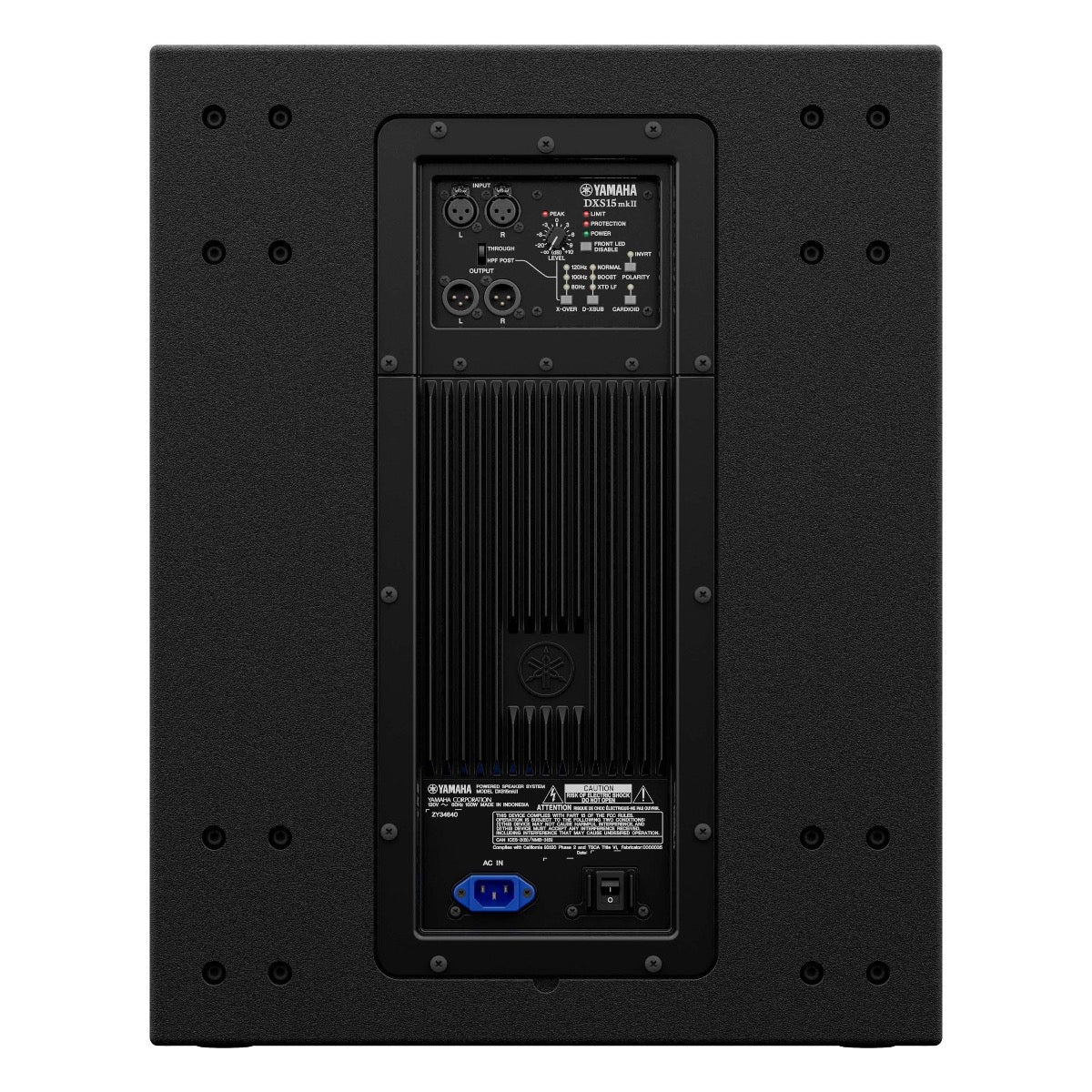

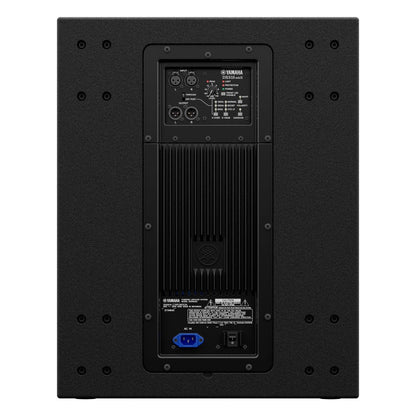

Dual XLR inputs connect to your mixer, crossover, or main speaker throughputs, while parallel XLR outputs make it easy to add additional DXS subwoofers. The DXS15MKII features a switchable highpass filter on its outputs — so connected full-range powered speakers can dedicate their full output power to frequencies above the crossover point, delivering better projection and a more detailed soundstage. Selectable crossover points at 80, 100, and 120Hz give you precise system tuning flexibility.

Cardioid Mode & Stage-Ready Design

Built-in cardioid mode enables efficient onstage bass management by reducing rear-firing low frequencies — ideal for stage monitoring applications. The durable wooden bandpass enclosure includes M20 and 35mm pole socket options, making setup fast and flexible in any venue.

Yamaha DXS15MKII Features:

• 800-watt continuous Class D power amplifier
• 135dB peak SPL from a compact, lightweight enclosure
• 15" driver with 2.5" voice coil
• 40Hz–150Hz frequency range
• Selectable crossover points: 80, 100, and 120Hz
• D-XSUB DSP processing for extended low-frequency response
• Cardioid mode for onstage bass management
• Switchable highpass filter on XLR outputs
• Dual XLR inputs and parallel XLR outputs
• M20 and 35mm pole socket options
• Acoustically optimized bandpass wooden enclosure

Tech Specs

• Powered:Yes
• LF Driver Size:15"
• Power Rating:800W Continuous
• Total Power:1020W
• Inputs:2 x XLR
• Outputs:2 x XLR (thru)
• Frequency Range:40Hz-150hz (-10 dB)
• Maximum Peak SPL:135 dB SPL
• Signal Processing:D-XSUB (Boost, XTD LF, Normal)
• Mounting Options:Floor
• Power Source:Standard IEC AC connector
• Enclosure Material:Meranti Plywood, Black Polyurea coating
• Height:24.06"
• Width:18.9"
• Depth:24.17"
• Weight:79.4 lbs.
• Manufacturer Part Number:DXS15MKII
