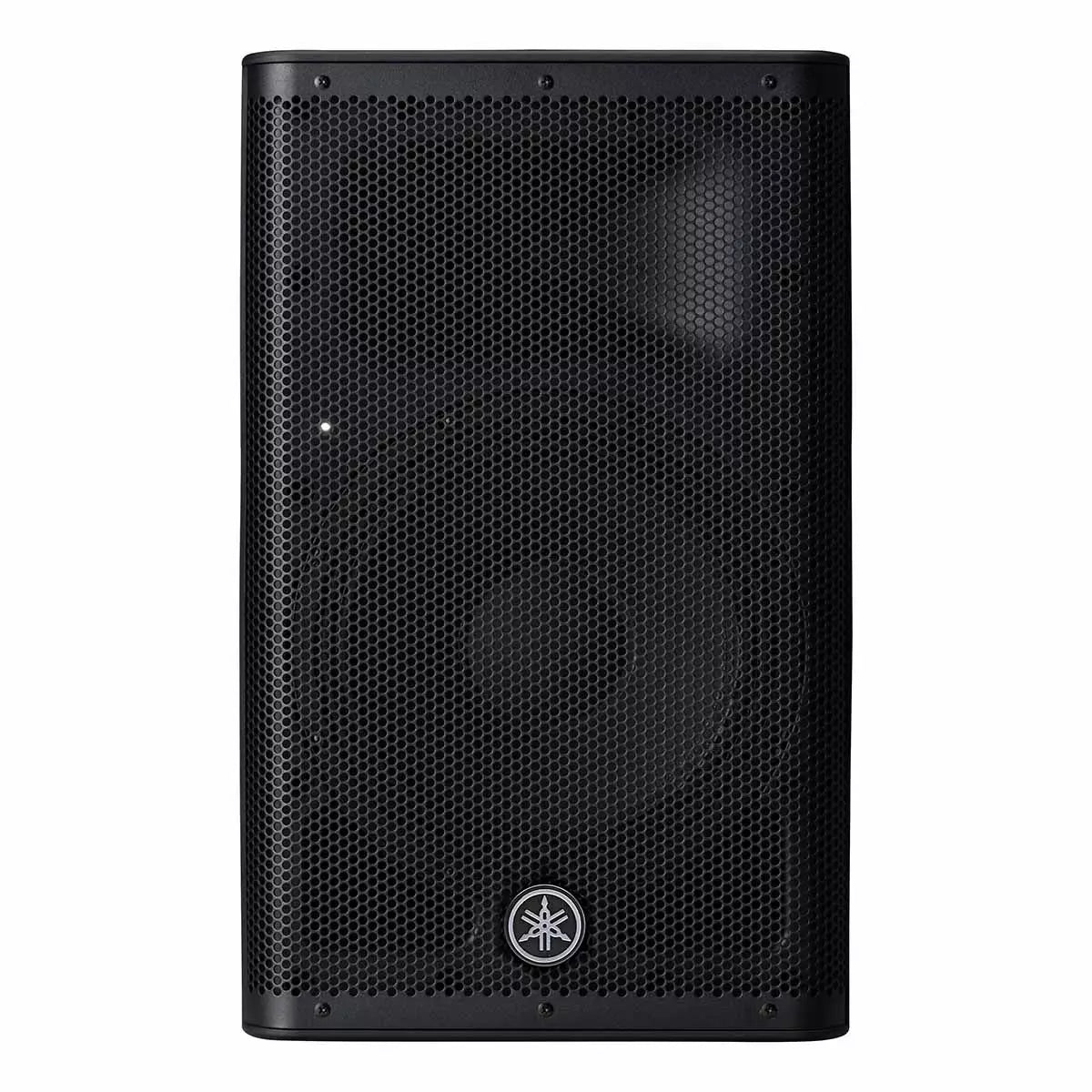

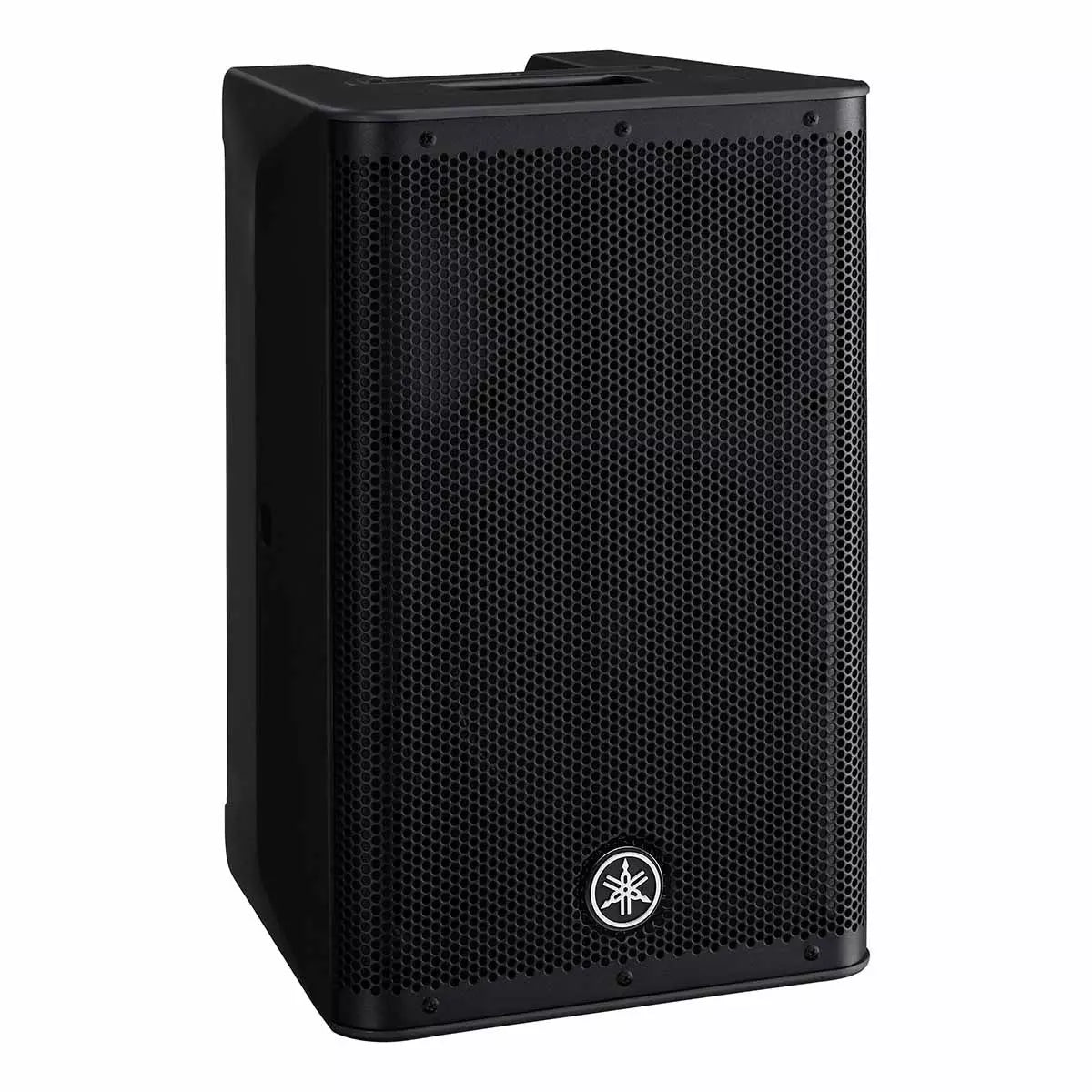

Yamaha DXR8MKII 8" 2-Way Powered Loudspeaker

Yamaha DXR8MKII 8" 2-Way Powered Loudspeaker

The Yamaha DXR8MKII is the refined second generation of Yamaha's acclaimed DXR Series — a compact, high-output 8" powered loudspeaker engineered for musicians, DJs, and AV professionals who demand professional-grade sound in a portable package. Drawing on DSP and amplifier technology developed for Yamaha's flagship CZR and DZR Series, the DXR8MKII delivers exceptional clarity, punch, and reliability night after night.

Key Features

• 1100W Peak Class-D Amplifier — High-efficiency bi-amp design with dedicated LF and HF amplification
• 8" Woofer + 1.4" Compression Driver — Optimized 2-way design for full-range, high-resolution sound
• FIR-X Tuning™ — Linear phase FIR filtering for precise, phase-coherent crossover performance
• D-CONTOUR DSP — Switchable FOH/MAIN, MONITOR, and OFF modes for application-specific voicing
• Dante Network Audio — Optional Dante card slot for networked audio distribution (MY card compatible)
• 2-Channel Onboard Mixer — Combo XLR/TRS inputs; XLR parallel output for daisy-chaining
• Pole-Mountable & Floor Monitor Ready — 35mm pole socket and angled enclosure for flexible deployment
• M10 Rigging Points — For flown or bracket-mounted installations
• Rugged Plywood Cabinet — Polyurea-coated for durability and road-readiness

Specifications

• Speaker Type: 2-way, bi-amp powered, bass-reflex
• LF Driver: 8" cone
• HF Driver: 1.4" compression driver
• Peak Power Output: 1100W (LF: 900W + HF: 200W)
• Max SPL: 131dB @ 1m on-axis
• Frequency Range: 60Hz – 20kHz
• Coverage: 90° H × 60° V

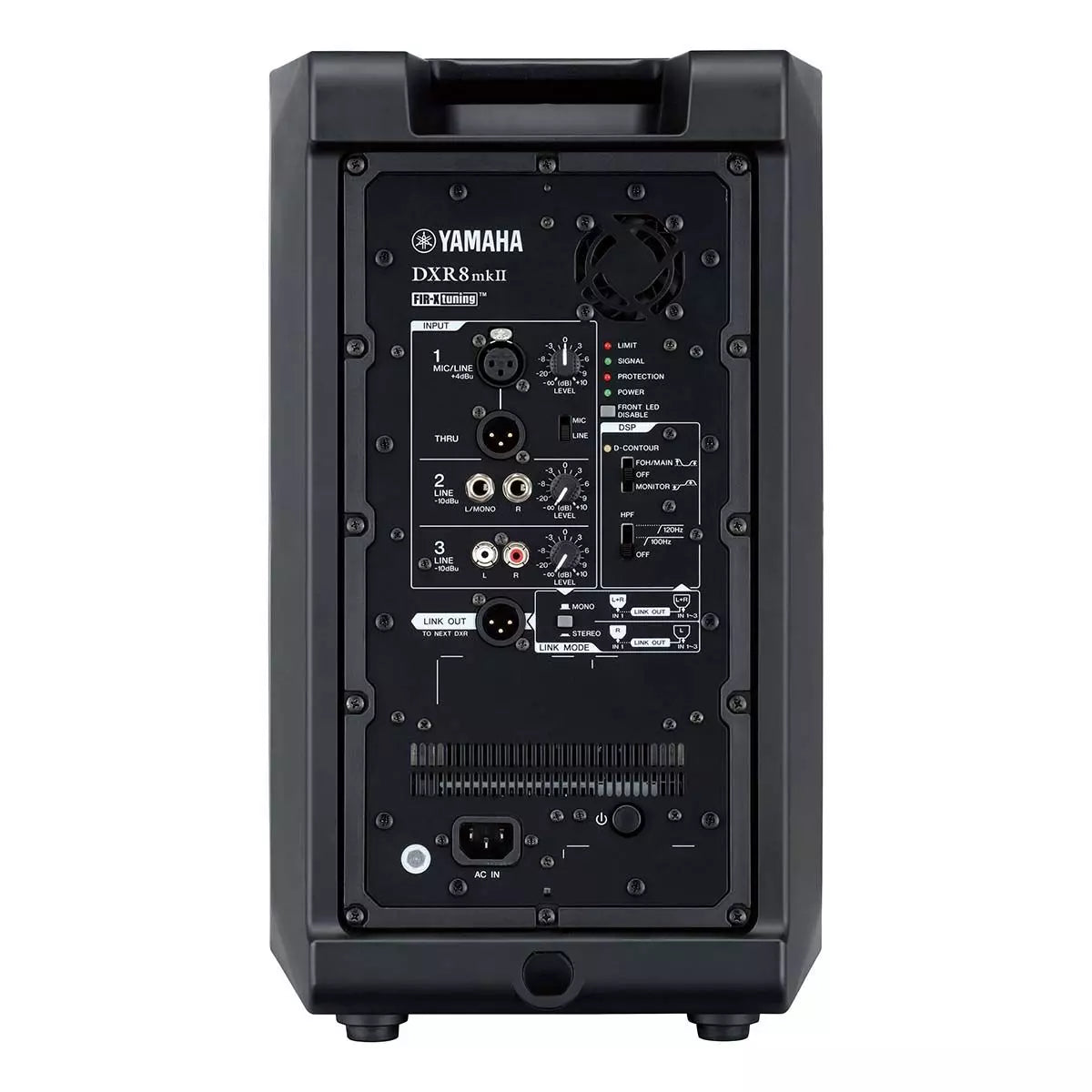

• I/O: INPUT1: Combo x1 | INPUT2: Combo x1 | OUTPUT: XLR x1 (parallel through)
• Processors: D-CONTOUR (FOH/MAIN, MONITOR, OFF); FIR-X Tuning™
• Cabinet: Plywood, Black polyurea finish
• Weight: ~22.5 lbs (10.2 kg)
