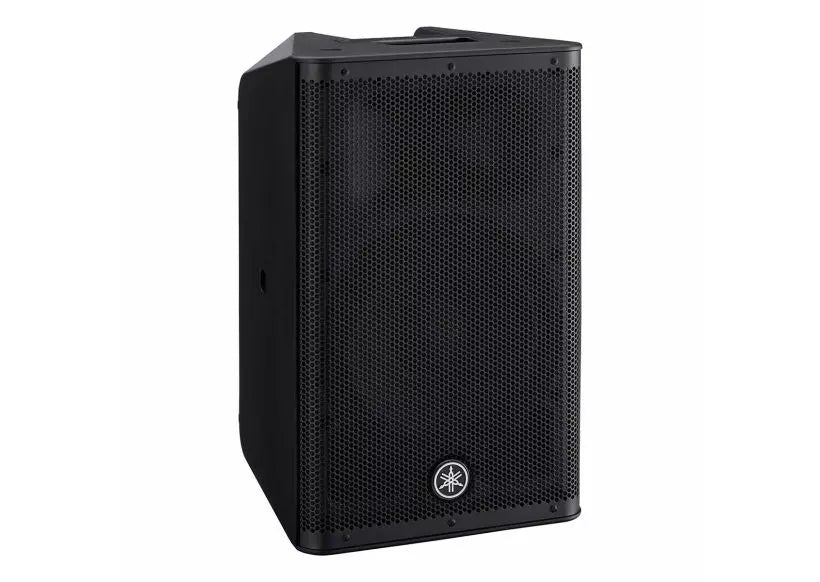

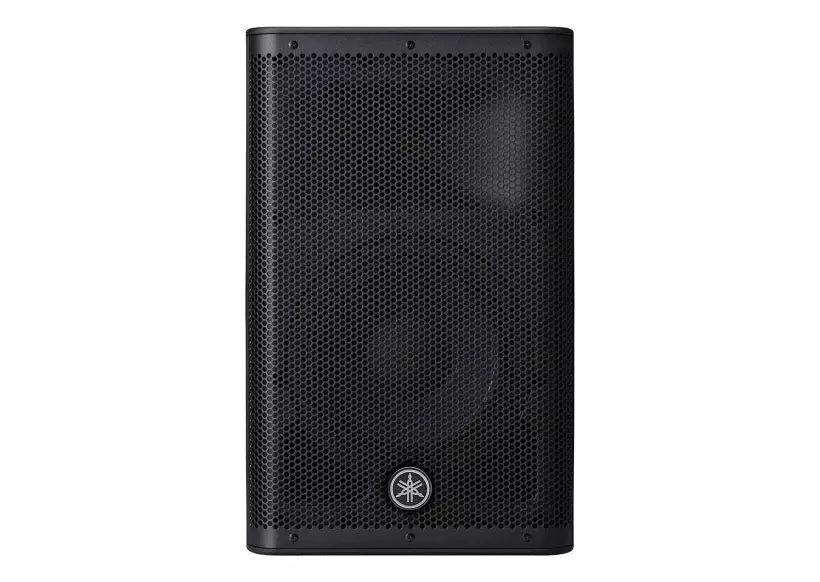

Yamaha DXR10MKII 10" 2-Way Powered Loudspeaker
Yamaha DXR10MKII 10" 2-Way Powered Loudspeaker
Yamaha DXR10MKII 10" 2-Way Powered Loudspeaker
The Yamaha DXR10MKII is the second generation of Yamaha's professional DXR Series — a versatile 10" powered loudspeaker built for musicians, DJs, and AV installers who need serious output without sacrificing portability. Leveraging DSP and amplifier technology trickled down from Yamaha's flagship CZR and DZR Series, the DXR10MKII punches well above its class with tight, articulate low end and crystal-clear highs at any volume.
Key Features
- 1100W Peak Class-D Amplifier — Bi-amp design with dedicated LF and HF channels for maximum efficiency and headroom
- 10" Woofer + 1.4" Compression Driver — Full-range 2-way coverage with extended low-frequency response
- FIR-X Tuning™ — Linear phase FIR filtering for phase-coherent, artifact-free crossover performance
- D-CONTOUR DSP — Switchable FOH/MAIN, MONITOR, and OFF modes optimized for each application
- 2-Channel Onboard Mixer — Combo XLR/TRS inputs on both channels; XLR parallel output for system expansion
- Pole-Mountable & Floor Monitor Ready — 35mm pole socket and wedge-friendly enclosure angle
- M10 Rigging Points — For flown or bracket-mounted permanent installations
- Rugged Plywood Cabinet — Polyurea-coated finish for durability on the road or in installed environments
Specifications
- Speaker Type: 2-way, bi-amp powered, bass-reflex
- LF Driver: 10" cone
- HF Driver: 1.4" compression driver
- Peak Power Output: 1100W (LF: 900W + HF: 200W)
- Max SPL: 132dB @ 1m on-axis
- Frequency Range: 55Hz – 20kHz
- Coverage: 90° H × 60° V
- I/O: INPUT1: Combo x1 | INPUT2: Combo x1 | OUTPUT: XLR x1 (parallel through)
- Processors: D-CONTOUR (FOH/MAIN, MONITOR, OFF); FIR-X Tuning™
- Cabinet: Plywood, Black polyurea finish
- Weight: ~26.5 lbs (12 kg)
Portable, yet capable of producing an astonishing 132 dB SPL, the DXR10mkII’s compact, functional design makes it ideal for a wide range of applications. Whether providing simple vocal/instrument amplification, very powerful floor monitoring or comprising a compact SR system - the DXR10mkII delivers without compromising sound quality and power.
LOUDER, LIGHTER, LEGENDARY
Since its inception, the DXR Series has long signified a confluence of raw power and technological innovation that reliably harnesses and delivers impressively high output with superior quality and clarity. The DXR mkII Series powered loudspeakers are the newly upgraded models of the series that add even more SPL and feature a larger, yet much lighter 1.75” Neodymium HF compression driver for extremely clear voice reproduction and musicality. Once again our team worked in tight collaboration with touring loudspeaker specialists NEXO, adding crucial insight and expertise that led to design improvements based on the ever-evolving demands of sound reinforcement professionals.
SPEAKER TYPE
| 10" 2-way, Bi-amp powered speaker, Bass-reflex type |
FREQUENCY RANGE (-10DB)
| 56Hz - 20kHz |
NOMINAL COVERAGE
| H | 90° |
| V | 60° |
COMPONENTS
| LF | Diameter:10" cone, Voice Coil:2", Magnet:Ferrite |
| HF | Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium |
CROSSOVER
| FIR-X tuning™ (linear phase FIR filter) |
OUTPUT POWER
| Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) |
MAXIMUM OUTPUT LEVEL (1M; ON AXIS)
| 132dB SPL |

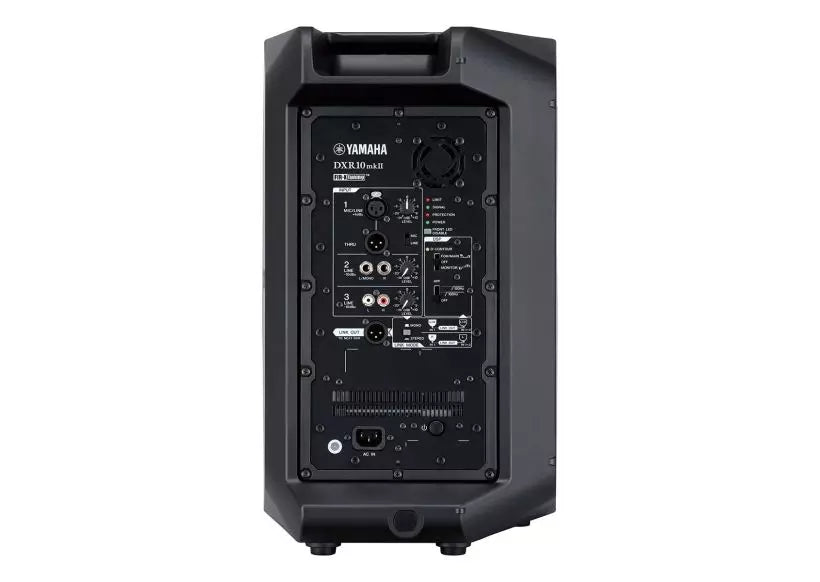

I/O CONNECTORS
| INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1 |
PROCESSORS
| D-CONTOUR: FOH/MAIN, MONITOR, OFF |
POWER REQUIREMENTS
| 100V - 240V, 50Hz/60Hz |
POWER CONSUMPTION
| 90W |
FLYING AND MOUNTING HARDWARE
| Top x2, Rear x1 (Fits for M8 x 15mm eyebolts) |
POLE SOCKET
| 35mm with 2-way features (0 or 7 degrees) |
DIMENSIONS
| W | 305mm (12") |
| H | 502mm (19 6/8") |
| D | 310mm (12 2/8") |
NET WEIGHT
| 13.9kg (30.6lbs) |
ACCESSORIES
| UB-DXR10 (U-bracket) |
OTHERS
| Material: ABS (Matte Finish, Black) |
