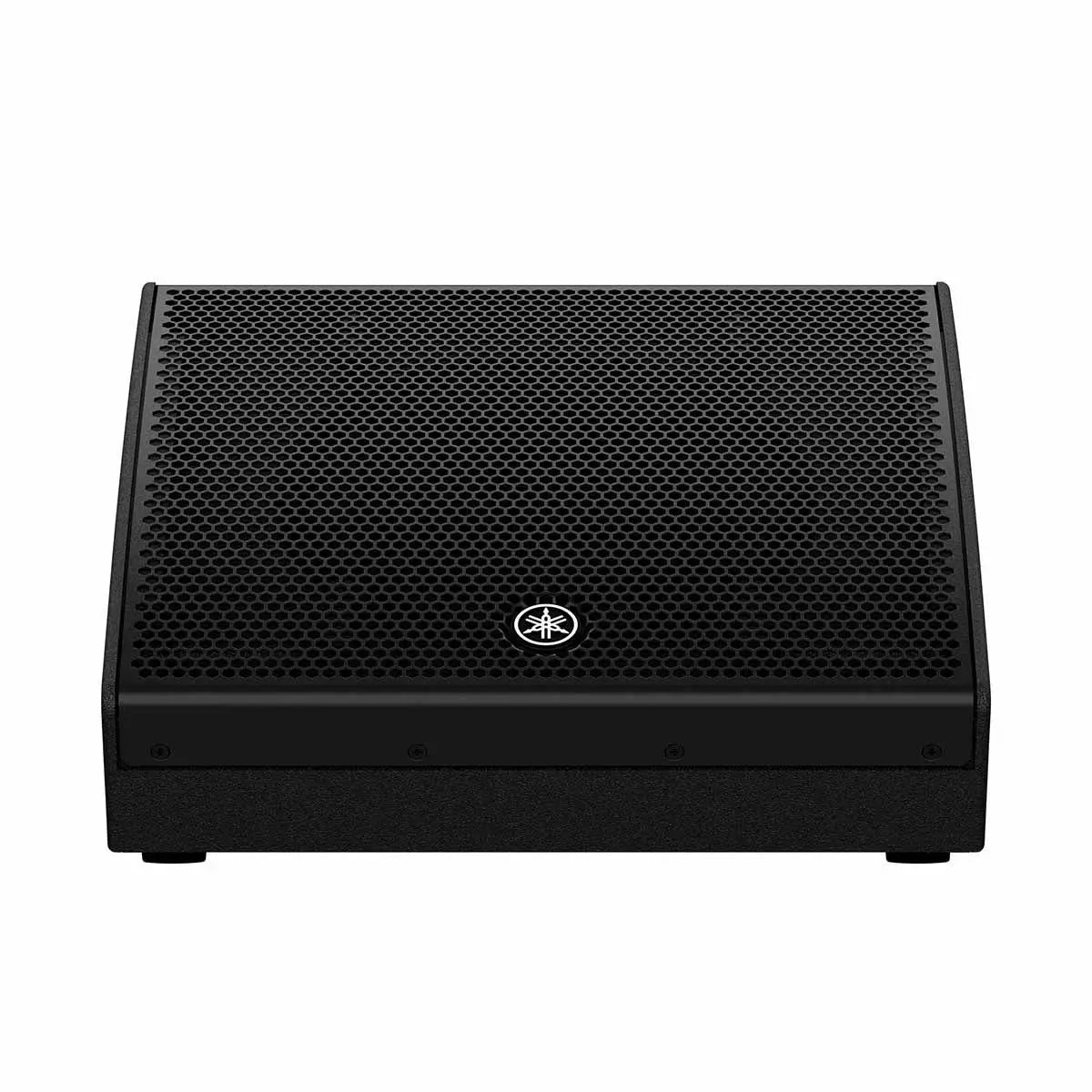

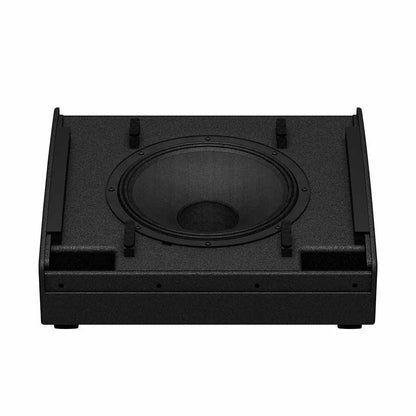

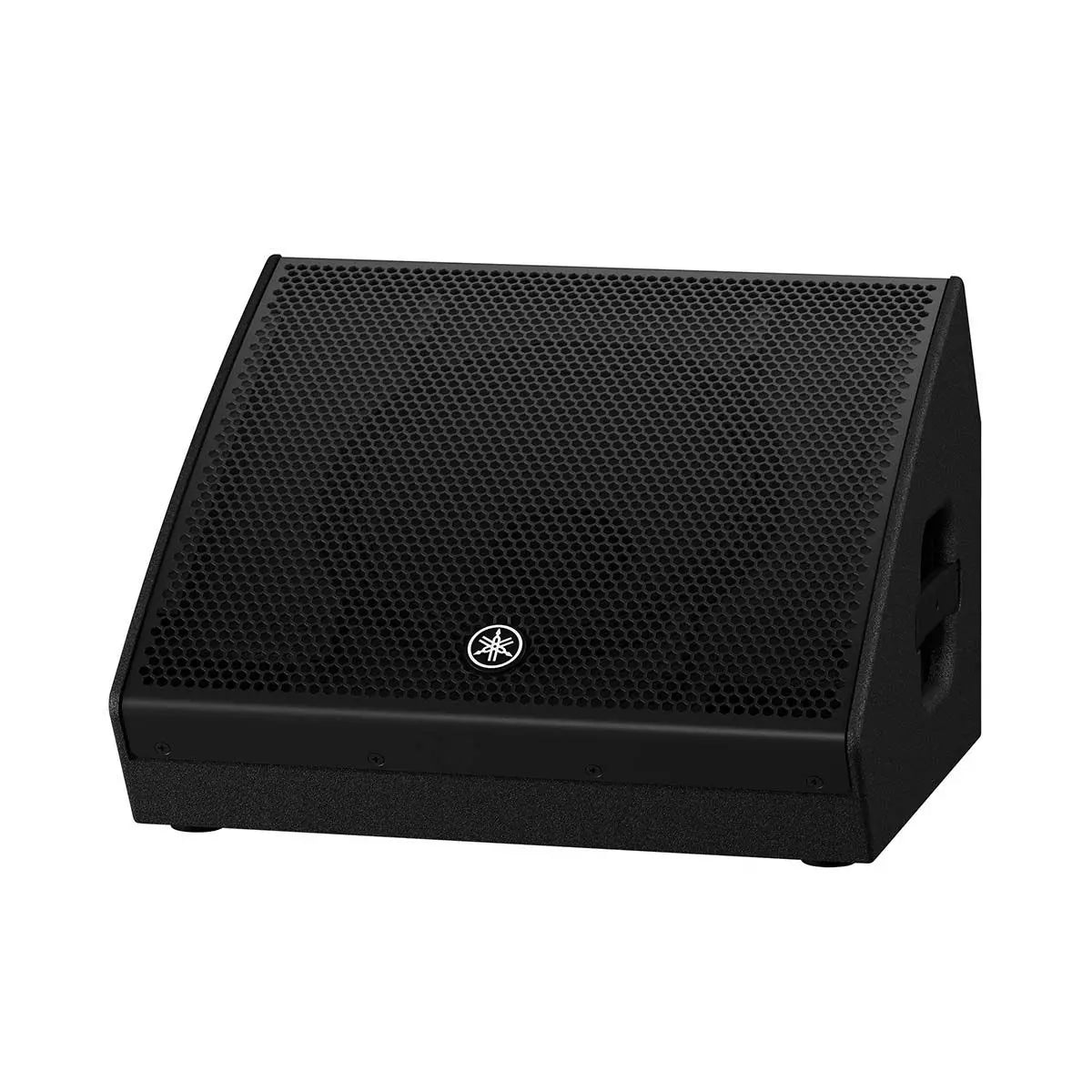

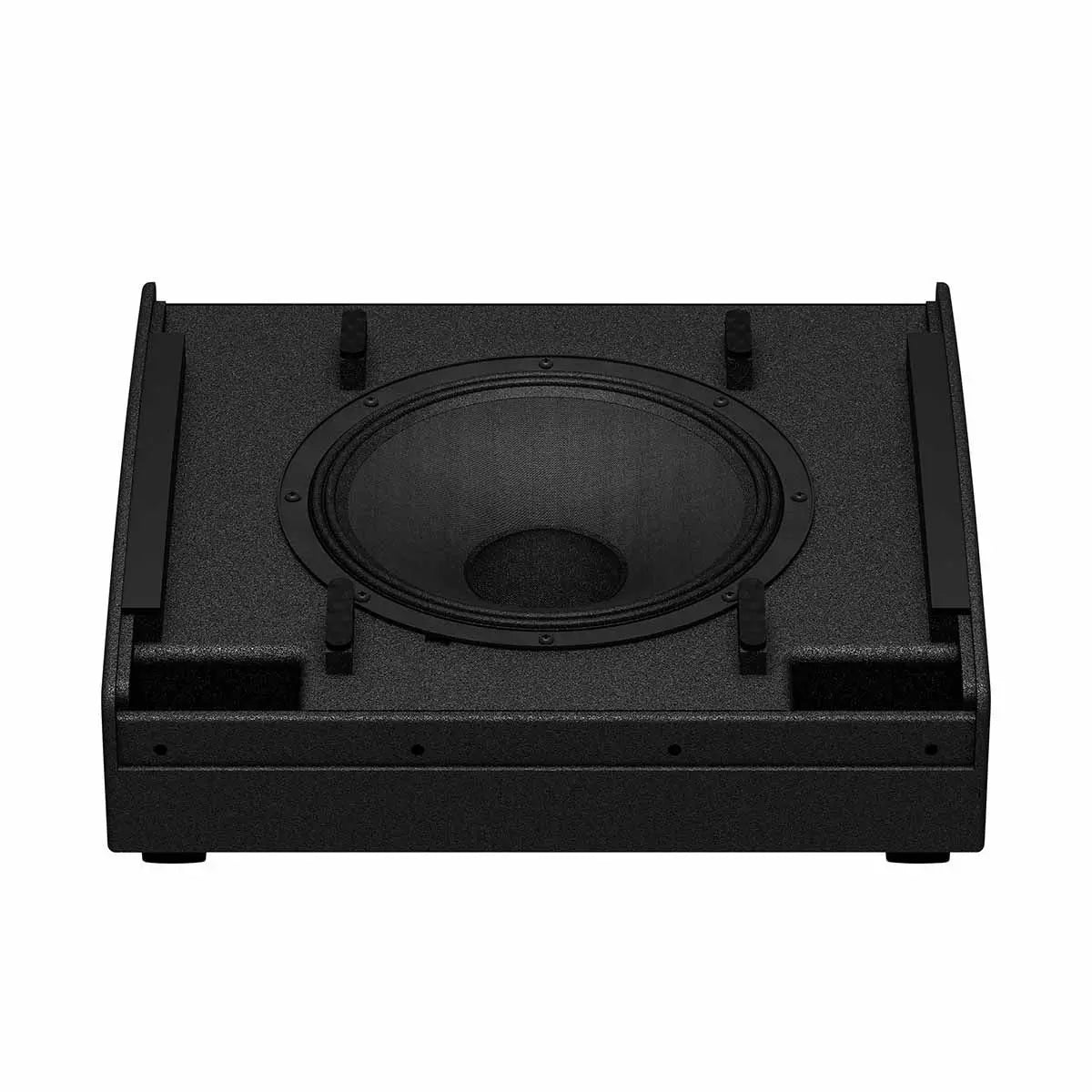

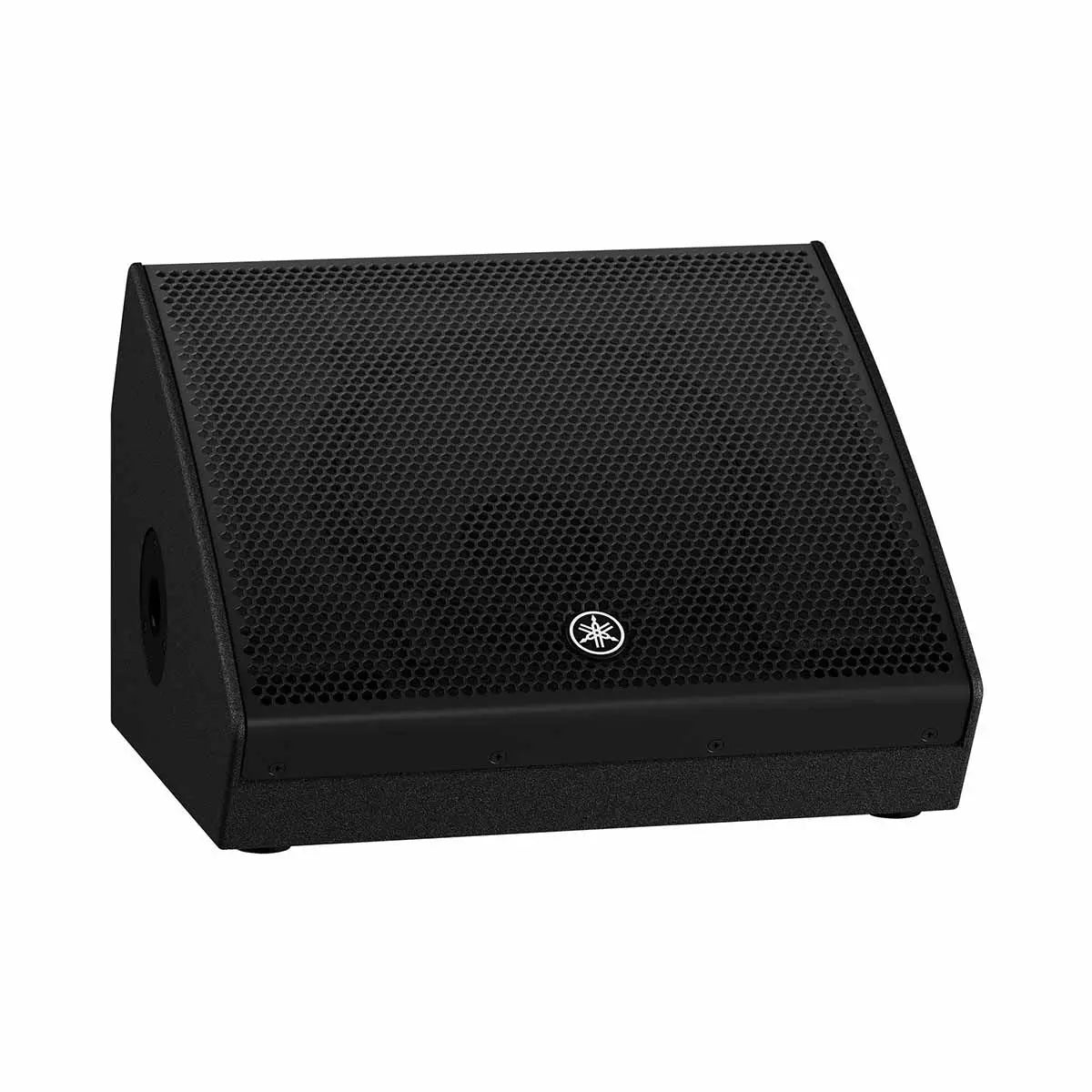

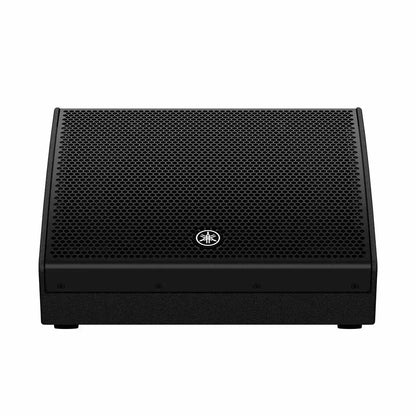

Yamaha DHR12M — 2-Way Coaxial 12" Powered Floor Monitor

The DHR12M is a 2-way bi-amp powered loudspeaker featuring a 12-inch woofer and a 1.75-inch HF driver in a space-saving coaxial configuration — purpose-built for stage monitoring. Combining a 1000W class-D amplifier and high-performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR12M delivers best-in-class sound quality and durability at this price point.

Key Features

• Coaxial driver delivers precise, smooth phase and frequency response — ideal for monitoring applications
• Plywood cabinet construction for clear sound with minimal vibration and long-term durability
• Compact, low-profile enclosure with polyurea coating for a robust, scratch-resistant surface
• Pole socket for stand mounting
• Proprietary FIR-X™ tuning with FIR filtering and corrective EQ to minimize phase distortion
• Free shipping to the Continental U.S.

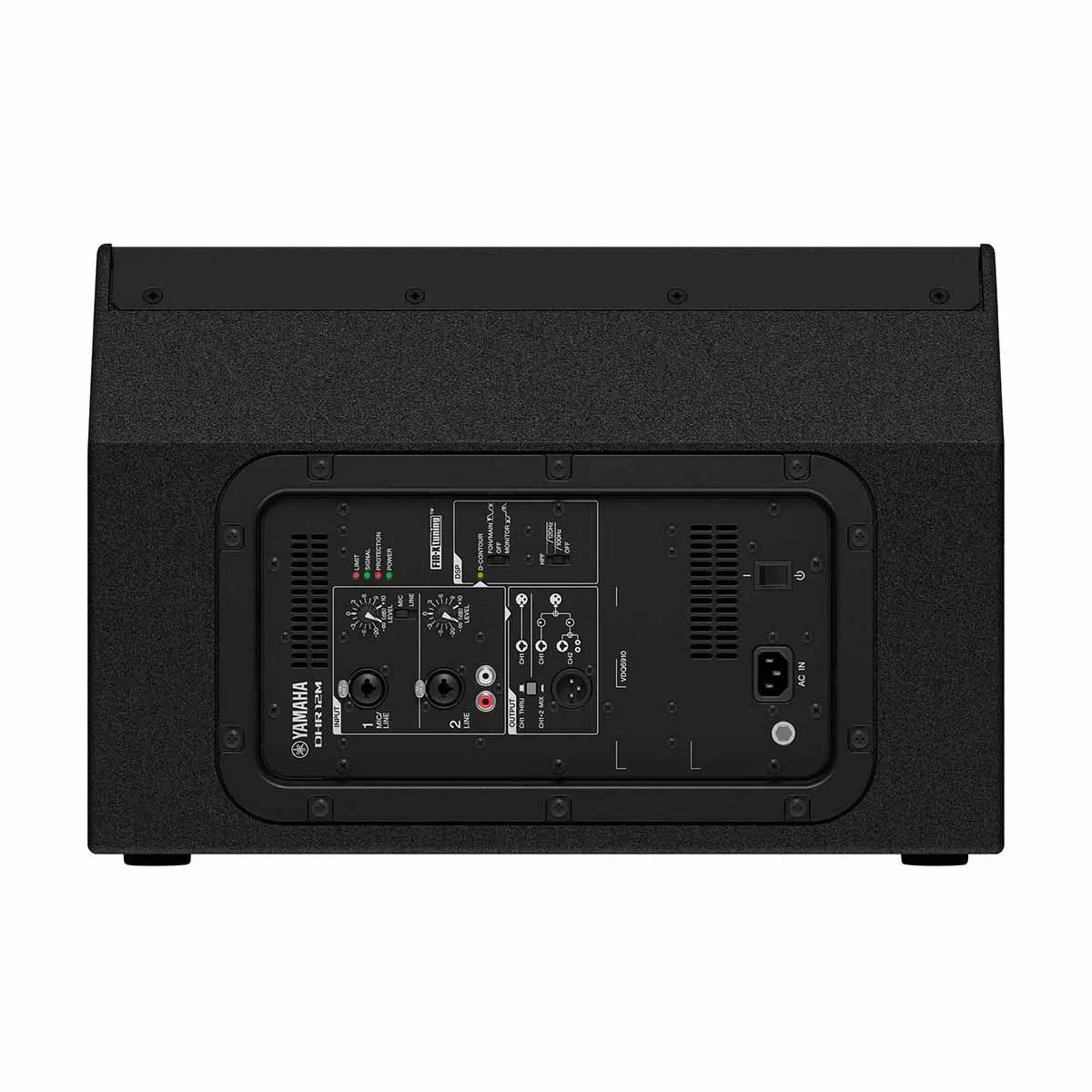

Mixing and Sound Control

The onboard two-channel mixer accepts microphone or line-level signals on Input 1 and line-level signals on Input 2. Both channels have XLR/TRS combo connectors, and Input 2 also provides two unbalanced RCA connectors. The XLR output can pass Channel 1 through or send a mix of Channels 1 and 2.

D-CONTOUR offers FOH/MAIN, MONITOR, and OFF settings. A switchable high-pass filter offers OFF, 100Hz, and 120Hz settings with a 24dB/octave slope. FIR-X tuning uses a 1.8kHz linear-phase FIR crossover.
