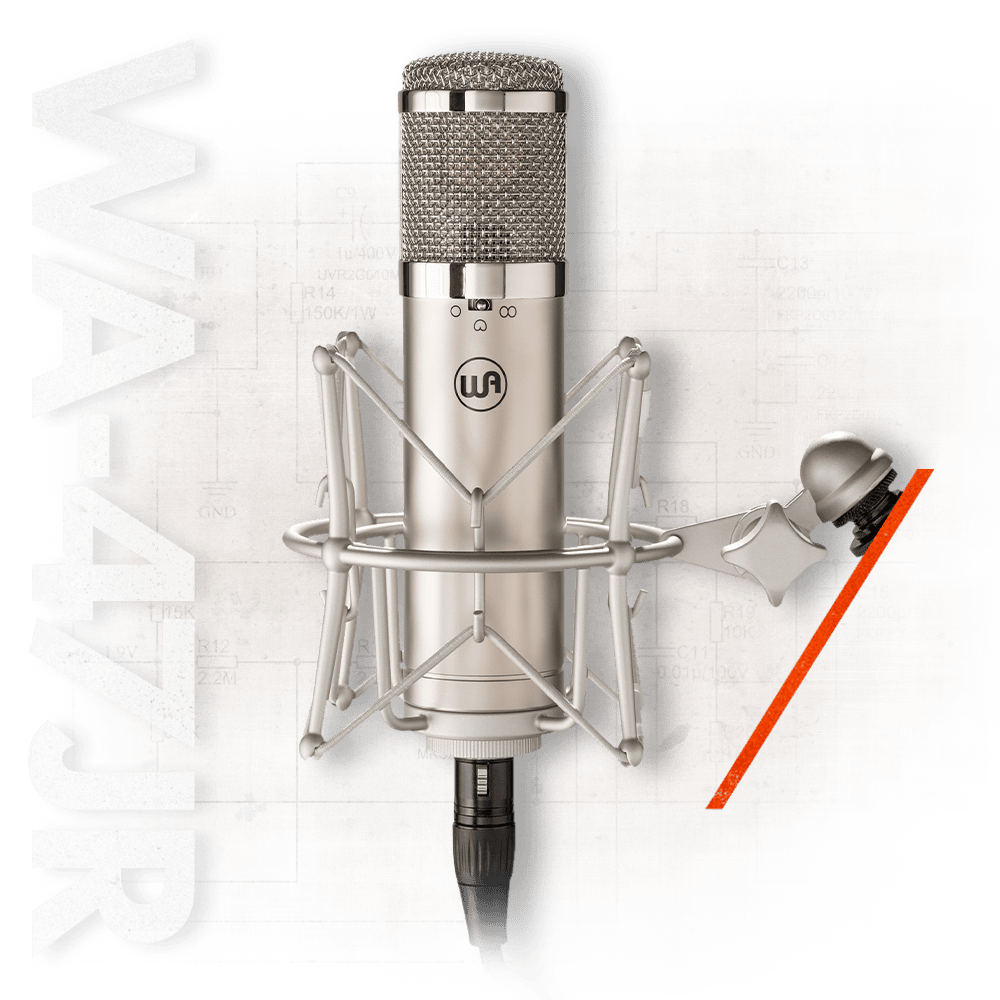

Warm Audio WA-47jr transformerless FET condenser microphone

Warm Audio WA-47jr transformerless FET condenser microphone

$299.00 USD
$299.00 USD
Sale Sold out

  1. CONTEMPORARY VERSION OF A CLASSIC SOUND

    The WA-47jr series is a contemporary version of the legendary 47-style studio microphone that delivers rich analog tone with modern circuitry. WA-47jr & WA-47jr SE mics are equally at home in a project studio or in a world-class recording facility. Each features a vintage-correct reproduction of the lauded K47-style capsule, the same capsule in the flagship WA-47 tube mic. The capsule has the same tonal character known for capturing legendary recordings by classic and modern artists including The Beatles, Billie Eilish, Harry Styles, Adele and many more.

  2. DELIVERING A LEGACY OF STUDIO SOUND

    Combining possibly the greatest classic condenser capsule of all time with our carefully crafted, modern circuits, the WA-47jr mics deliver that analog warmth and pristine detail for capturing everything from vocals, to toms, to acoustic guitar. Available with onboard controls and multiple patterns or a streamlined cardioid-only design, the WA-47jr mics all have a discrete signal path, exceptional dynamic range, and ultra-low self-noise. The sound profile of the WA-47jr series blends past and present to achieve the ideal blend of vintage tone and modern performance.

  3. APPLICATIONS

    *Big bottom, midrange depth, and smooth high end.

    WHAT YOU NEED TO KNOW

    The WA-47jr series is built around the same vintage-accurate K47-style capsule in our flagship WA-47 mic. The WA-47jr offers additional controls and multiple polar patterns, while the WA-47jr SE delivers a streamlined cardioid-only design of this classic tone.

    [object Object]

    The WA-47jr series uses a true reproduction of the K47-style capsule in the original 47 tube mic - the same capsule used in our award-winning flagship WA-47 tube mic. Perfect for adding instant vintage-vibe to any recording.

    [object Object]

    WA-47jr (only) features three polar patterns (cardioid, omni, and figure-8) give you a variety of options to choose how you want to capture stereo sounds and reject noise. WA-47jr SE features a fixed cardioid polar pattern for intimate, focused recordings. Perfect for vocals and lead instruments.

    [object Object]

    WA-47jr (only) features a selectable -10dB pad that allows the WA-47jr to handle SPLs up to 157dB, making capturing loud sources easy.

    [object Object]

    WA-47jr (only) features a switchable 70 Hz high pass filter making it easy to remove unruly bass noise from sources before you even hit record.



    TECHNICAL SPECIFICATIONS

    *

    PRODUCT DESCRIPTION & EXTERNAL SPECS

    • WA-47jr

    • Contemporary Version Of The Classic '47-Style Studio Mic

    • Large-Diaphragm FET Transformerless Condenser Microphone

    • Polar Patterns: Cardioid, Figure-8, & Omnidirectional

    • -10 dB Pad | 70 Hz High-Pass Filter

    • Weight: 1.1 Lbs | Diameter: 52mm | Length: 210mm

    • Includes: Shockmount, Hard Mount, Leather Storage Pouch

    • WA-47jr SE

    • Streamlined Version Of The Classic '47-Style Studio Mic

    • Large-Diaphragm FET Transformerless Condenser Microphone

    • Cardioid-Only Polar Pattern

    • Includes: Hard Mount, Leather Storage Pouch



    • 5-Year Warranty

    *

    COMPONENTS & INTERNAL SPECS

    • WA-47jr

    • Gold-Sputtered, Large-Diaphragm, Dual-Backplate, K47-Style Capsule

    • Capsule Makeup: Dual Large-Diaphragm, Single-Backplate, 6 Microns NOS Mylar (PET Film)

    • Fully Discrete Signal Path, Toshiba FET’s, Wima Film Capacitors, Panasonic Electrolytic Capacitors

    • WA-47jr SE

    • Gold-Sputtered, Large-Diaphragm, Single-Backplate, K47-Style Capsule

    • Fully Discrete Signal Path, Toshiba FET’s, Wima Film Capacitors



    *

    PERFORMANCE SPECS

    • WA-47jr

    • Self-Noise: 9dBA

    • Dynamic Range: 138dBA

    • Maximum SPL: 147/157dB (@1kHz 1kOhms 0.5% THD, 0/-10dB)

    • Frequency Range: 20 Hz~20 KHz

    • Sensitivity: 10mV/Pa Or -40dB

    • Output Impedance: 100 Ohms

    • Rated Load Impedance: ≥1kOhms

    • Equivalent Noise: 10dBA (IEC651)

    • WA-47jr SE

    • Self-Noise: 9dBA | Dynamic Range: 138dBA

    • Maximum SPL: 147 dB

    • Frequency Range: 20 Hz~20 KHz

    • Output Impedance: 100 Ohms

    • Sensitivity: -37dBV or 14mV/Pa



    POLAR PATTERNS

    CARDIOID

    Cardioid

    OMNI DIRECTIONAL

    Omni Directional

    BI-DIRECTIONAL (FIGURE 8)

    Bi-Directional (Figure 8)

    CARDIOID (WA-47JR SE)

    Cardioid (WA-47jr SE)
