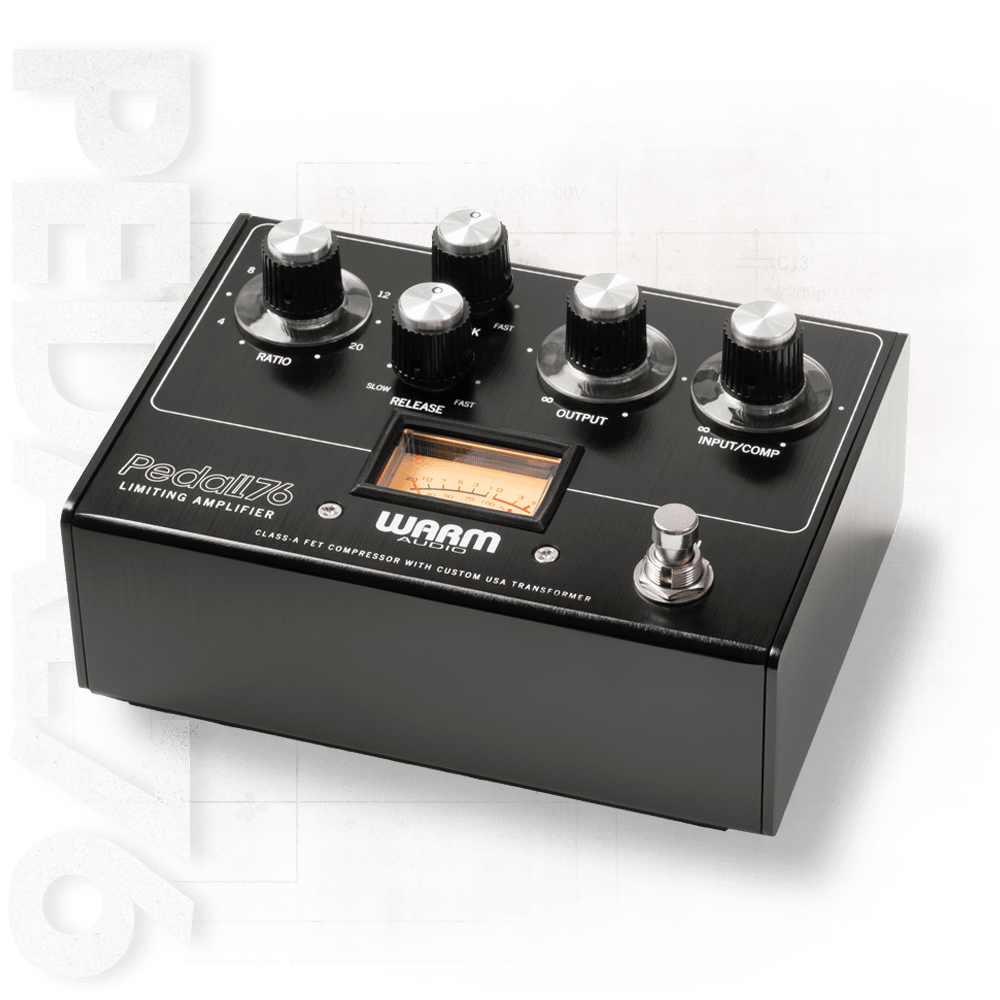

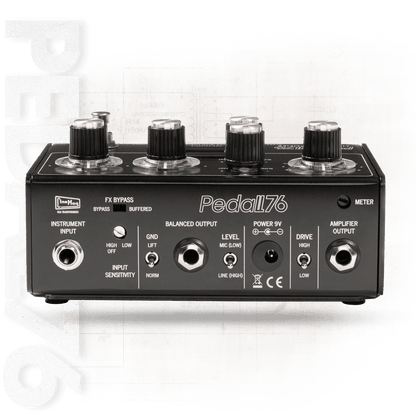

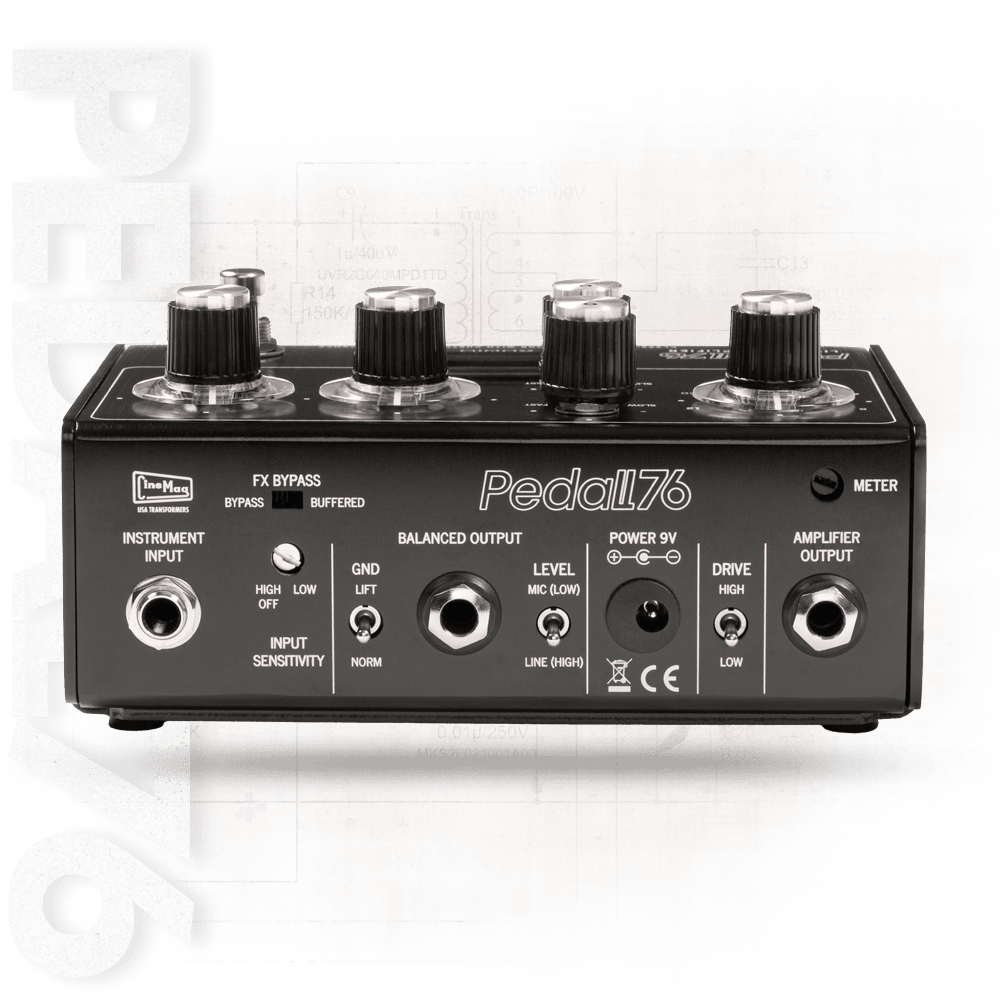

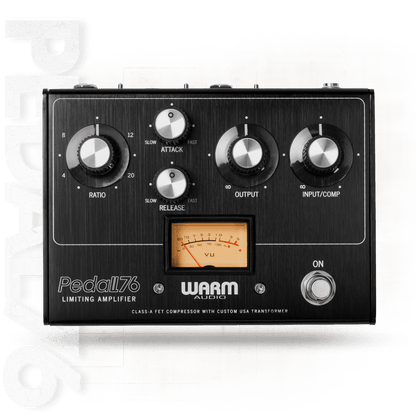

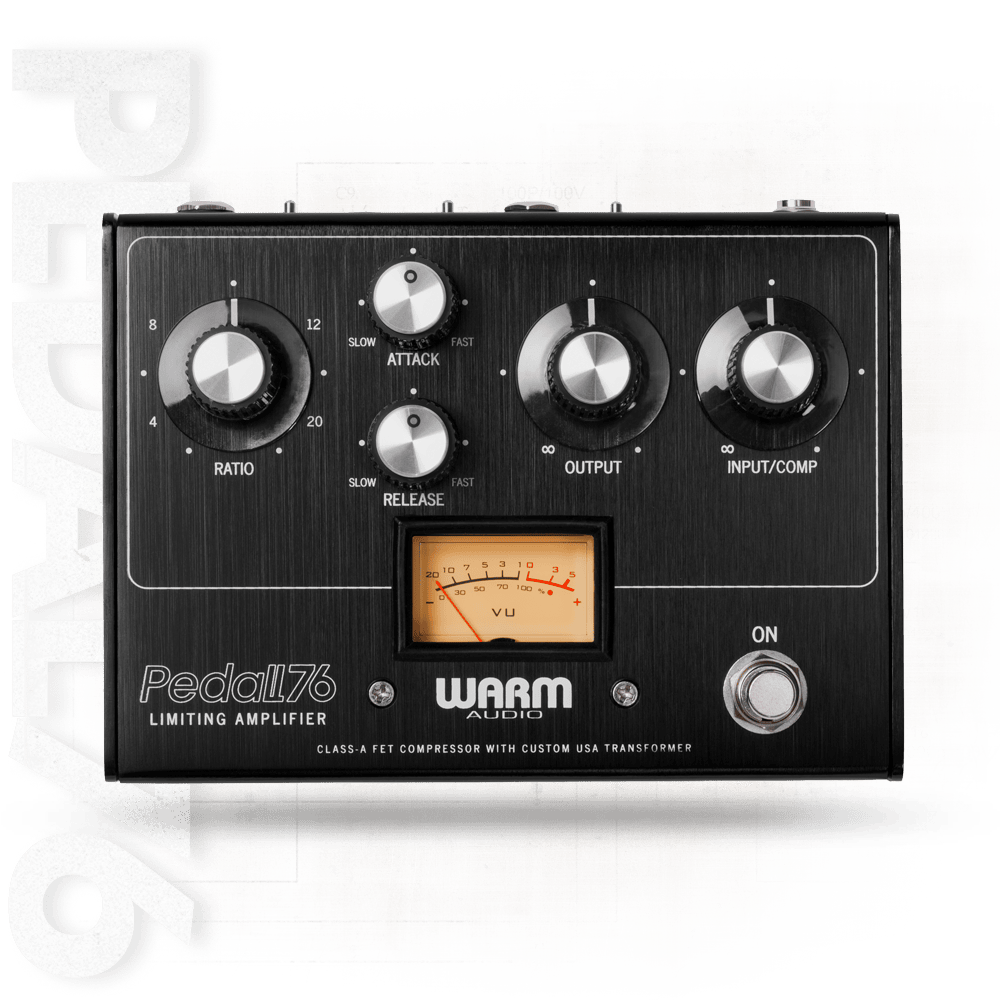

Warm Audio Pedal76 all-analog Transformer-Balanced FET compressor pedal

Warm Audio Pedal76 all-analog Transformer-Balanced FET compressor pedal

$279.00 USD
$279.00 USD
Sale Sold out

  1. CLASSIC STUDIO COMPRESSION RECREATED FOR YOUR PEDALBOARD

    Pedal76 accurately reproduces one of the fastest and most powerful studio compressors of all time, known for having ultra-fast attack and release and adding sweet analog tone to any source. Just like in the studio, Pedal76 has Attack & Release, Ratio, and Input controls, critical for taming unwanted changes in volume on stage. Backed by over 10 years of expertise delivering premium, award-winning studio compression with the Warm Audio WA76, the Pedal76 is capable of bringing out the wide range of legendary compression tones from subtle to hard-limiting as favored by celebrated artists such as Led Zeppelin, Pink Floyd, Periphery, Jack White and many more.

  2. STUDIO-QUALITY SOUND, STAGE-READY CONTROL

    To achieve authentic 76-style FET compression, Pedal76 is built with an all-analog circuit and premium components, including a custom CineMag USA transformer. Spec’d to duplicate the professional performance of the studio units, this transformer adds rich harmonic content, and, in high gain mode, a bit of audible overdrive reminiscent of the most prized studio originals. Pedal76 features gig-ready controls like an external switch for true/buffered bypass, ensuring the compressor plays nice in your rig. Switches for input sensitivity, ground/lift, pad and high/low gain modes (both for DI operation) provide added utility at gigs or in the studio. The separate (DI) out also sends a balanced signal to any mixer or live recording rig.

  3. APPLICATIONS

    *Smash any light playing and make transients stick out without losing low end.

    PRODUCT DESCRIPTION & EXTERNAL SPECS

    • All-Analog Transformer-Balanced FET Compressor Pedal

    • Classic 76-Style Compression Controls: Ratio, Attack, Release, Output, & Input

    • Additional Controls: Input Sensitivity, Ground/Lift, DI Output Pad, DI High/Low Gain With Level Boost On Balanced Output

    • External True Or Buffered Bypass Switch

    • Vintage-Style Amber VU Meter For Gain Reduction Indication

    • External Power Supply With 9V Battery Compartment. External Power Supply Leverages Internal Voltage Increase Via DC-DC Voltage Converter

    • Dimensions: 5.9” x 4.1” x 1.9” | Weight: 1.65 lbs



    • 5-Year Warranty

    *

    COMPONENTS & INTERNAL SPECS

    • Custom CineMag USA Output Transformer (Engaged With External Power)

    • Ultra Low-Noise With 100% Discrete Analog Signal Path

    • When Using External Power, Pedal76 Requires 125mA
