Strymon Zuma High Current Pedal Power Supply

Strymon Zuma High Current Pedal Power Supply

Power a demanding pedalboard with nine individually isolated outputs in a rugged, compact enclosure. Zuma combines high-current capacity with dual-stage isolation, dedicated regulation, and filtering designed to reduce power-related noise.

Connect your compatible pedals with the included cables, use the two selectable-voltage outputs for pedals that require them, and expand with an Ojai or Ojai R30 as your rig grows.

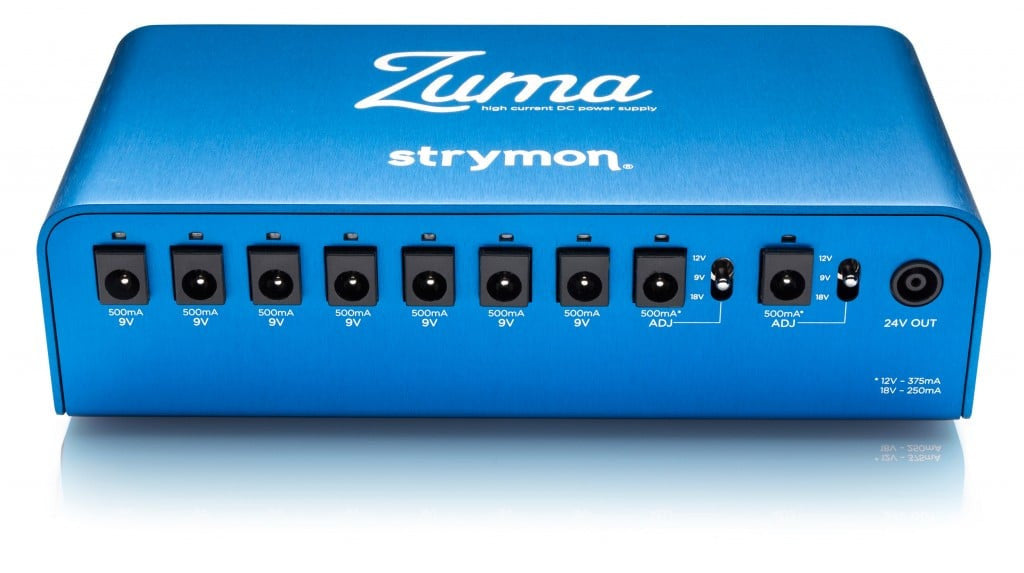

Nine isolated outputs

• Outputs 1–7: 9V DC, up to 500 mA per output.
• Outputs 8–9: selectable 9V, 12V, or 18V DC.
• Selectable-output current limits: 500 mA at 9V, 375 mA at 12V, and 250 mA at 18V.
• Maximum power delivery: 48W.
• Each output has its own custom transformer and dedicated regulator.
• Dual-stage isolation, optically isolated feedback, pre-regulated outputs, and multistage filtering.

Match each pedal’s required voltage, polarity, connector, and current draw before connecting it. Do not select 12V or 18V for a pedal unless its manufacturer explicitly supports that voltage.

Expandable system

Use the 24V OUT jack to connect a Strymon Ojai or Ojai R30, sold separately, for additional pedal outputs. Expansion capacity depends on the power requirements of the connected pedals.

Included cables

• Nine pedal power cables with 5.5 mm × 2.1 mm barrel connectors, center-negative polarity, and right-angle to straight connectors.

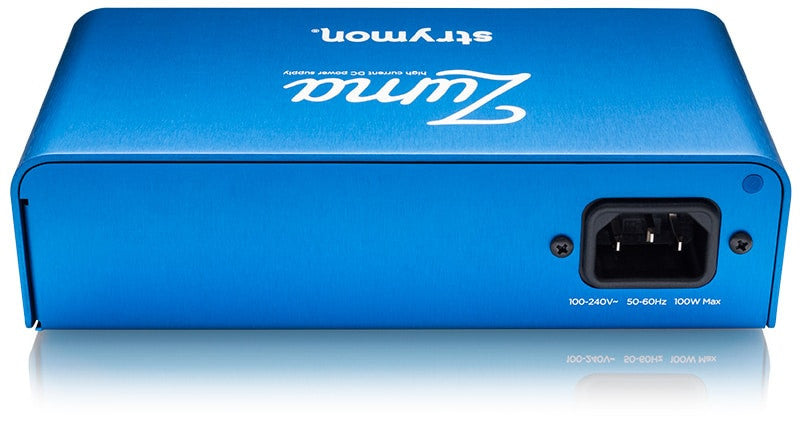

• Detachable IEC power cable.

Touring and mounting

• Automatic worldwide power compatibility with the appropriate regional IEC cable.
• Energy-efficient design.
• Lightweight, rugged anodized midnight blue aluminum chassis.
• Fits under most pedalboards.
• Can be mounted with Dual Lock; the Zuma Mounting Kit is available separately for compatible Pedaltrain boards.
• Designed and built in the USA.

Dimensions

Zuma unit dimensions: 6.8 × 3.3 × 1.8 inches (173 × 84 × 46 mm). These are product dimensions, not packed shipping dimensions.
