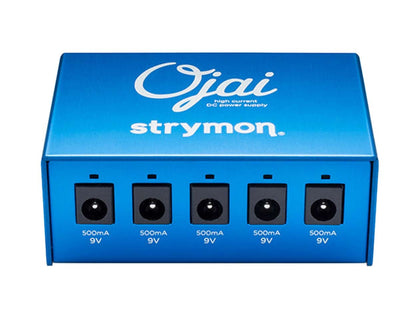

Strymon Ojai Compact Pedal Power Supply

Strymon Ojai Compact Pedal Power Supply

Give your pedalboard clean, consistent power without taking up unnecessary space. Ojai combines five individually isolated, high-current outputs with a compact aluminum enclosure and an expandable design for a growing rig.

Connect your compatible pedals with the included cables, mount the compact unit above or below your board, and add another Ojai when you need more outputs.

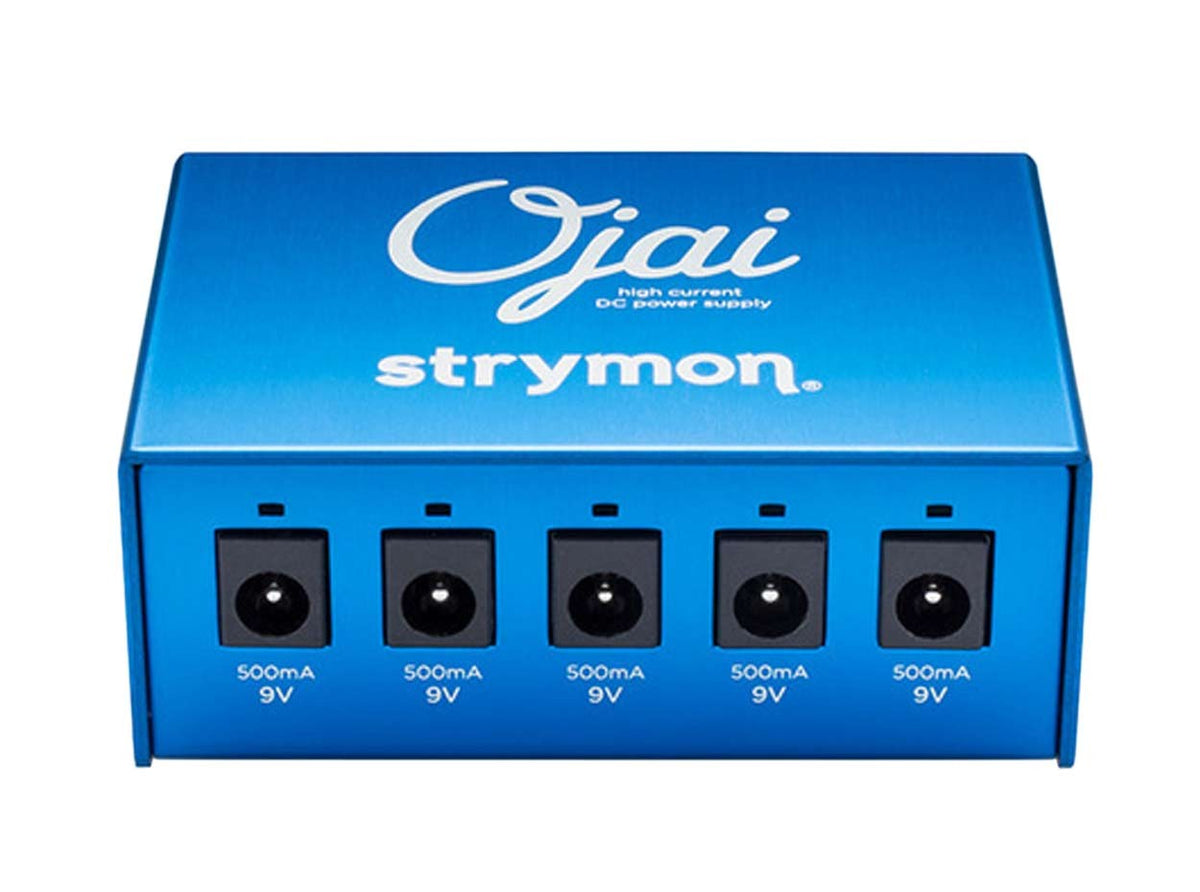

Five isolated outputs

• Five 9V DC outputs with center-negative polarity.
• Each output provides up to 500 mA.
• Each channel has its own custom transformer and dedicated regulator.
• Dual-stage isolation separates the outputs from the 24V supply and the supply from AC input power.
• Optically isolated feedback, pre-regulation, and multistage filtering help keep power-related noise out of your signal.

Expandable pedalboard power

The 24V Thru jack connects to additional Ojai units, sold separately. Ojai can also add five outputs to a Strymon Zuma system, sold separately. The number of linked units and pedals supported depends on the total current draw of the connected pedals.

Check each pedal’s voltage, polarity, connector size, and current requirements before connecting it. Ojai’s five pedal outputs are 9V DC, center-negative, up to 500 mA each.

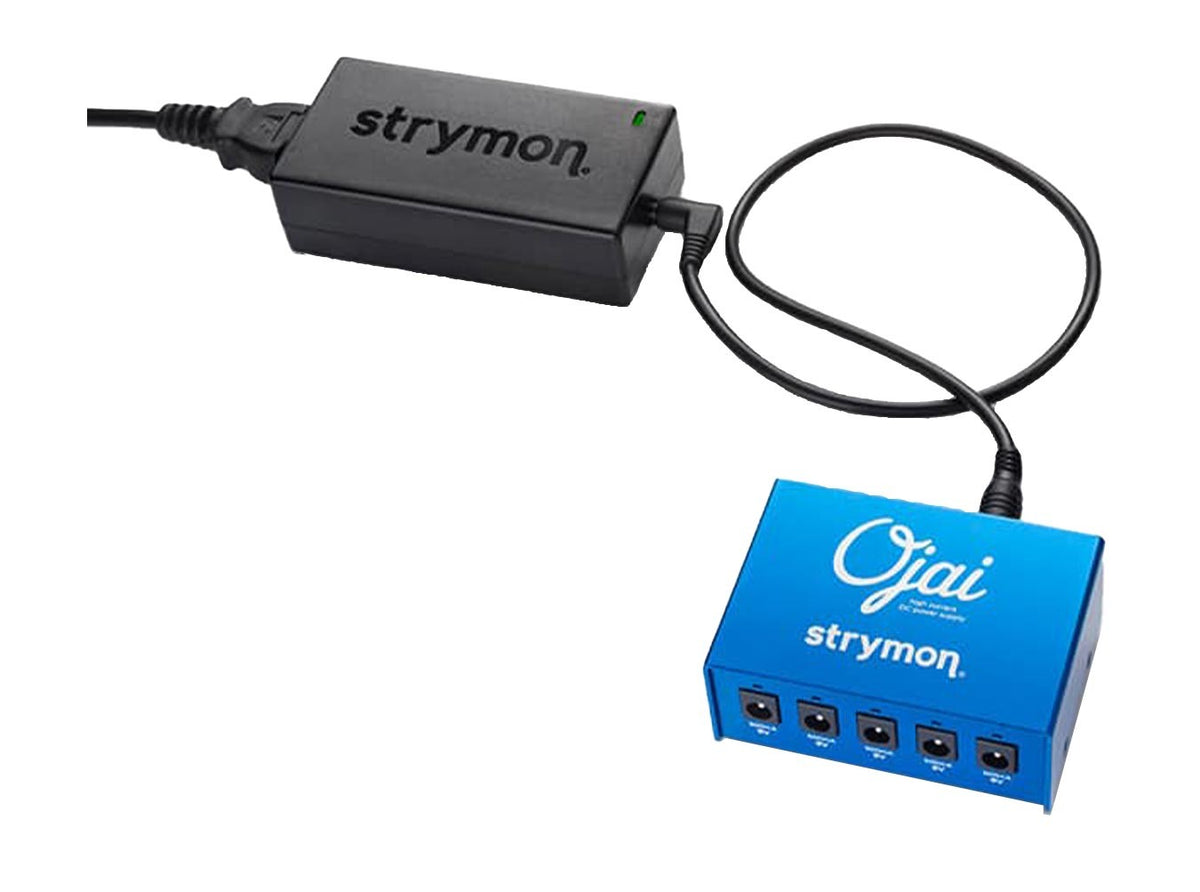

Included with the standard Ojai package

• Ojai power supply.
• Five pedal power cables with 5.5 mm × 2.1 mm barrel connectors, right-angle to straight.
• PS-124 24V power adapter.
• EIAJ-05 power adapter cable.
• IEC cable.

This listing is for the standard Ojai package with power adapter, not the Ojai Expansion Kit or Ojai R30.

Touring and mounting

• Automatic worldwide power compatibility when used with the appropriate IEC cable.
• Energy-efficient power design.
• Lightweight, rugged anodized midnight blue aluminum chassis.
• Can be mounted to the top or bottom of most pedalboards using hook-and-loop fastener or Dual Lock.
• Designed and built in the USA.

Manufacturer dimensions and weights

• Ojai unit: 3.2 × 2.3 × 1.3 inches (81 × 58 × 33 mm).
• Ojai unit weight: 4.7 oz (133 g).
• Power adapter: 4.2 × 2.15 × 1.25 inches (107 × 55 × 32 mm).
• Power adapter weight: 4.7 oz (133 g).

These are individual component measurements, not the complete packaged shipping weight or packed dimensions.

Explore Strymon’s Ojai installation guidance, specifications, and product resources.
