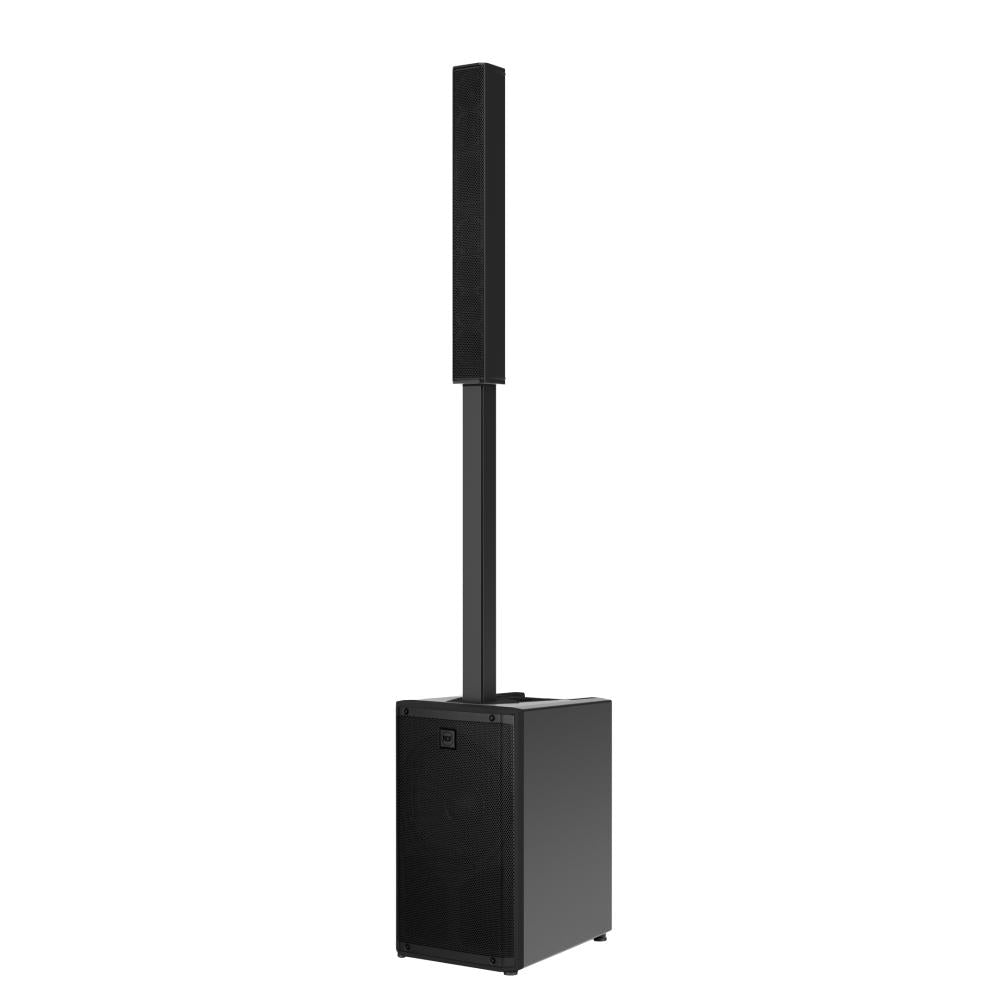

RCF EVOX J9 Active 3-way Column Array Black open box
RCF EVOX J9 Active 3-way Column Array Black open box
Seeking a full-featured live sound solution in a compact, easy-to-set-up form factor? RCF’s EVOX J9 is an active 3-way PA system that delivers stunning sound performance across nearly the entire frequency spectrum. The EVOX J9 features a dual-channel 2,100-watt Class-D amplifier that powers a single 12-inch RCF precision low-frequency woofer in the lower bass reflex enclosure, plus six 3-inch full-range Neo transducers and a 1.75-inch Neo compression driver in the upper tower. This impressive setup is ideal for solo performers, small ensembles, DJs, and more to project a beautifully musical, highly accurate reproduction of their sound to the entire audience at large parties or corporate events — all with a single piece of gear. Add in the high-level DSP section (including RCF’s cutting-edge FiRPHASE technology), the 120-degree x 40-degree true resistive waveguide, and four onboard EQ presets, and the EVOX J9 might be the all-in-one solution for your live sound needs!
Cutting-edge FiRPHASE technology
To ensure the highest possible sound quality, the EVOX J9 utilizes impeccable waveguide alignment and a full-range transducer array, all while harnessing the power of FIR (Finite Impulse Response), allowing the entire system to respond as a single, unified source. It’s a highly advanced system that delivers exceptionally coherent sound to your entire audience, with minimal phase distortion, minimal latency, and maximum impact. Boasting astounding clarity, optimal transparency, and picture-perfect imaging, RCF’s FiRPHASE technology is all but guaranteed to elevate and refine the sound of your system.
Robust 2,100-watt Class D amplifier and EQ presets
The RCF EVOX J99 features a robust dual-channel 2,100-watt Class D amplifier, fine-tuned to deliver massive sound pressure levels with an exceptional attack, natural transients, and seemingly bottomless low end. This setup is further bolstered by the EVOX J9's bass-reflex enclosure, 130dB max SPL output, and four integrated EQ presets that deliver streamlined solutions for any setting. First, the Live preset provides exceptional mix balance, while the Linear preset gives you a flat, neutral EQ curve. Additionally, the Club preset extends highs and lows to really get the party started, while the Voice preset prioritizes vocal and dialogue intelligibility.
Effortless stage setup
Apart from its world-renowned RCF sound, Sweetwater’s live sound pros find that the EVOX J9’s greatest asset is its sheer ease of use. The triple threat of a 12-inch woofer at the base with the integrated tower containing six 3-inch full-range Neo transducers and a 1.75-inch Neo compression driver cuts down on setup time (and van space!) since the tower mounts directly to the top of the bass reflex enclosure. Simply screw the pole into the top of the sub, plug in your powerCON TRUE1 cable, and the EVOX J9 is ready to go!
RCF EVOX J9 Features:
- All-in-one live sound solution for solo performers, bands, DJs, and more, ideal for large parties, weddings, corporate events, or other similar settings

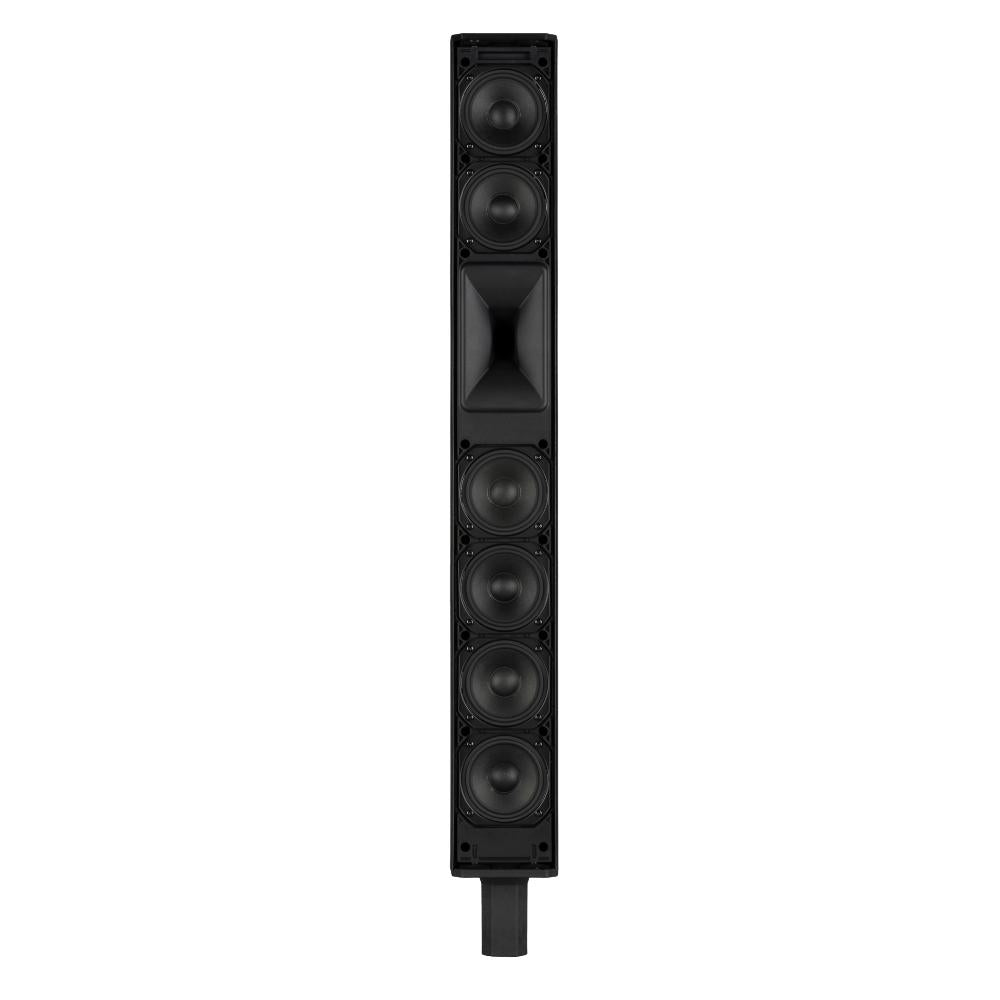

- Stunningly clear sounds from 40Hz–20kHz delivered via 1 x 12-in. RCF precision LF woofer in a bass reflex enclosure, 6 x 3-in. full-range Neo transducers, and 1 x 1.75-in. Neo compression driver
- 2,100W Class D dual-channel amplifier puts out up to 130dB max SPL
- FiRPHASE technology all but eliminates phase distortion and latency, while 120° x 40° True Resistive Waveguide ensures wide and consistent coverage
- 4 onboard EQ presets (Live, Linear, Club, and Voice) provide immediate, effective sound-shaping solutions for virtually any environment
- Incredibly easy to set up — screw the tower’s pole into the top of the bass enclosure, set your height, plug in, and play
Tech Specs
- Type:Portable Column Array
- Speaker Drivers:1 x 12" LF, 6 x 3" HF
- Total Power:2100W Class-D
- Maximum Peak SPL:130dB
- Horizontal Coverage Angle:120°
- Vertical Coverage Angle:40°
- Enclosure Material:Composite Cabinet w/Aluminum Stand Mound
- Mounting Options:Floor
- Manufacturer Part Number:EVOX J9
