Neural DSP Quad Cortex Quad-Core Digital Effects Modeler/Profiling Floorboard

The Neural DSP Quad Cortex is the most powerful floor modeler on the planet, fusing high-precision studio tones with real-world gigging flexibility. Powered by a 2GHz Quad-Core SHARC DSP and Neural's proven sound-modeling technology, it delivers an unmatched combination of amp captures, effects, and I/O in a slim, tour-grade floorboard.

Neural Capture Technology

Create incredibly accurate digital replicas of any amp, cab, or drive pedal using machine learning — on-device, no computer required. Neural Capture preserves sag, saturation, breakup, and compression exactly as your ear hears it. Captures can be saved as full rigs or individual blocks and combined freely in the signal chain.

Preloaded Content

• 50+ amp models including Double RVB Normal, British 2203, California Rectifier Orange, Bass Flip-Top Ch 66, and more
• 70+ effects: 12 reverbs, 5 delays, 9 modulation, 7 pitch, 11 wah/envelope
• 1,000+ preloaded impulse responses with third-party IR support
• Built-in looper: up to 4 min 44 sec, with half-speed, reverse, and quantize

Interface & Controls

• 7" full-color multi-touch display — swipe, tap, and drag to navigate
• 11 dual-function stainless steel rotary footswitches — twist like knobs, stomp like switches
• 3 operation modes: Stomp, Scene, and Preset
• 10 set lists × 256 presets = 2,560 total user presets
• Dedicated tuner/tap tempo footswitch

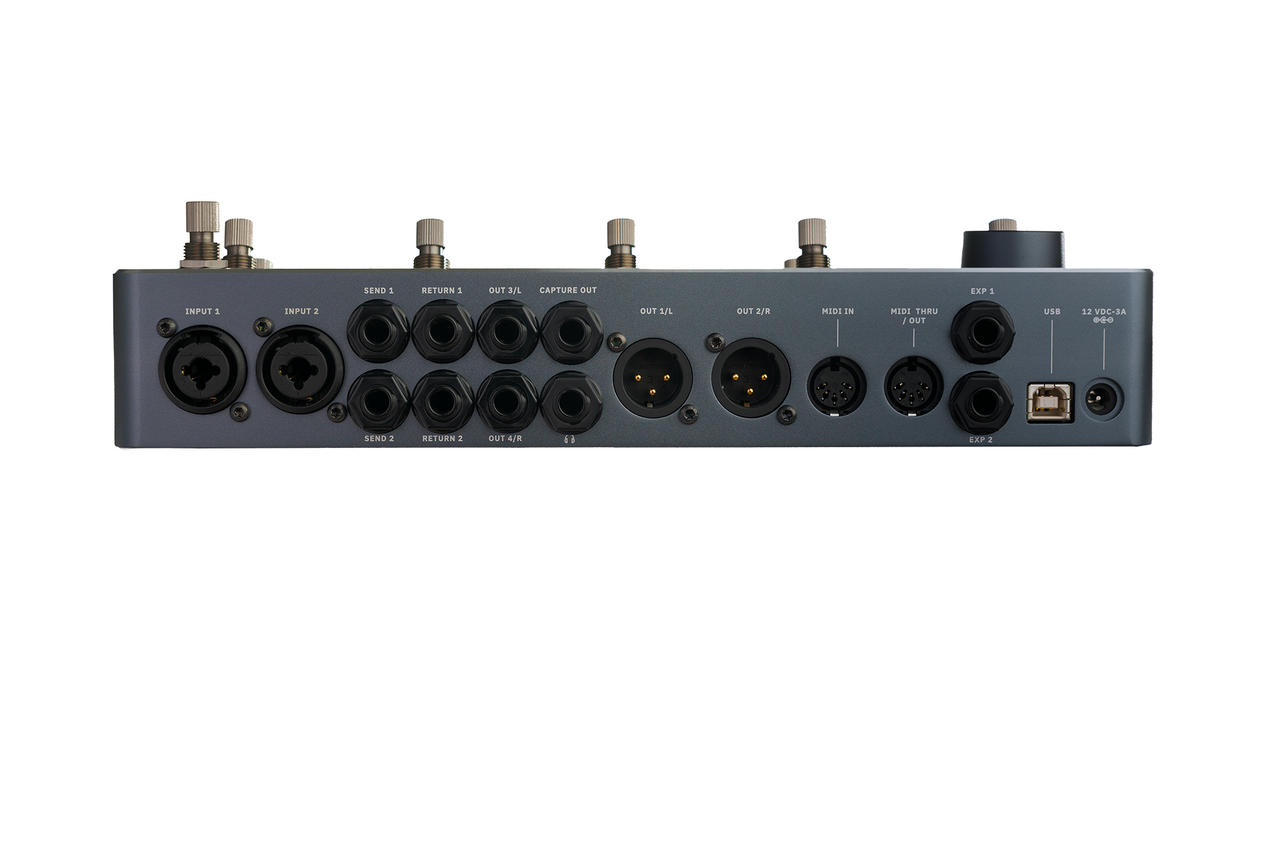

I/O

• 2 × XLR/1/4" combo inputs (instrument/mic, phantom power, variable impedance)
• 2 × 1/4" return inputs (effects loops)
• 2 × XLR balanced outputs
• 2 × 1/4" TRS balanced outputs
• 2 × 1/4" send outputs (effects loops)
• 2 × 1/4" expression inputs
• 1 × 1/4" capture signal output
• 1 × 1/4" headphone output
• MIDI In / Out/Thru + MIDI over USB
• USB Type-B — audio interface + MIDI (no additional interface required)

Connectivity & Software

• Built-in Wi-Fi — wireless preset sharing, OTA firmware updates, cloud backups
• Neural Cortex Cloud app (iOS/Android) for browsing and downloading tones
• Cortex Control free desktop editor (Mac/Windows)

Construction

• Anodized aluminum chassis with laser-engraved graphics
• 1.8mm high-strength glass display shield

Tech Specs

• DSP: 2GHz Quad-Core SHARC
• Audio: 24-bit / 48kHz (Cirrus Logic codecs)
• Presets: 10 set lists × 256 presets
• Dimensions: 11.4" W × 7" D × 2" H
• Weight: 4.2 lbs
• Power: 12V DC (included)
