MAUI 28 G2 COMPACT COLUMN PA SYSTEM WITH MIXER AND BLUETOOTH BLACK
A complete sound system that you can carry together with your instrument: introducing the MAUI 28 G2. The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go! Setting up the complete system, which doubles as PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 28 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed with year-long experience in the design of the column systems as a user-friendly solution for medium sized gigs and fixed installations.
The MAUI 28 G2 is equipped with two 8" woofers, sixteen 3" full-range speakers and two 1" neodymium HF drivers. They are driven by a light Class-D power amplifier with an enormous 2,000 watts peak power and produce a grunty bass, balanced mids and precise and silky highs. The DynX® DSP technology from LD Systems provides a top-class performance every time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way crossover with run time correction.
The design of the MAUI 28 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion - Your audience hears you in the back row just as clearly as in the front.
With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth® Audio Streaming, you have full control over the system. Whether you are a singer-songwriter, solo entertainer, DJ or musician in a small band, you will be thrilled with the extraordinary sound and portability of the MAUI 28 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 28 G2 is a well thought out overall solution, down to the last details.
Product number: | LDMAUI28G2 |
---|---|
Product type: | PA Complete Systems |
Type: | active |
Colour: | Black |
Max. SPL (peak): | 126dB |
Frequency response: | 45 - 20000Hz |
Dispersion (H x V): | 120° x 20° |
Overall height: | 2059mm |
Weight: | 30.9kg |
Woofer characteristics | |
Low/mid driver dimensions: | 2 x 8" |
Woofer size: | 2 x 203mm |
Woofer magnet: | Ferrite |
Woofer brand: | Custom-made |
Woofer voice coil: | 2" |
Woofer voice coil (mm): | 50.8mm |
Cabinet construction: | vented |
Cabinet material: | 15 mm Plywood |
Cabinet surface: | texture paint |
Subwoofer width: | 370mm |
Subwoofer height: | 484mm |
Subwoofer depth: | 480mm |
Subwoofer weight: | 19.7kg |
Mid/Hi System | |
Midrange size: | 16 x 3" |
Midrange size: | 16 x 76.2mm |
Midrange magnet: | Ferrite |
Midrange brand: | Custom-made |
Midrange voice coil: | 1" |
Midrange voice coil: | 25.4mm |
Horn: | Waveguide |
Tweeter dimensions: | 2 x 1" |
Tweeter dimensions (mm): | 25.4mm |
Tweeter magnet: | Neodymium |
Tweeter brand: | Custom-made |
Tweeter voice coil: | 1" |
Tweeter voice coil (mm): | 25.4mm |
Loudspeaker inputs: | 1 |
Speaker input connections: | Custom-made multipin |
Cabinet construction mid/high: | Closed |
Mid/Hi system cabinet material: | aluminium |
Mid/Hi system cabinet surface: | HD coating |
Mid/Hi system width: | 96mm |
Mid/Hi system height: | 780 / 795mm |
Mid/Hi system depth: | 104mm |
Mid/Hi system weight: | 5.6 / 5.6kg |
Amplifier module (integrated in subwoofer) | |
Amplifier: | Class D |
Amplifier output system (RMS): | 1000W |
Amplifier output system (peak): | 2000W |
Protection circuits: | short circuit, thermal overload, Multiband limiter, DC protection |
Cooling: | Convection |
Operating Temperature: | 0 - 40°C |
Humidity Range: | 10% to 80%, (non-condensing) |

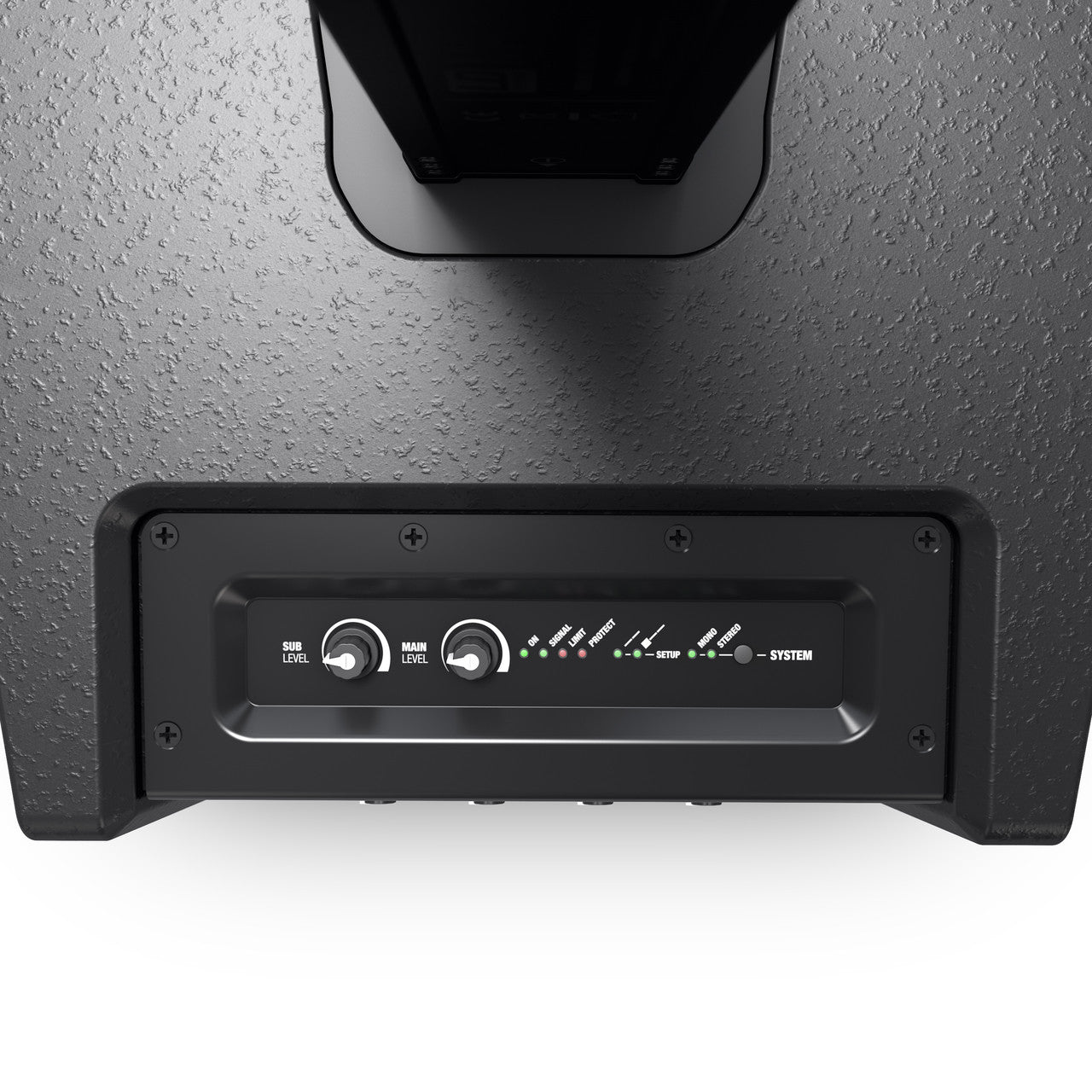

Controls: | MP3/Bluetooth Level, Bluetooth switch, Hi-Z Level, Main level, Power, Line level, Sub level, Mono/stereo switch |
Indicators: | On, Limit, Signal, Setup, Protect (protection circuit engaged), mono, stereo |
Power connector: | IEC power cable (included) |
Operating voltage: | 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching) |
Power consumption Off / On / Max.: | 0/11/600W |

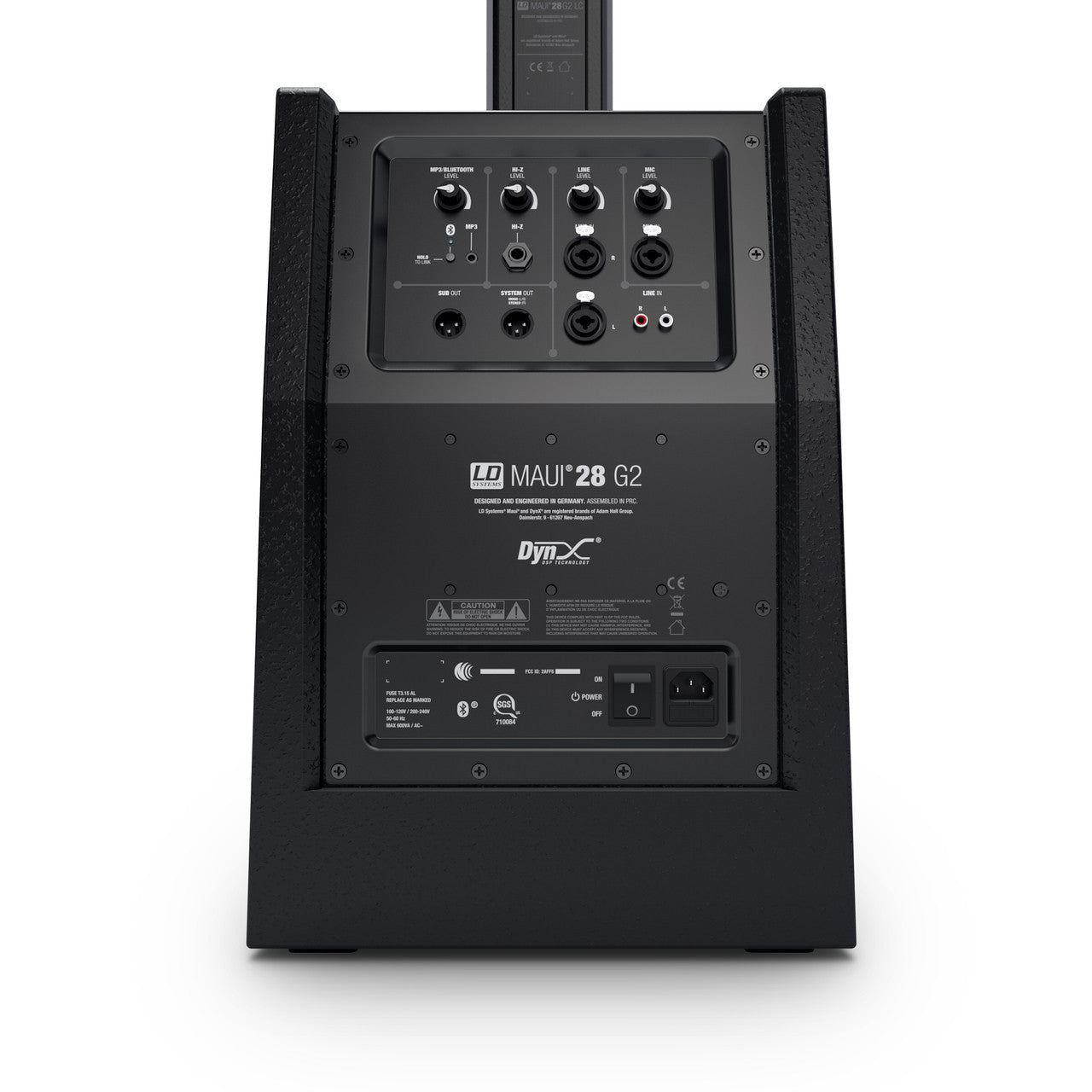

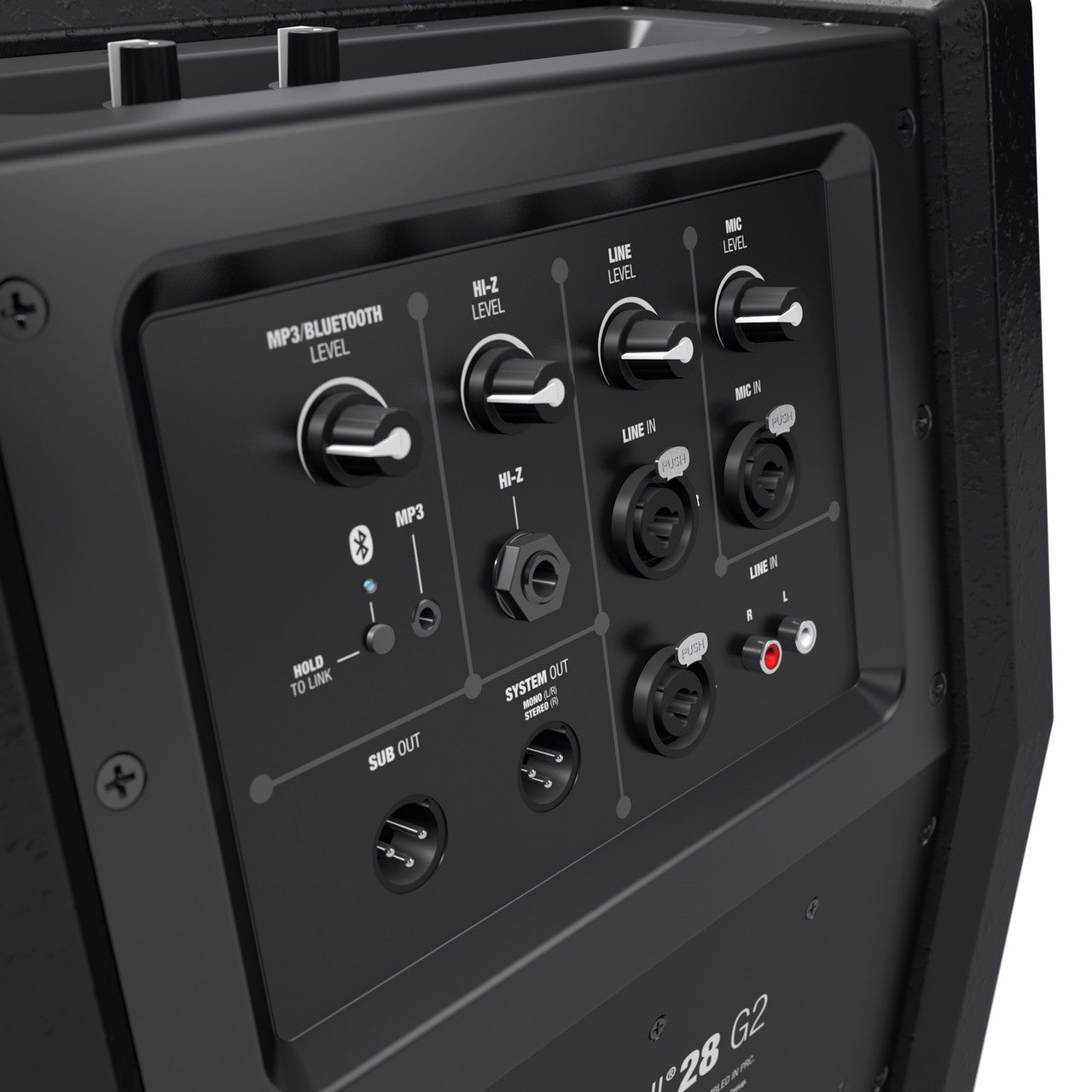

Line inputs: | 2 x stereo |
Line input connectors: | RCA, XLR/6.3 mm jack |
Line outputs: | 2 (1x System Out, 1x Sub Out) |
Line output connectors: | XLR |
Mic inputs: | 1, XLR/6.3 mm jack |
MP3 inputs: | 1 |
MP3 input connectors: | 3.5 mm jack |
Hi-Z inputs: | 1 |
Hi-Z input connectors: | 6.3 mm jack |
Loudspeaker outputs: | 1 |
Speaker output connections: | Custom-made multipin |
DSP characteristics | |
Bit depth AD/DA converter: | 24bit |
Internal sampling frequency: | 48kHz |
Signal/noise ratio: | 100dB |
