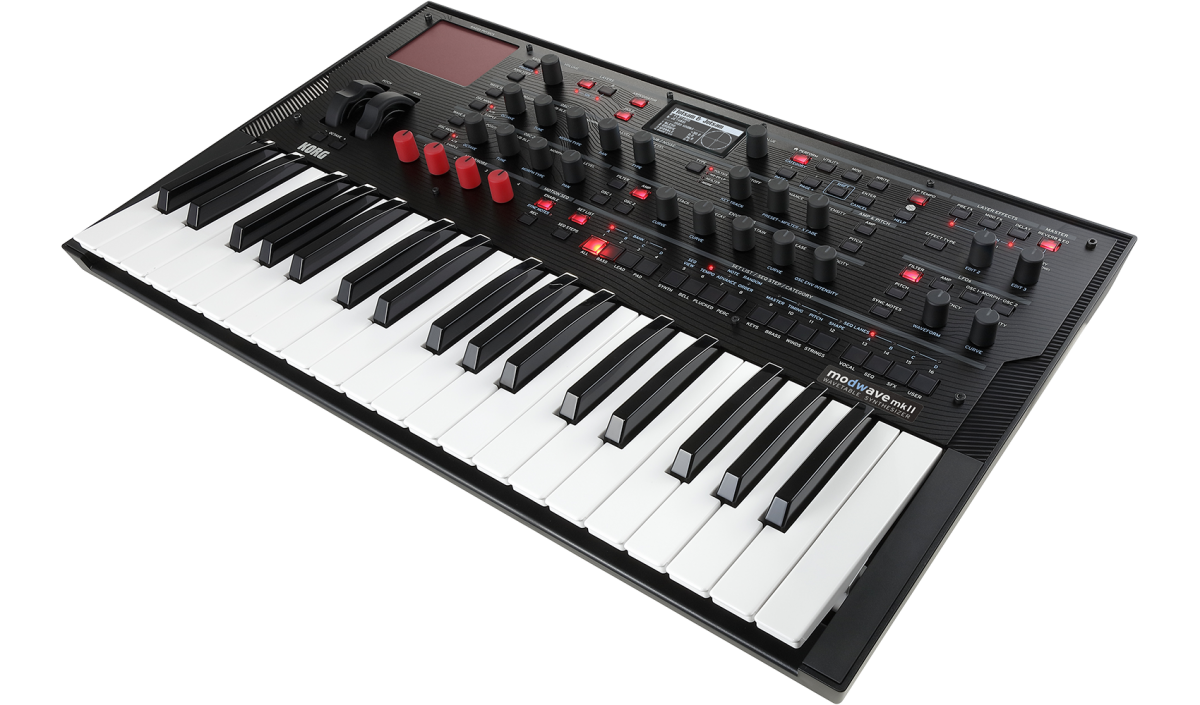

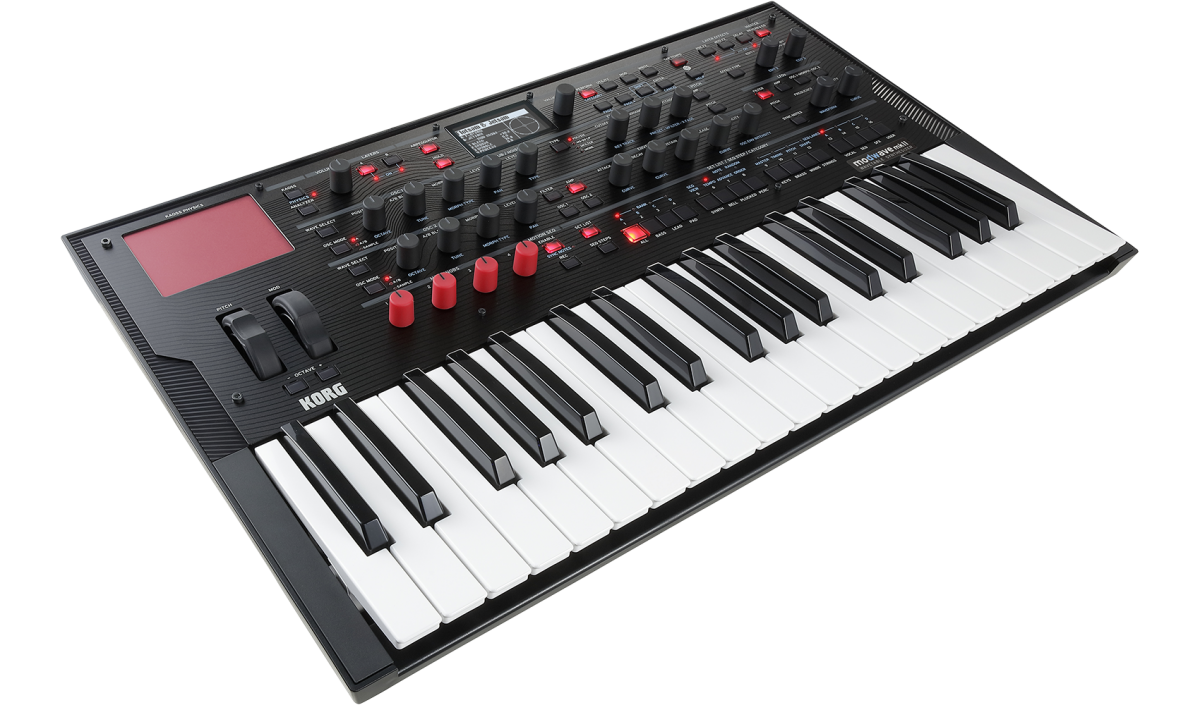

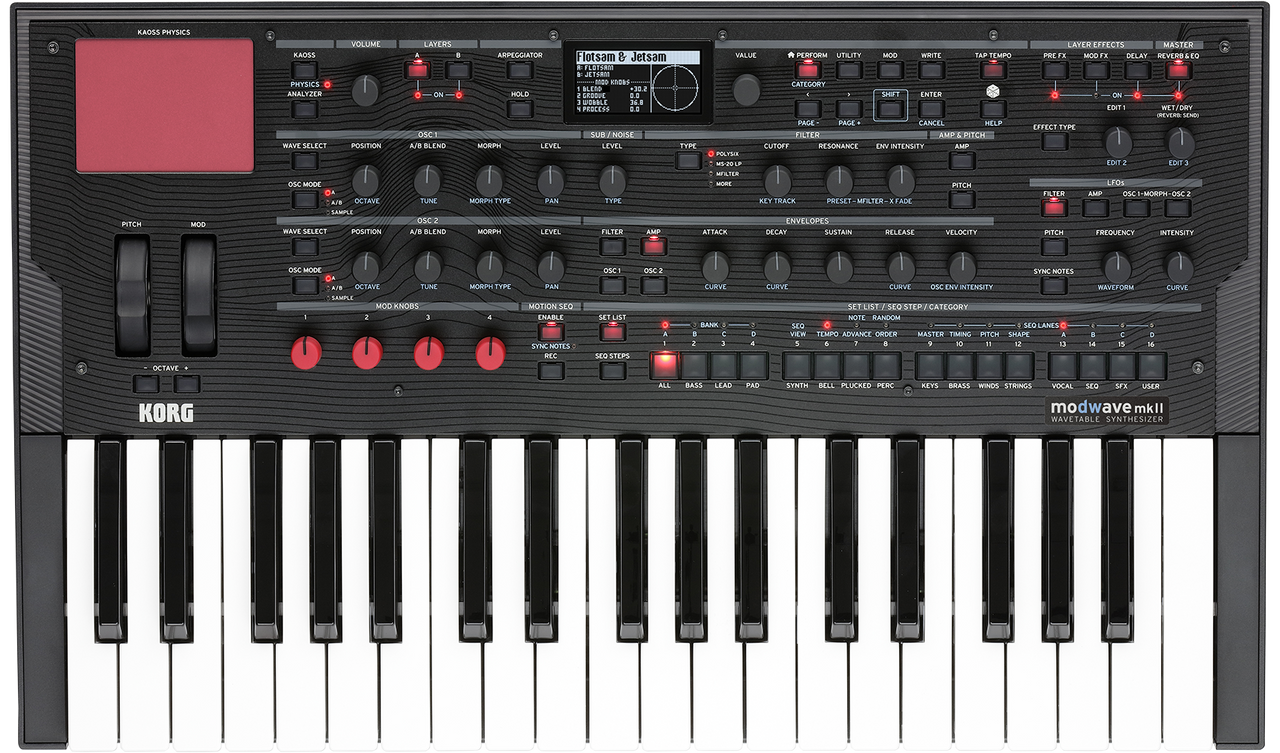

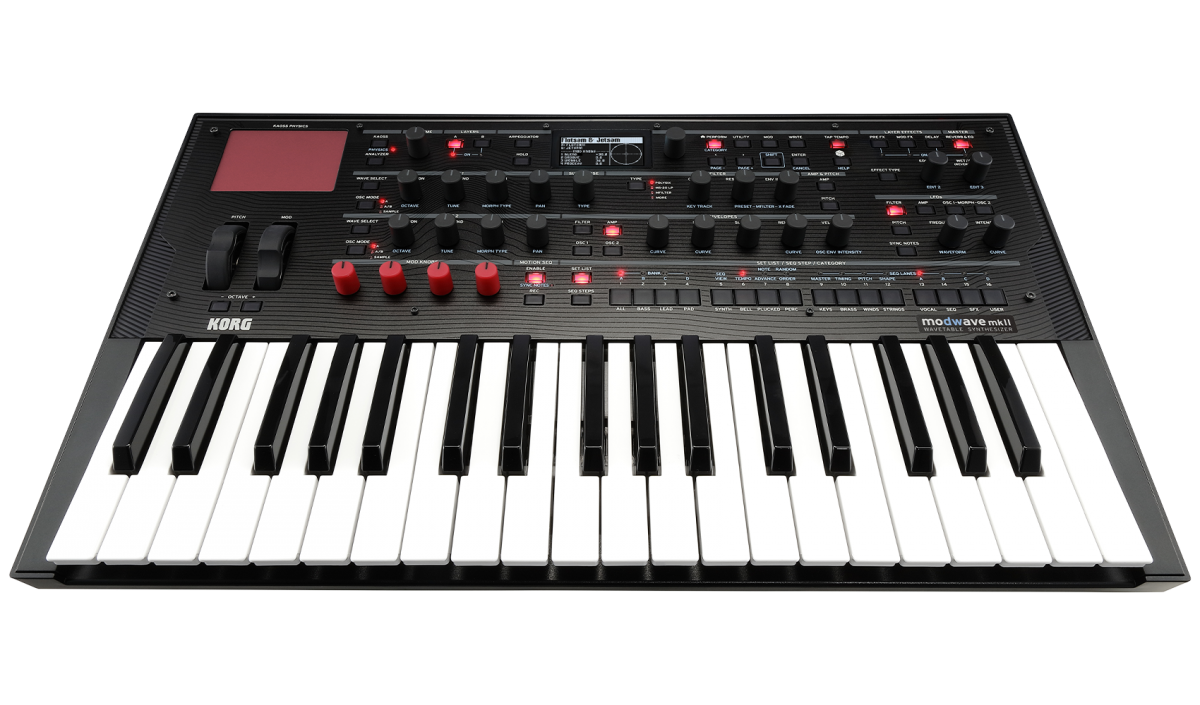

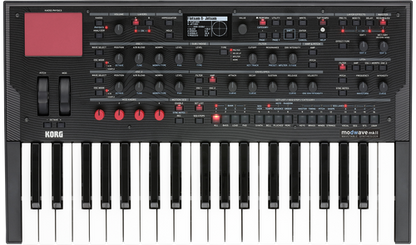

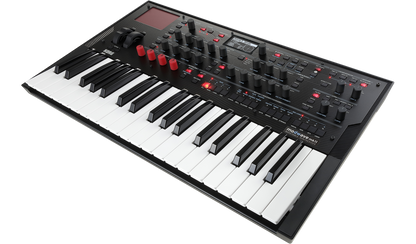

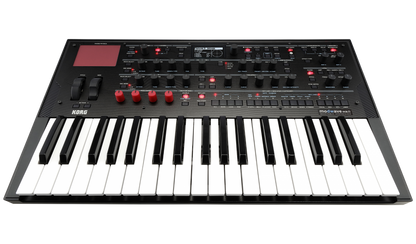

Korg Modwave MKII Wavetable Synthesizer

Modwave MKII: Wavetable Synthesis Redux

In 1985, Korg introduced the world to the DW-8000, a groundbreaking synthesizer that merged digital wavetables and rich analog filters to give players access to a new universe of synthesized sounds. Korg's Modwave MKII continues the DW-8000's storied legacy while representing a new evolution in wavetable synthesis. Comprising a vast collection of wavetable oscillators, a dozen gorgeous stereo filters, a humongous PCM sample library, and a host of modulators, the Modwave MKII launches you into a deep and immersive world of exploratory sound design. Yet, with its compact 37-key keyboard and remarkably intuitive user interface, the Modwave is anything but overwhelming — it's a fun and interactive synth that will appeal to seasoned and aspiring synthesists alike. Plus, a built-in KAOSS Pad facilitates incredibly expressive performances.

Key Features

• Over 200 wavetables with up to 64 waveforms each — 230 million+ variations
• 2-oscillator structure, 2-part multitimbrality, 60-voice polyphony
• MS-20 and Polysix modeled filters plus Korg multimode filter
• Motion Sequencing 2.0 with independent Lane control
• Built-in KAOSS Pad with KAOSS Physics
• 4 envelopes, 5 LFOs, aftertouch
• Multi-gigabyte PCM sample library
• Massive onboard FX: Pre FX, Mod FX, stereo delays, reverb, master EQ
• 37 full-size keys with velocity sensitivity and polyphonic legato
• DIN MIDI I/O + class-compliant USB MIDI
• Balanced stereo line outputs + headphone out
• Free editor software available from Korg

Over 230 Million Wavetable Variations

The Modwave MKII comes loaded with over 200 characterful wavetables, each with up to 64 waveforms, which — combined with modifier and morph features — allows for a staggering 230 million wavetable variations. You can also import wavetables from Xfer Record's Serum or custom wavetables in WaveEdit format. A multi-gigabyte PCM library adds realism to patches with Korg's impeccably recorded samples.

Shape Your Sounds with MS-20 and Polysix Filters

The Modwave MKII packs lowpass and highpass filters modeled after the classic MS-20, a lowpass filter based on the Polysix, plus an array of 2- and 4-pole lowpass, highpass, bandpass, and band-reject filters. Korg's beloved multimode filter can morph and modulate between multiple filter modes.

KAOSS Physics: Hands-On Expression

The Modwave MKII features the renowned KAOSS X/Y touchpad and introduces KAOSS Physics, which models the behavior of a bouncing ball for randomized parameter automation. Customize the environment by defining slope shapes, adjusting surface friction, and choosing between padded or hard walls — or remove walls entirely for wrap-around behavior. KAOSS Physics parameters can be modulated by any of the Modwave MKII's dozens of modulation sources.

Motion Sequencing 2.0

An evolution of the Korg wavestate's Wave Sequencing 2.0, Motion Sequencing 2.0 brings incredible dynamism to your patches. Manipulate sample sequence, timing, and pitch independently via individual "Lanes," each with its own step count, start/end/loop points, and optional step randomization for a completely nonlinear playing experience.

Onboard Effects

Pre FX includes a Decimator bit crusher, studio-quality EQ and compression, ring modulation, tremolo, and a waveshaper. Mod FX, five stereo delays, a master reverb, and a 4-band parametric master EQ round out a massive effects suite for any sonic direction.

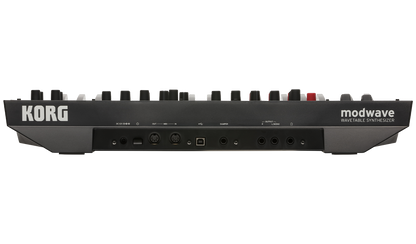

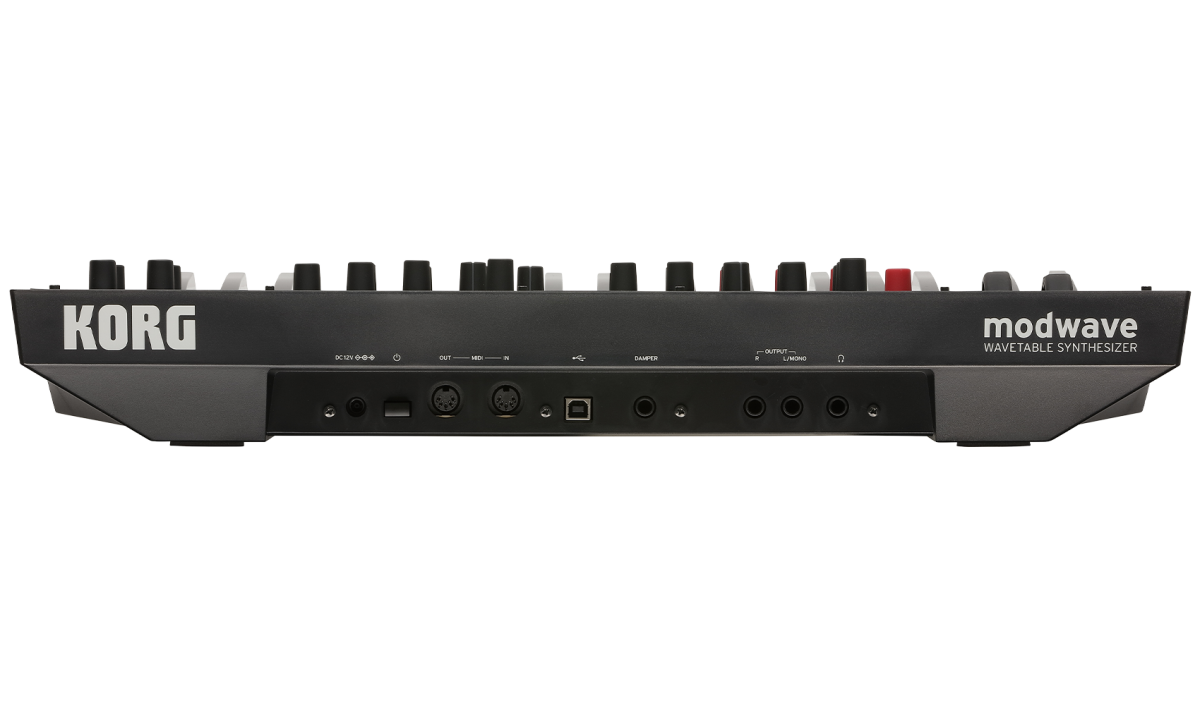

Ready for Stage or Studio

Balanced line-level outputs ensure great sound over long cable runs. A headphone output is available for personal monitoring. DIN MIDI ports connect with other MIDI hardware, and class-compliant USB MIDI integrates with your computer. Free editor software from Korg makes patch management easy.

Tech Specs

• Type: Keyboard Synthesizer
• Sound Engine: Modwave Synthesis (Digital)
• Number of Keys: 37 full-size
• Polyphony: 60 Stereo Voices
• Aftertouch: Yes
• Velocity: Velocity, Exponential Velocity, Release Velocity
• Controllers: Mod Wheel, Pitch Wheel, KAOSS X/Y Pad, 4x Mod Knobs
• LFOs: 5
• Envelopes: 4
• Audio Outputs: 2x 1/4" balanced
• Headphones: 1x 1/4"
• USB: 1x Type B
• MIDI I/O: In/Out (DIN)
• Pedal Input: 1x 1/4" (damper)
• Power: AC Adapter (included)
• Dimensions: 22.24" x 13.31" x 3.62"
• Weight: 6.93 lbs
• Manufacturer Part Number: MODWAVEMK2
