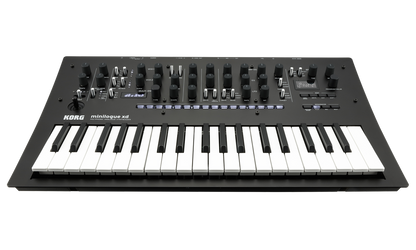

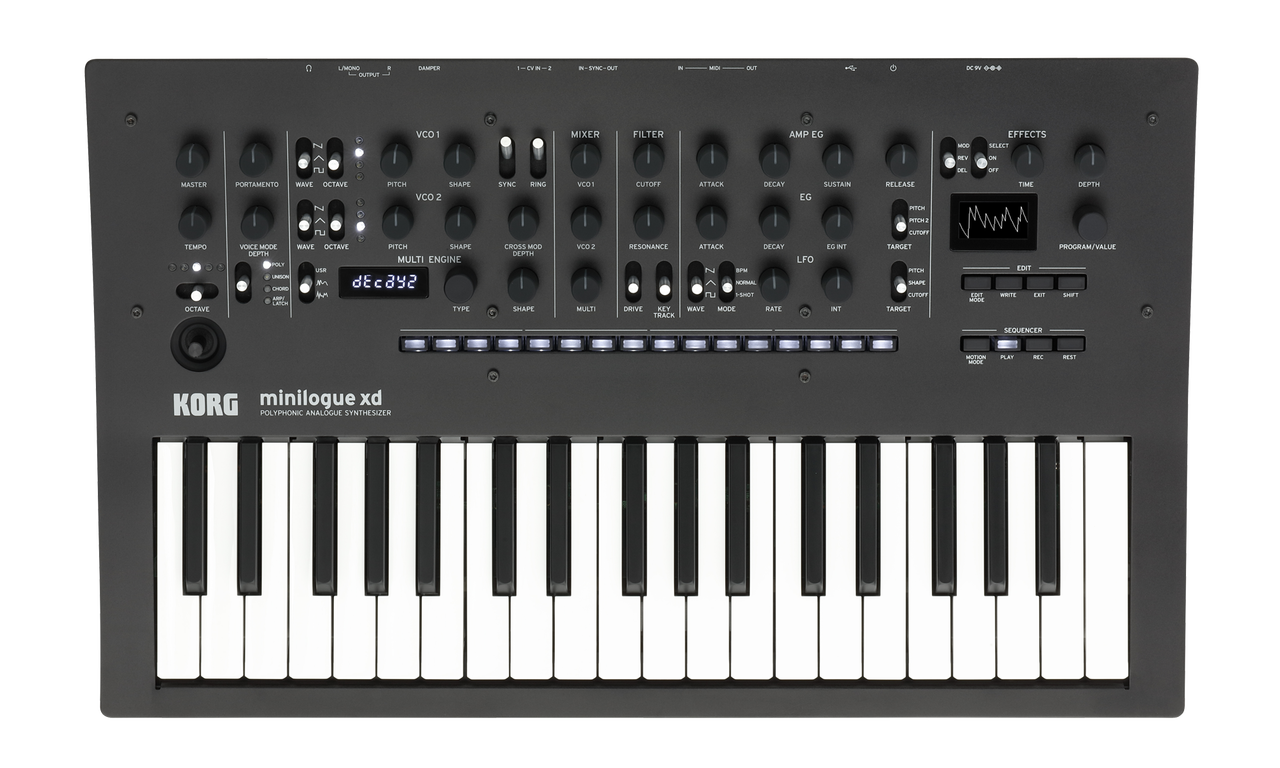

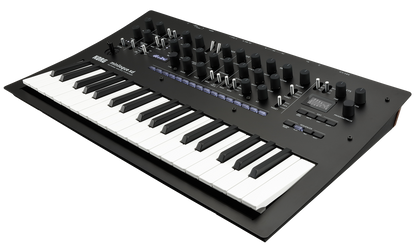

Korg minilogue xd 37-Key Polyphonic Analog Synthesizer

Korg minilogue xd Polyphonic Analog Synthesizer

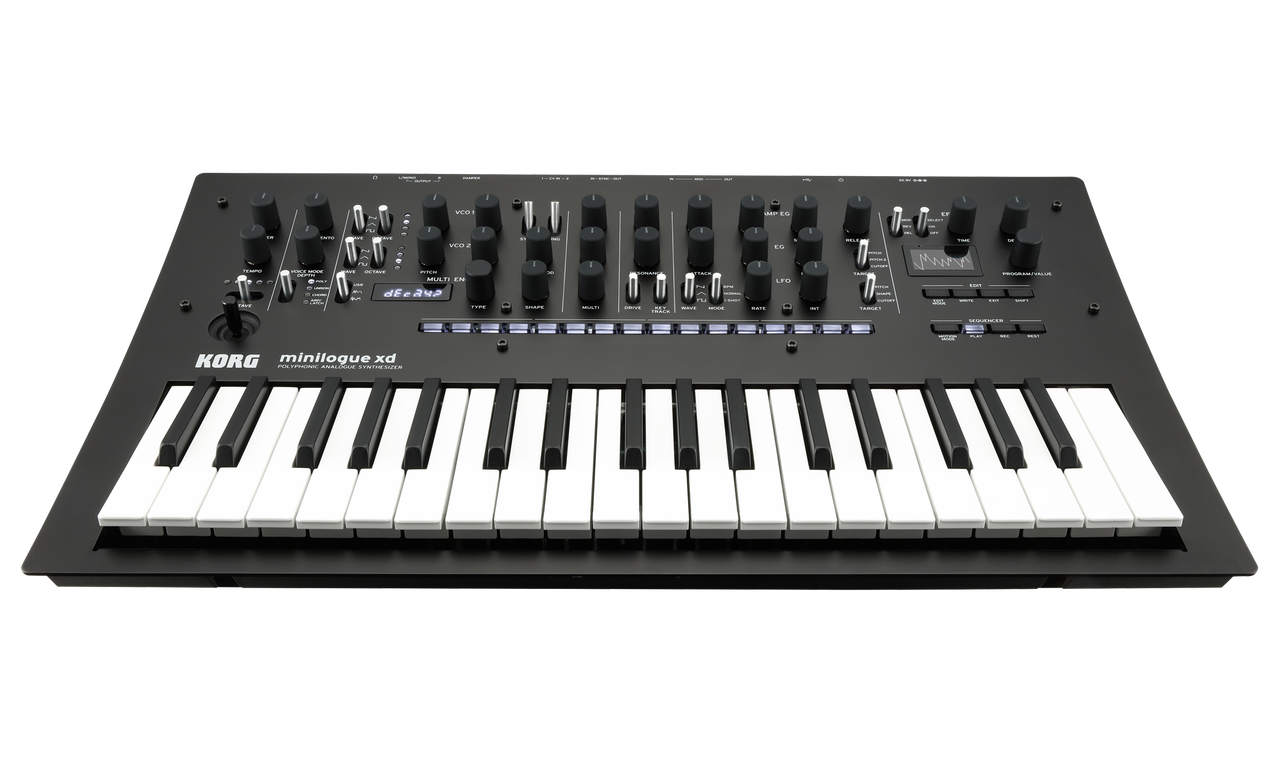

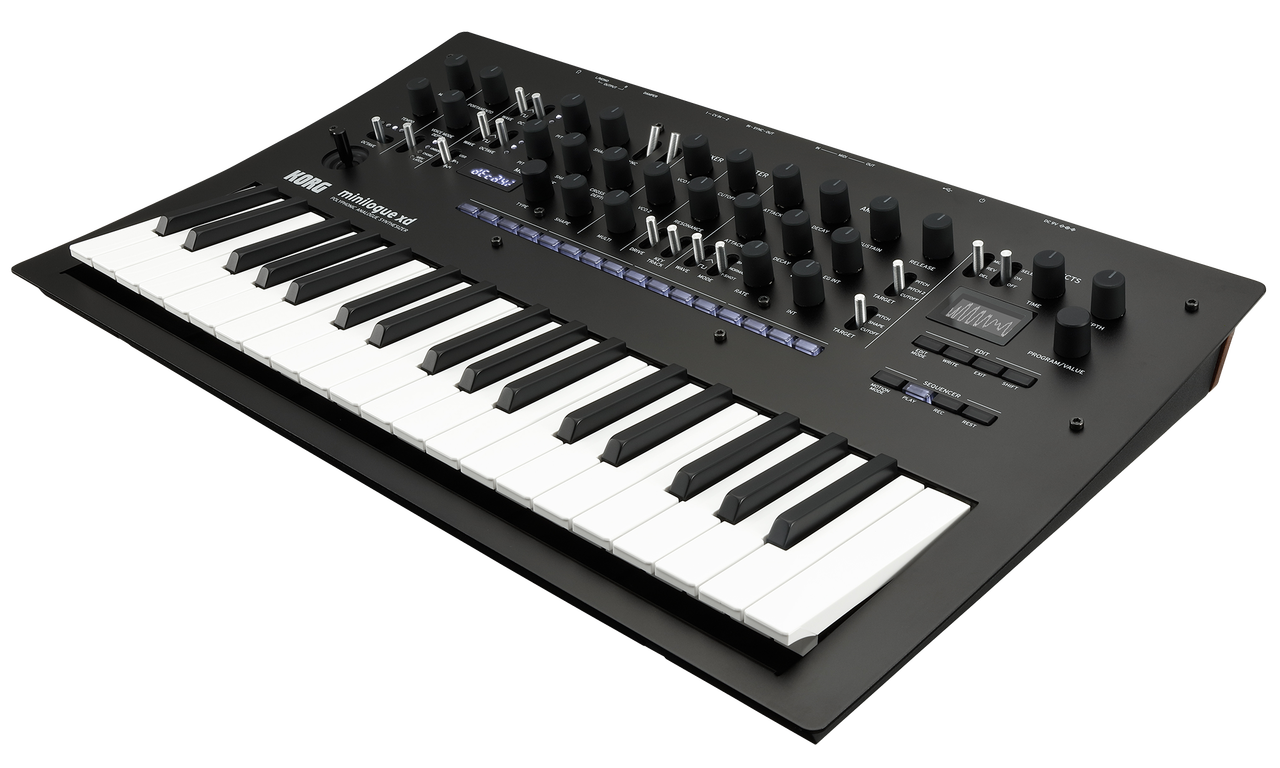

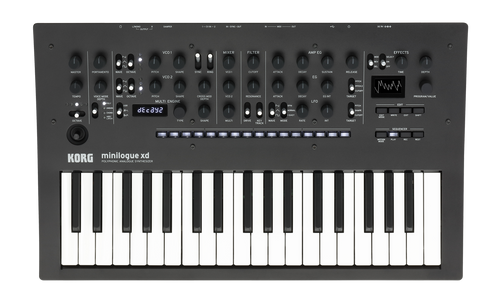

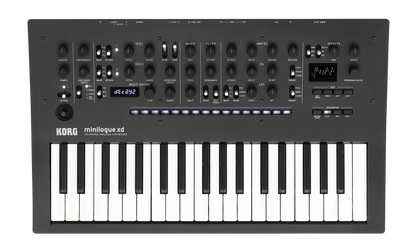

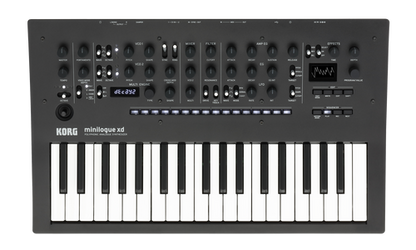

The Korg minilogue xd combines four-voice analog synthesis with a digital multi-engine and hands-on sequencing. Build warm pads, focused basses, and complex leads with two analog oscillators per voice, then add digital textures and stereo effects. Its 37 velocity-sensitive slim keys and joystick make it a compact instrument for writing, performing, and exploring sound.

Analog Sound Meets Digital Flexibility

Each voice combines two VCOs with a digital MULTI ENGINE offering Noise, VPM, and User oscillator types. Wave shaping, oscillator sync, ring modulation, and cross modulation expand the analog sound palette. A two-pole analog filter with a drive switch adds further character.

Effects and Performance

Modulation effects, reverb, and delay can be used simultaneously. Four voice modes, POLY, UNISON, CHORD, and ARP/LATCH, offer different ways to play, with the Voice Mode Depth control shaping each mode's behavior. The joystick provides hands-on performance control.

16-Step Sequencing

The polyphonic 16-step sequencer supports real-time and step recording. Motion sequencing records changes to up to four parameters, adding movement to patterns and evolving sounds.

Key Specifications

• Keyboard: 37 velocity-sensitive slim keys
• Maximum polyphony: Four voices
• Sound generation: Two analog VCOs plus digital MULTI ENGINE per voice, with Noise, VPM, and User oscillator types
• Voice structure: Two VCOs, MULTI ENGINE, one VCF, two envelope generators, one VCA, and one LFO per voice
• Program memory: 500 locations, with 200 factory presets and space for user sounds
• Sequencer: 16-step polyphonic sequencing with motion recording for up to four parameters

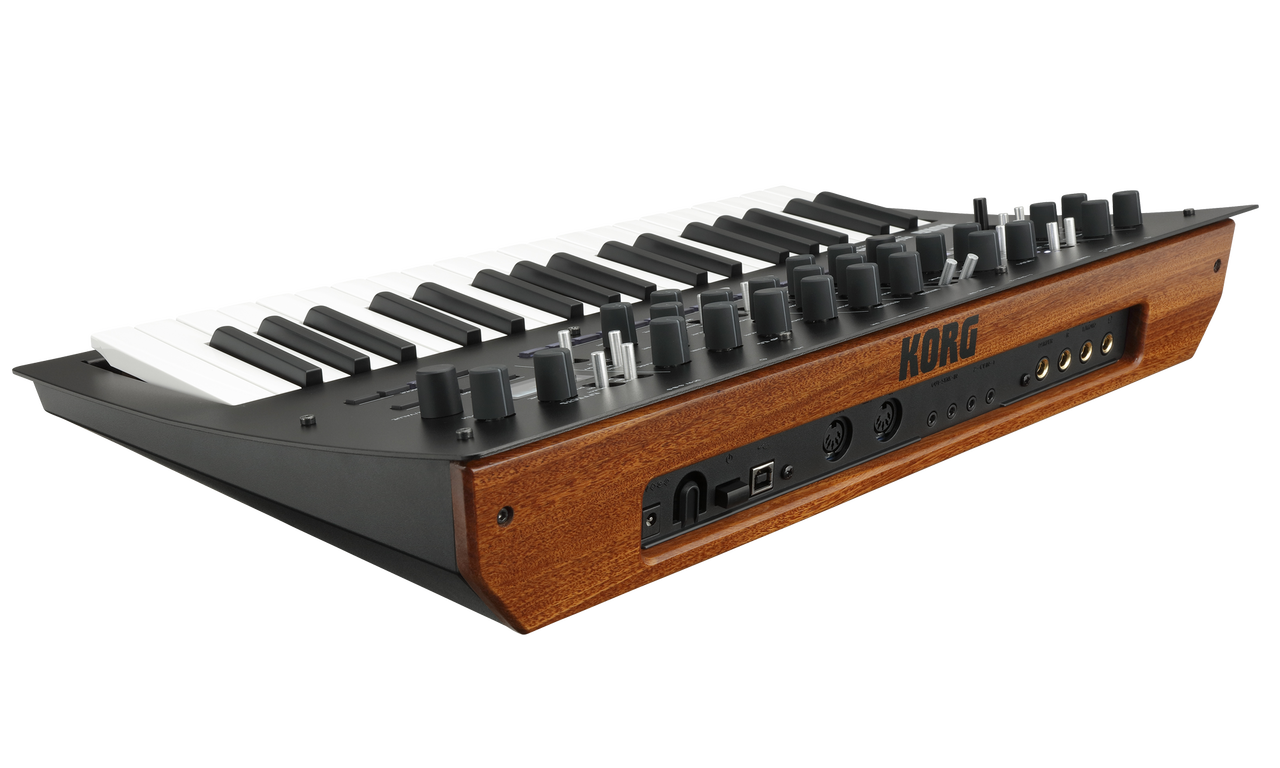

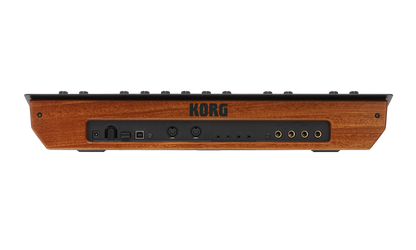

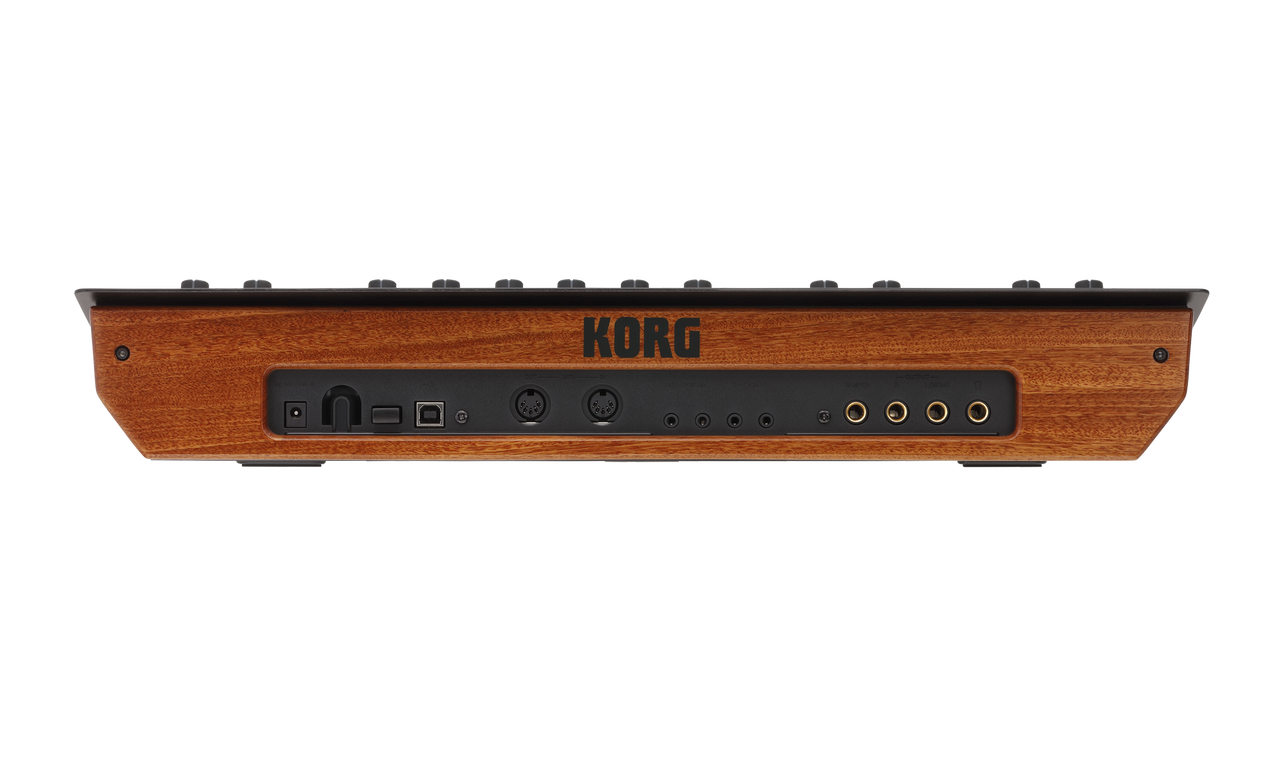

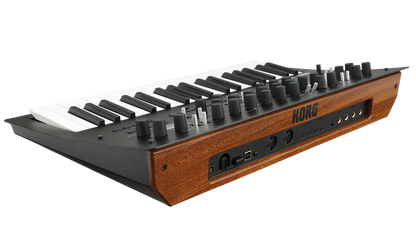

• Connections: Stereo audio outputs, headphone output, MIDI IN/OUT, USB-B, sync IN/OUT, two CV inputs, and damper pedal input
• Dimensions: 500 x 300 x 85 mm / 19.69 x 11.81 x 3.35 inches
• Unit weight: 2.8 kg / 6.17 lb, excluding shipping packaging
