HK Audio Elements E110 Sub A powered Subwoofer

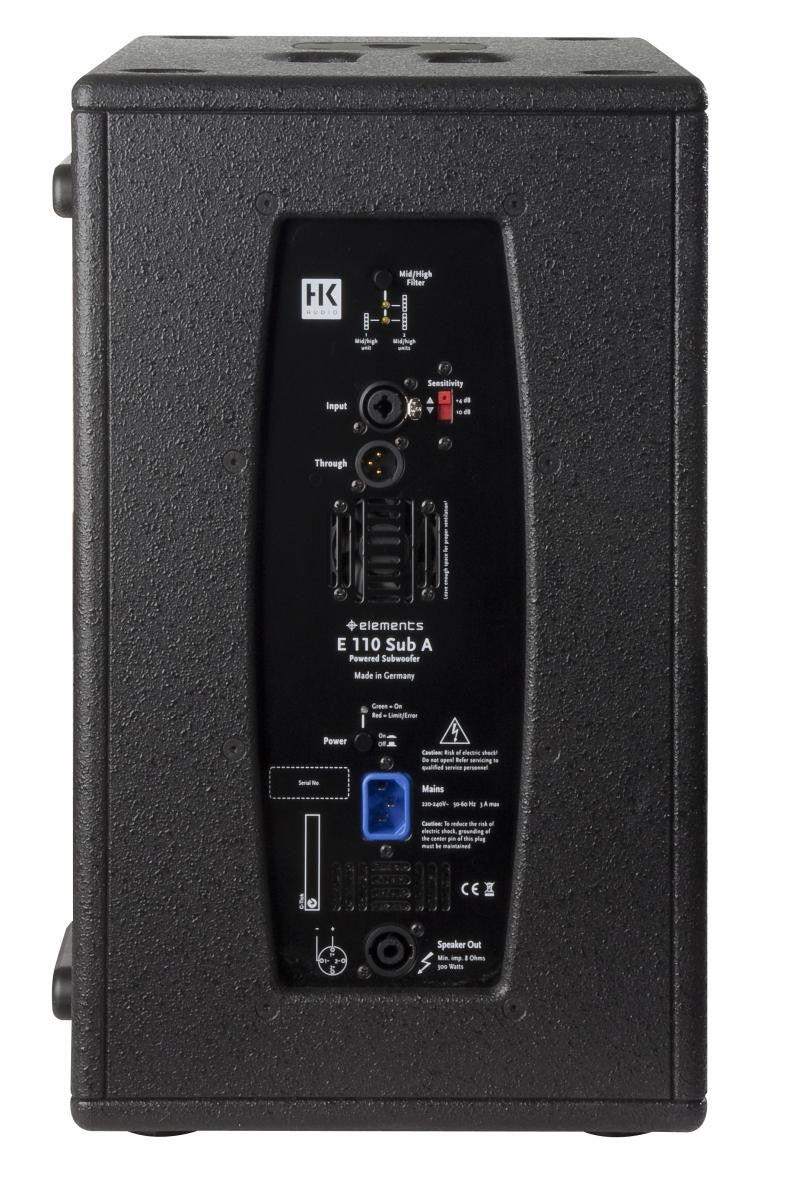

The active E 110 Sub A subwoofer is designed to deliver high sound pressure levels. Small yet powerful, the high-performance 10" woofer fits into a very compact housing and supplies a solid, low-ranging bass foundation. Sited at the rear of the enclosure, the integrated amp module delivers 600 watts at 4 ohms. You’ll also find all connectors and control features for connected modules on the rear panel.

• System subwoofer with 600 watts power output
• Remarkably compact and powerful
• Can also drive up to two E 435 / one E 835 mid/high units or another passive subwoofer
• Two EQ filter settings (variable to match the number of mid/high units in one column)
• Two E-Connect couplers with an integrated bus
• Exceedingly light weight (19 kg)

  Model	E 110 Sub A
  Product Class	Elements
  Frequency response -10 dB	45 Hz – 150 Hz, via the active system crossover
  Subwoofer amplifier	1x 600 W / Class D @ 4 ohms
  Active protection circuits	RMS limiter, subsonic filter, 2 system filters, depending on the number of connected mid/ high units
  LF Speaker	1x 10"
  Connections	1 Combination XLR 1/4” In, 1 XLR Out, Speakon Parallel Out, 2 E-Connect Outs
  Pole mount	2 E-Connect sleeves
  Dimensions (WxHxD)	30 x 48 x 46 cm • 11-13/16 x 18-7/8 x 18-1/8"
  Weight	19 kg / 41,9 lbs.
