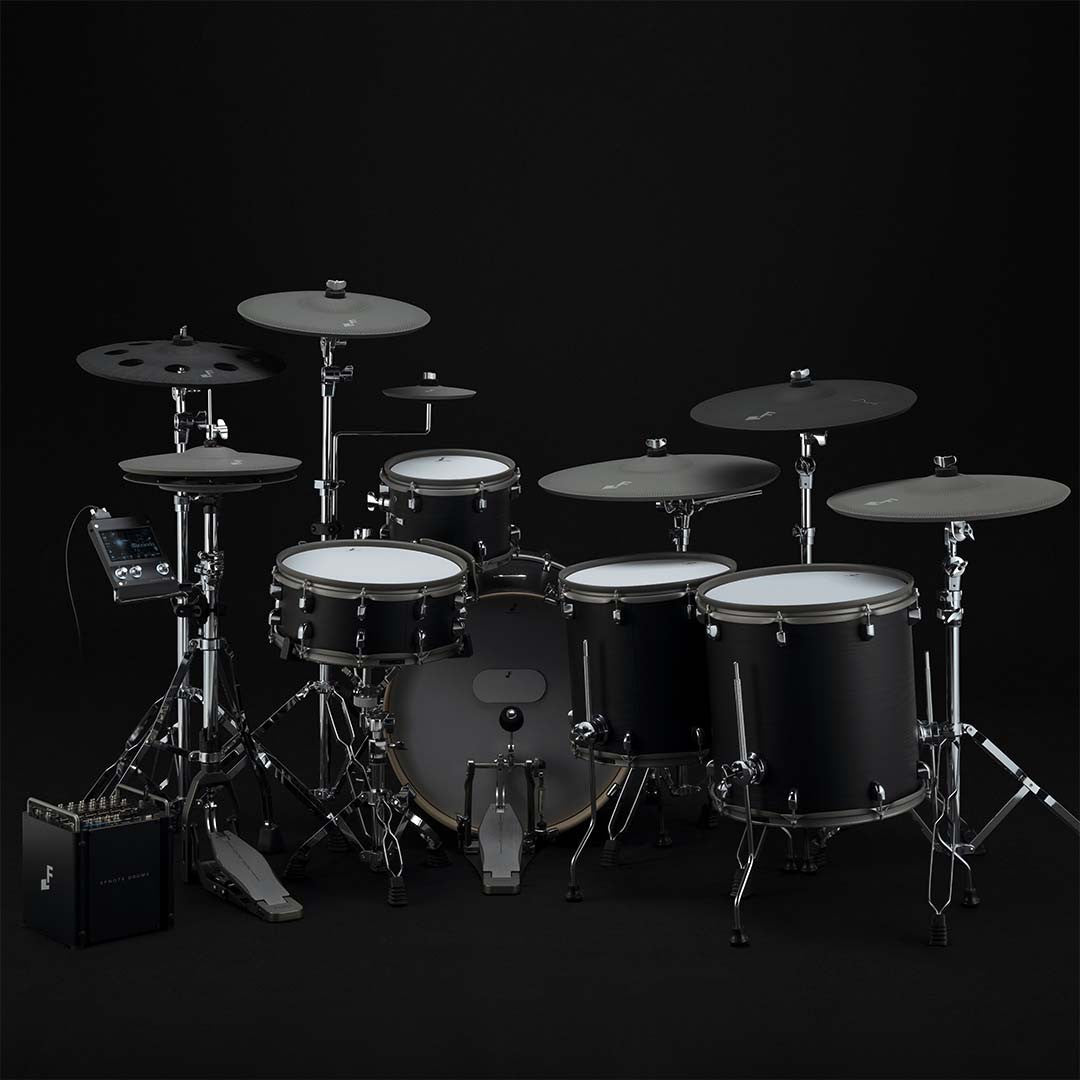

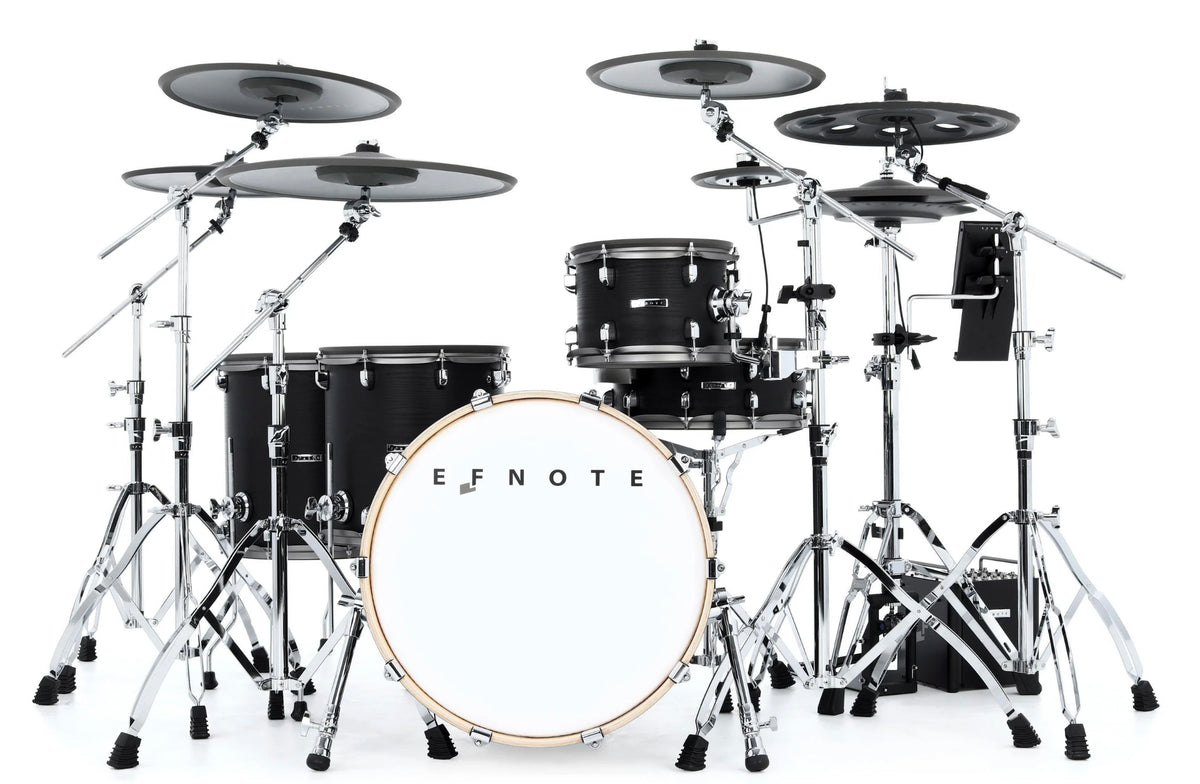

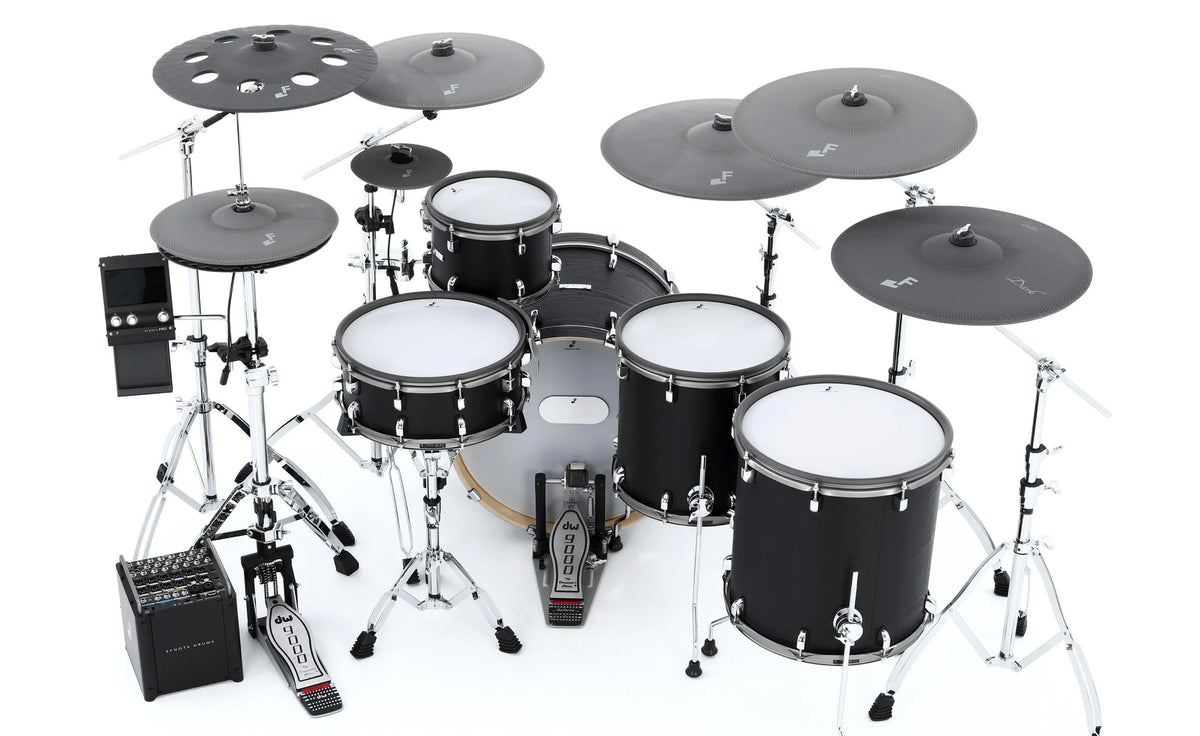

EFNOTE Pro 703x Special Electronic Drum Kit - Black Oak Finish

The EFNOTE Pro 703X electronic drum kit combines acoustic-style birch shells and double-layer mesh heads with a performance-ready sound module and stage box. Its Black Oak finish, responsive pads and flexible routing suit live playing and multitrack recording.

Feel and cymbals

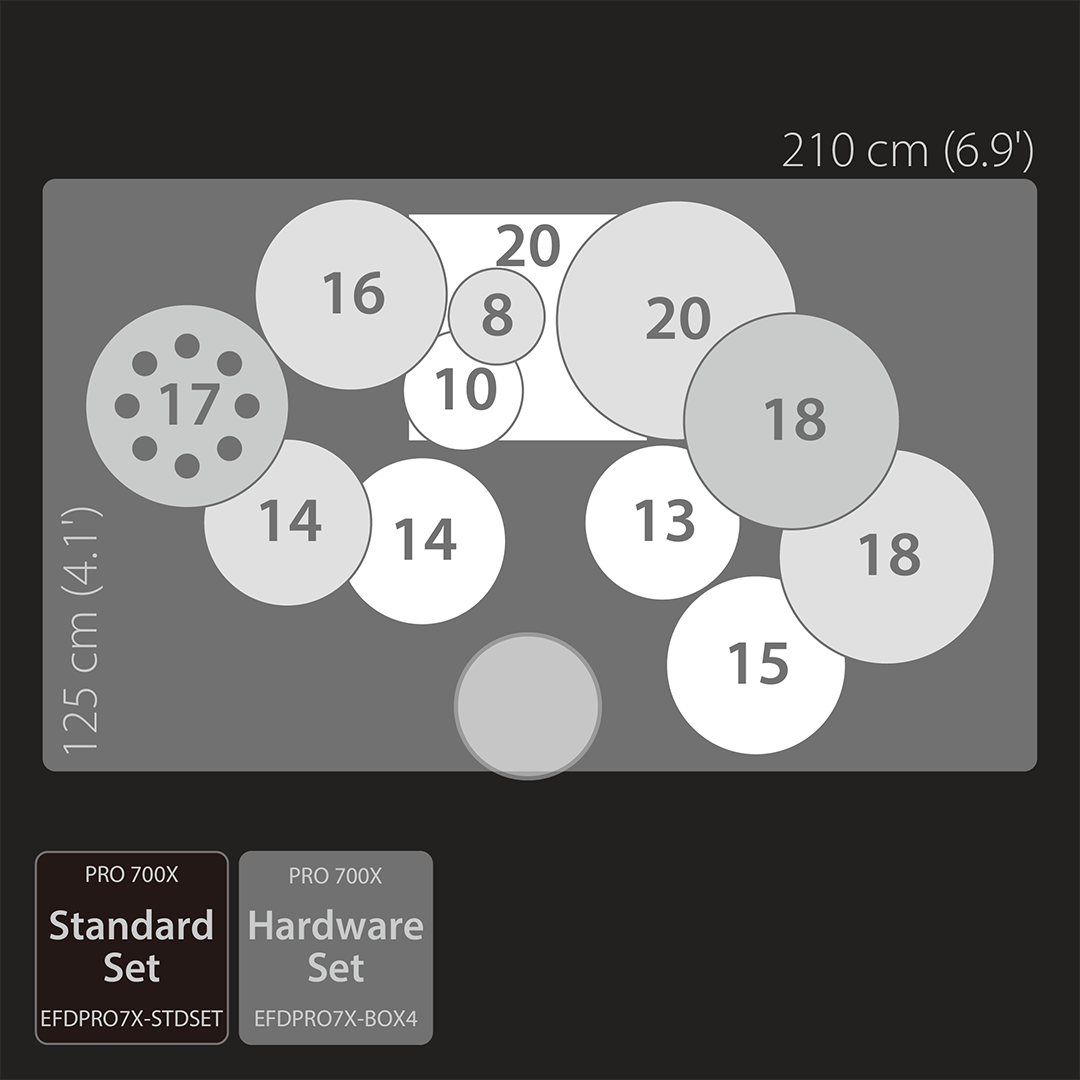

• Five shells with double-layer mesh heads: 20-inch kick, 14-inch three-zone snare, 10-inch tom, 13-inch floor tom and 15-inch floor tom.
• Seven cymbals: 14-inch Tru-Motion hi-hats, 16-inch crash, two 18-inch crashes, 17-inch effects/China cymbal, 20-inch ride and 8-inch splash.
• The STAK mount lets you stack the 8-inch splash above the 17-inch effects cymbal or suspend it independently. The hi-hats use multi-optical 360-degree sensing and weight simulation.
• ELISE 2.0 multi-sensor processing captures head, rim and side-rim playing on the snare.

Live sound and recording

• The EFD-PRO module has a touchscreen color display, two assignable knobs, 23 preset kits and 100 user kit slots. Adjust tuning, muffling, pan and two-band EQ by pad, and layer additional sounds with Overlay Tone.
• The stage box supplies 12 balanced XLR bus outputs with high-pass filtering, two-band EQ and ground lift. Buses 1–6 also provide compression. A Bus Mixer can combine outputs when fewer console channels are available.
• EFNOTE Tools lets a front-of-house engineer adjust output sends remotely without changing the drummer’s monitor mix.
• USB carries 12-channel audio output at 48 kHz/24-bit, two-channel input and MIDI; the module also provides 5-pin DIN MIDI out, Bluetooth audio and MIDI, and two quarter-inch TS line outputs.
• Monitor input, line input and separate quarter-inch and eighth-inch headphone outputs support rehearsals and shows. The Set-list feature stores song kits and tempos; MIDI recording and USB flash-drive backup support practice and setup changes.

Included and sold separately

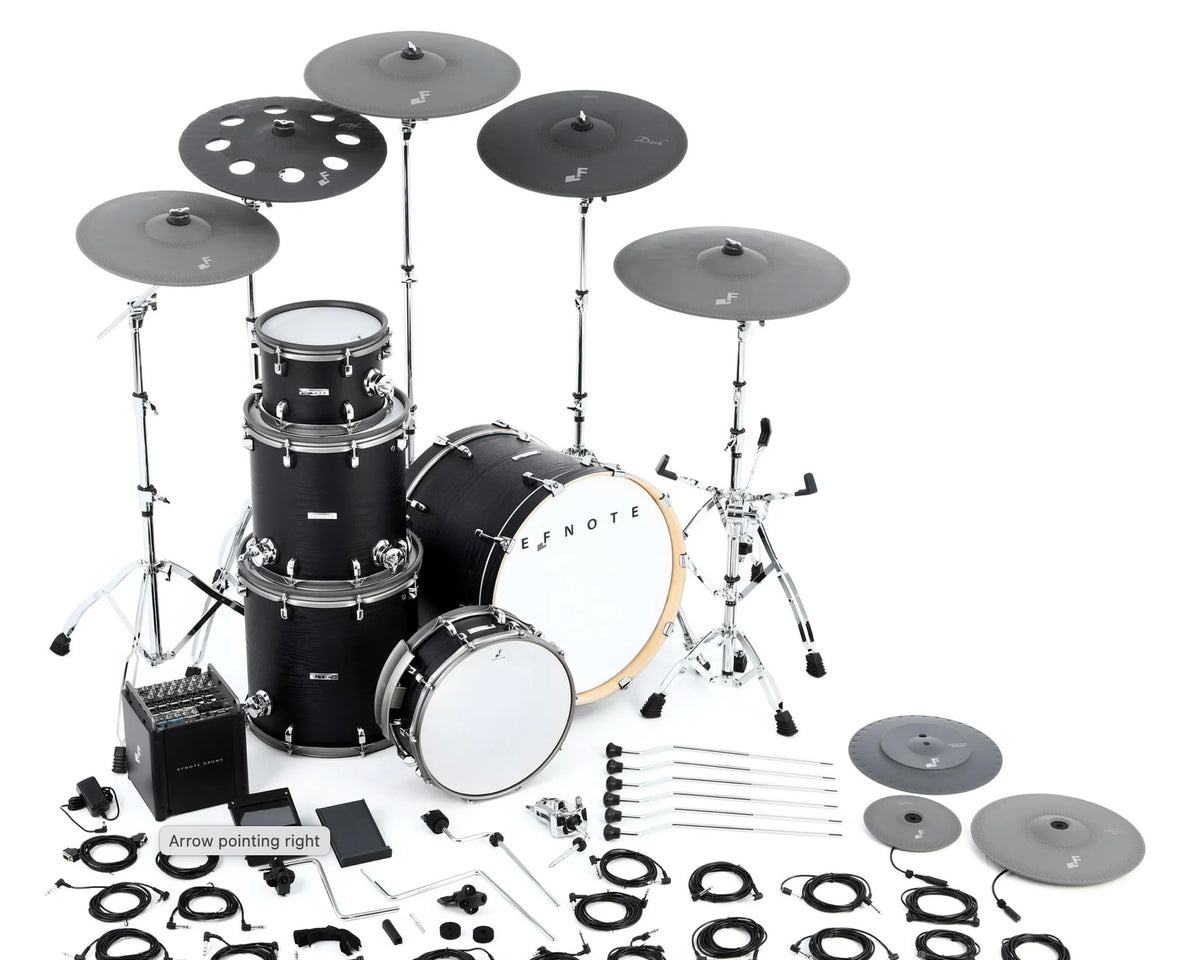

The listed package includes the snare stand, five cymbal stands, splash mount, control module and mount, stage box, power adapter, multipin connection cable and trigger cables alongside the shells and cymbals above.

Sold separately: Bass drum pedal, hi-hat stand and drum throne.
