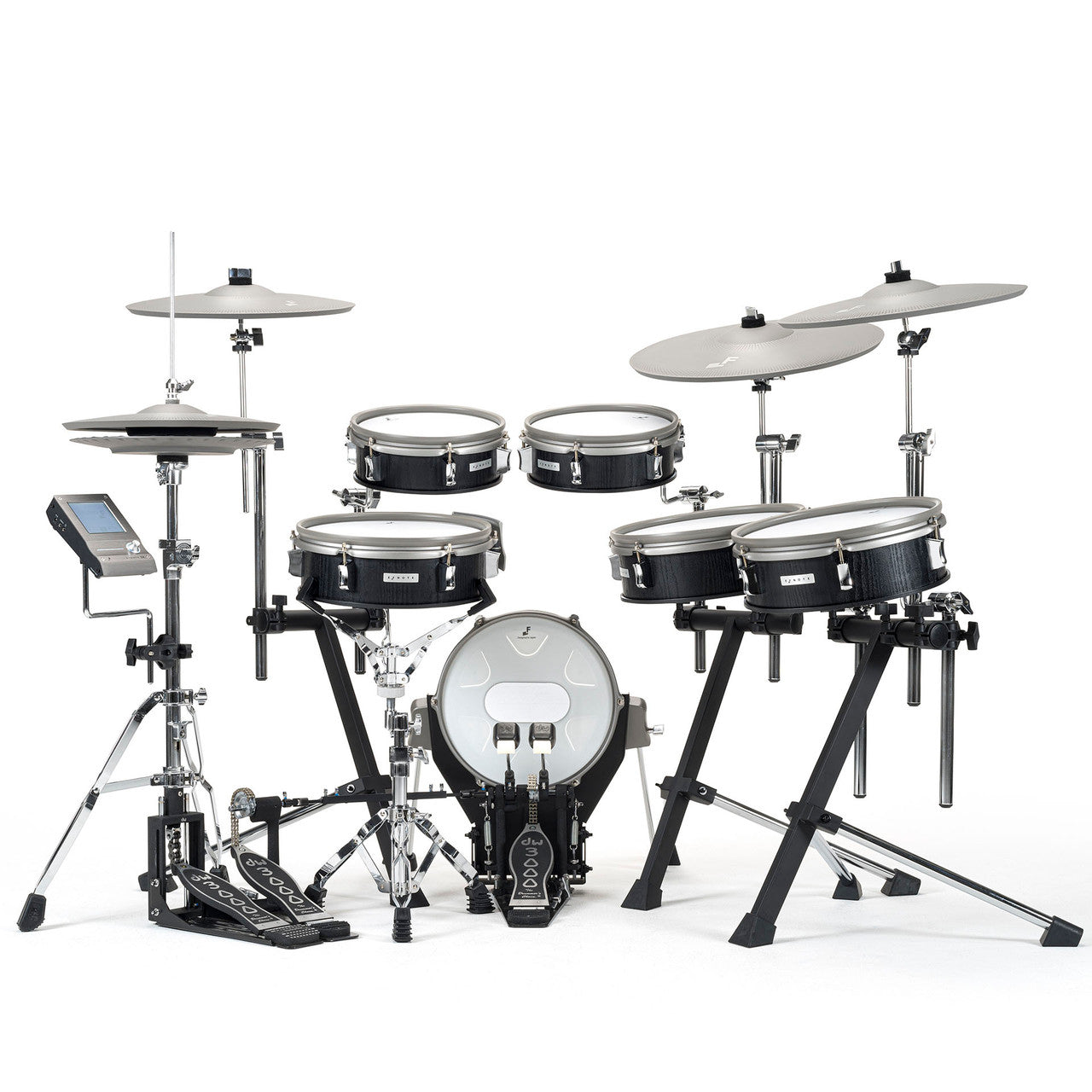

EFnote 3X electronic drum set

• Size: 12 x 4"
• Finish: Black Oak-ish
• Zone: Head
• Sensor: Multi
• Head: Low-rebound double-layered mesh with beater patch
• Connector: Head (TRS Phones)
• Features: Angle-adjustable kick pedal attachment

• Size: 12 x 4"
• Finish: Black Oak-ish
• Zone: Head / Rim / Side-Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim, Side-Rim (2x TRS Phones)
• Features: Monocoque drum shell, Colored hoop rubber, Side-Rim

• Size: 10 x 3.5"
• Finish: Black Oak-ish
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Monocoque drum shell, Colored hoop rubber, Suspended tom mount

• Size: 12 x 4"
• Finish: Black Oak-ish
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Monocoque drum shell, Colored hoop rubber, Suspended tom mount

• Size: 14" (Top/Bottom)
• Color: Warm gray
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke) / Optical
• Connector: 6-pin
• Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface

General hi-hat stands compatible with φ12.7 mm (1/2") hole cymbal can be used.

EFNOTE 3X sound module does not support hi-hat cup zone.

• Size: 16"
• Color: Warm gray
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Fine engraved surface

In the EFNOTE 3X configuration, the Crash 1 cup is not supported when the Tom 4 is used.

• Size: 18"
• Color: Warm gray
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Fine engraved surface

• 3-Zone: Snare, Crash 1/2*, Ride
• 2-Zone: Tom 1/2/3/4, HH, Crash 3
• 1-Zone: Kick

Crash 1/2 support 3-zone with using Tom 4/Crash 3 cables.

In the EFNOTE 3X configuration, the Crash 1 cup is not supported when the Tom 4 is used.

• Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced)
• Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω)
• Audio Input: Stereo Mini-Phone (+2dBu Max)

• USB: Micro-B Type USB 2.0 Hi-Speed
  Audio: 8-ch Out (48kHz/24bit) / 2-ch In (48kHz/16bit), Mac/Windows ASIO
  MIDI: In/Out
• Bluetooth Audio Input
• Bluetooth MIDI In/Out
• MIDI Out: 5-pin DIN

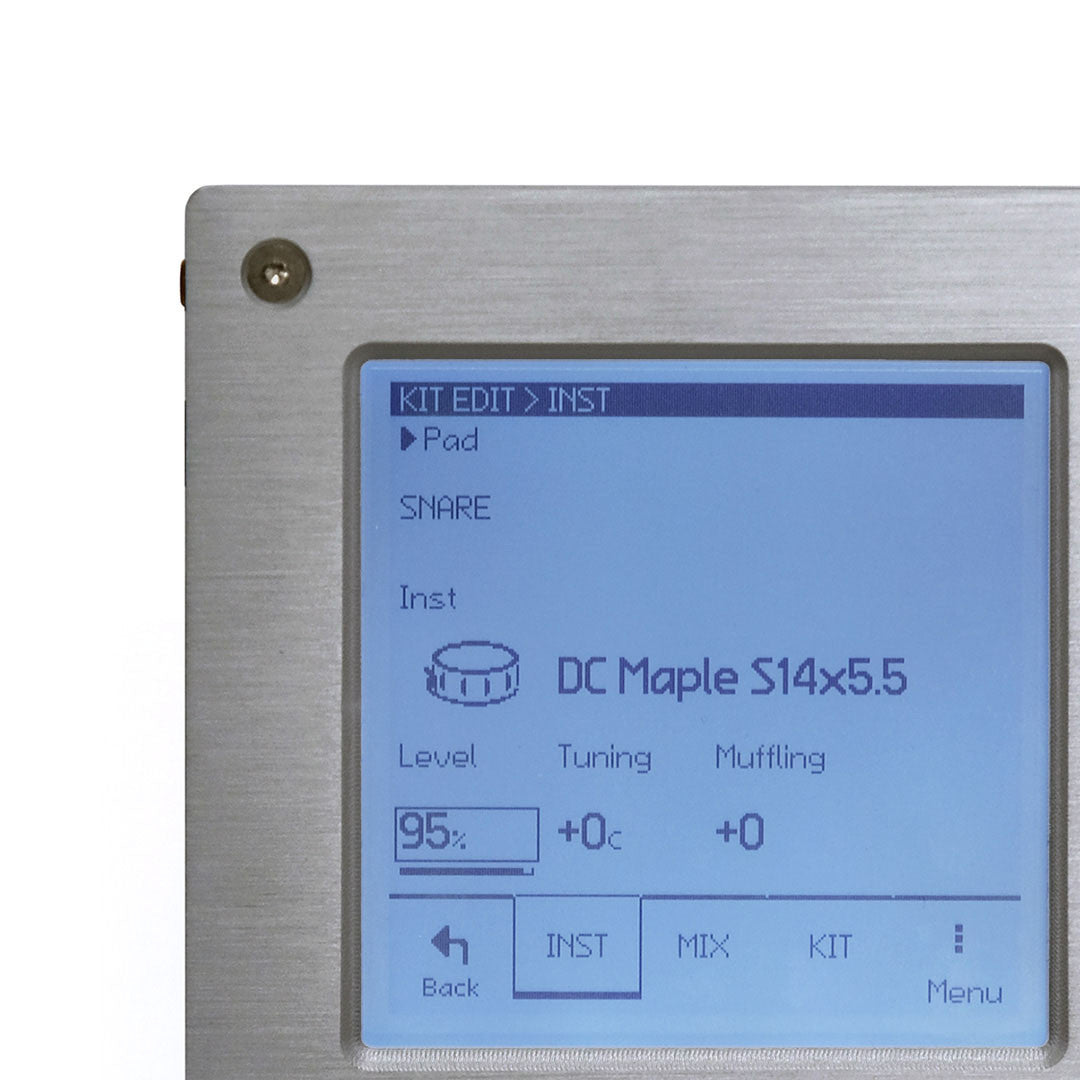

• Preset Drum Kits: 16 (Editable)
• User Drum Kits: 34
• Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), eKick/eSnare, Attack Elements
• User Inst Library: 50 (Can be stored customized instruments)

• Level, Pan, Tuning, Muffling (for each pad)
• 2-Band EQ (for each pad)
• Ambience Effect (8 types)
• Pad Layer

• 106 (W) x 172 (D) x 47 (H) mm
• 700g

Excluding protrusions

• DC 12V, 500mA (Nominal) / 800mA (Max)

• 3x Lambda Tripod

• For 12" to 14" diameter snare drums
• Geared basket tilter
• Double braced legs
• Tube diameter: φ19.1 mm (3/4")
• Height adjustment range: 500 -- 650 mm

• 4x Tom Holder Arm
• Geared L-rod tilter
• Knurled carbon steel rod
• L-rod diameter: φ11.5 mm (7/16")
• Tube diameter: φ22.2 mm (7/8")
• Height adjustment range: 550 -- 900 mm

• 3x Boom Cymbal Arm
• Gearless tilter
• Cable holder
• Tube diameter: φ22.2 mm (7/8")
• Boom length: 300 mm
• Height adjustment range: 650 -- 1250 mm

• 1x Sound Module Arm
• 1x Smartphone Tray

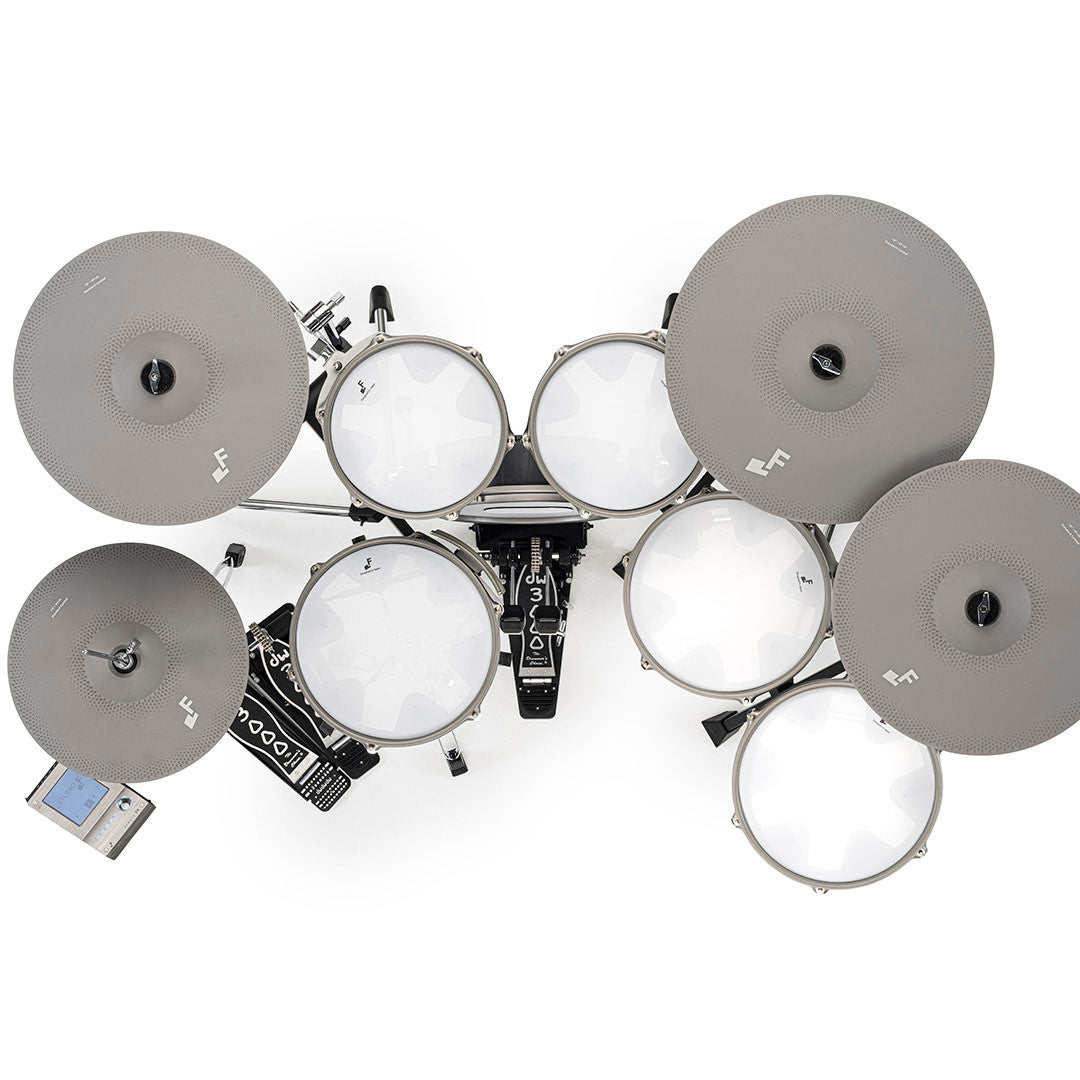

• Approx. 170 (W) x 110 (D) cm
• Approx. 5.6 (W) x 3.6 (D) feet

Without drum throne

• Brake-Out Cable: EFD-MULTI-AX
• Brake-Out Cable: EFD-MULTI-B
• 4x Trigger Cable 3.0 m: EFD-TRS-LL3
• Cable Ties
• Quickstart Guide

Kick pedal, hi-hat stand and drum throne are sold separately.
