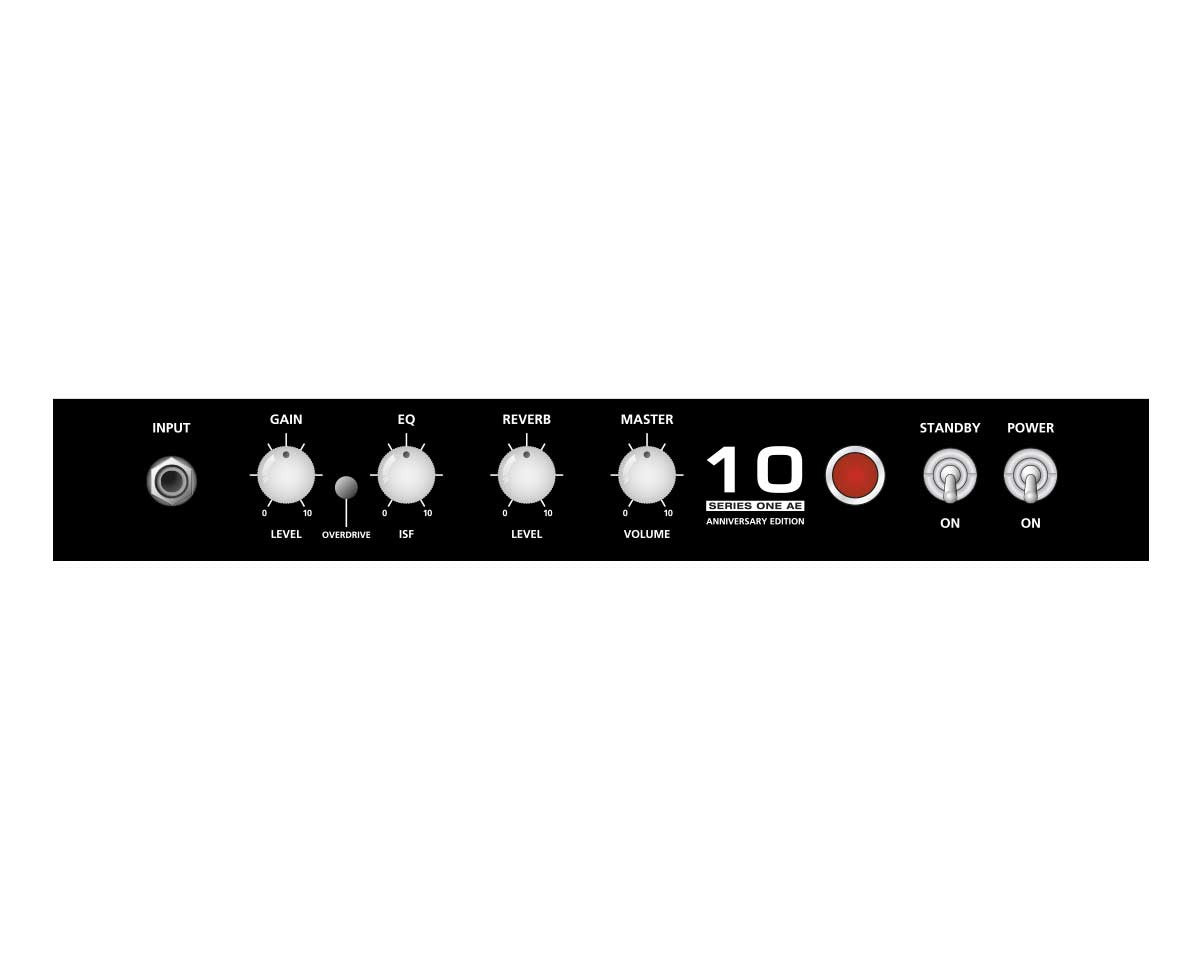

Series One 10 AE Front Panel Features: • Input Socket • Gain • OD • ISF • Reverb • Master • Standby • Power
Rear Panel Features: • Emulated Output (mono, taken after the power amp) • Series effects loop • Effects Level switch • Footswitch (supplied 1-button to activate Overdrive feature, or use an optional 2-button for Boost / Overdrive and Reverb) • Mains In • 3 speaker outputs – 1x16 Ohm, 1x8 Ohm and 2x16 Ohm
The 10th Anniversary amps feature:
ECC83 valve in the preamp stage
Specially voiced EL34, 6L6 and KT-88 power amplifiers
Clean and Boost or Overdrive settings, which are footswitchable
Specially voiced Reverb, speaker emulated output and effects loop
