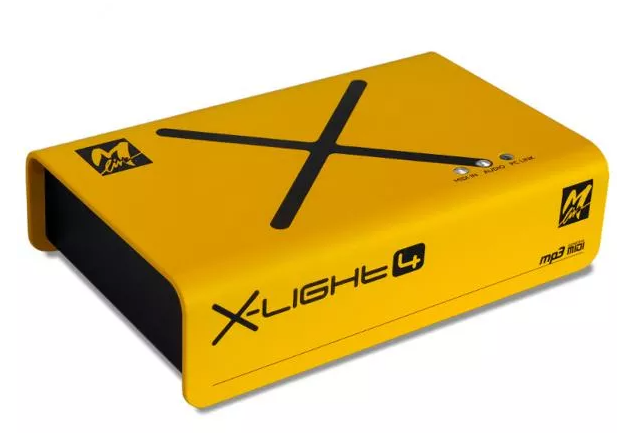

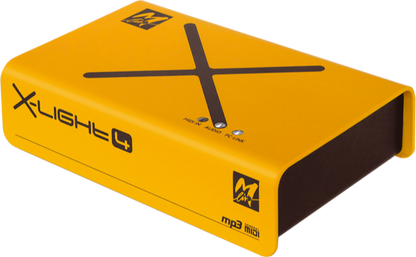

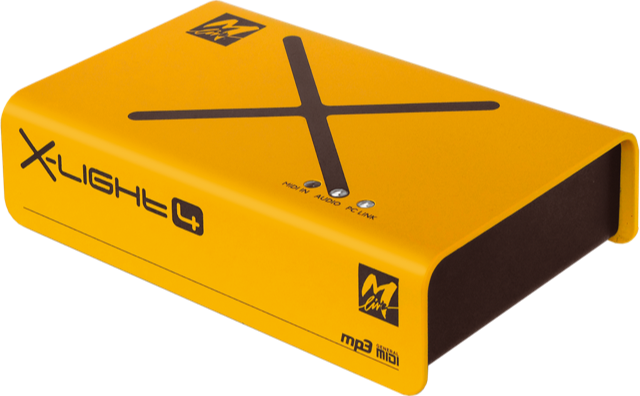

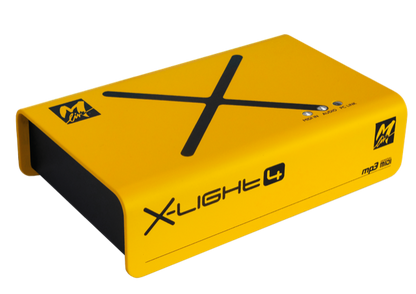

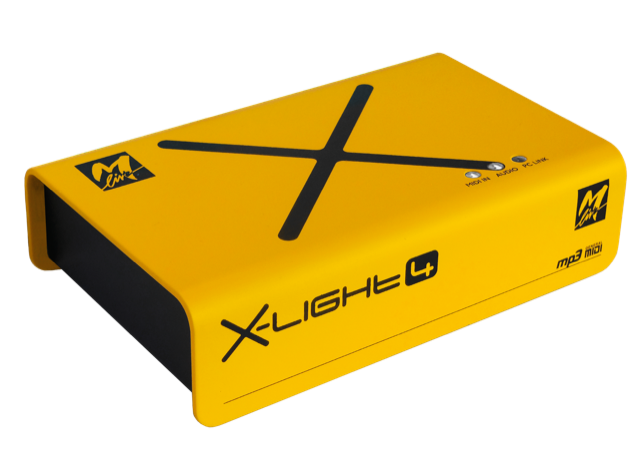

M-Live B.Beat X-LIGHT 4 General Midi Sound Module

The X-LIGHT 4 is perfect for anyone looking to enhance the quality of MIDI sound in their productions or live performances. It works as a true MIDI expander, giving you greater control and flexibility over your current setup. Its easy connectivity, robust design, and complete General MIDI sound bankmake it a reliable tool for musicians, producers, and educators. Plus, it operates independently of your computer’s CPU, making it the best MIDI module for live performance, especially in situations where stability is critical.

Brochure

Manuale

X-Light 4 is a small device that acts as a sound generator. It works with Windows PCs, Apple Mac computers, iPads, and iPhones. It can play different types of music files like MIDI, MP3, and Wav. This device is great for live musicians who want better sound quality than regular computer sound cards.

If you enjoy playing MIDI files with software like Grinta Karaoke, Winlive, or Van Basco, X-Light 4 is perfect. It has a high-quality sound library made by M-Live, known for their MERISH and Expander products. This library makes sure that MIDI files sound exceptional.

X-Light 4 is easy to use. Just connect it to your PC with a USB cable, and you're good to go. You do not need extra power equipment, which is convenient. You can connect it directly to professional audio systems or speakers at home.

*Note: If you're using an iPad or iPhone, you'll need an external power supply.

• Plug & Play with PC and Mac via USB
• Automatically recognized as a dual MIDI device
• 2 General MIDI modules (16 channels each)
• Over 866 instrument and percussion sounds (General MIDI sound bank)
• Includes 46 drum kits
• Up to 108-note polyphony
• Stereo audio input/output (RCA)
• Headphones output (stereo mini-jack)
• LED indicators for MIDI signal, audio activity, and PC connection
• • Internal memory: 128 MB
  • Frequency response: 20 Hz – 20 kHz (±3 dB)
  • Distortion (THD + Noise): <0.01%
  • Signal-to-noise ratio: -85 dB
  • Dimensions: 17.1 x 10.7 x 4.7 cm
  • Weight: 0.75 kg
  • Inputs: Stereo Audio In, USB
  • Outputs: Audio Out (L/R), Headphones
  • Compatibility: Windows and macOS

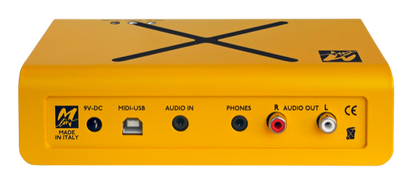

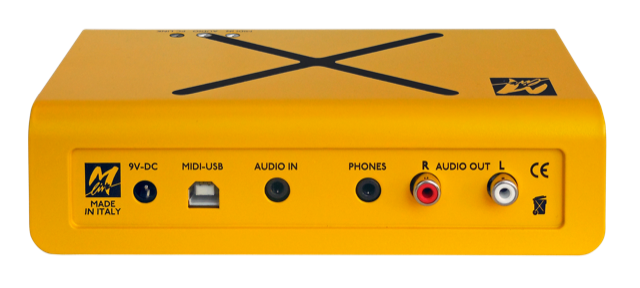

• Inputs and Outputs
  •    USB input (for MIDI and audio, including power supply from PC or Mac)
  •    Left and Right audio outputs (RCA)
  •    Headphone output
  •    Audio input for PC or other sources

  Sounds
  •    256 MB sound library
  •    848 sounds and percussion sounds
  •    46 drum kits
  •    108-note polyphony

  General Specifications
  •    Frequency range: 20 Hz to 20 kHz ± 3 dB
  •    Distortion (THD + Noise): <0.01% 20 Hz to 20 kHz
  •    Signal-to-noise ratio: -85 dB
  •    9V DC power supply (for devices that require it)
  •    Dimensions: 17.1 x 10.7 x 4.7 cm
  •    Weight: 0.75 kg
