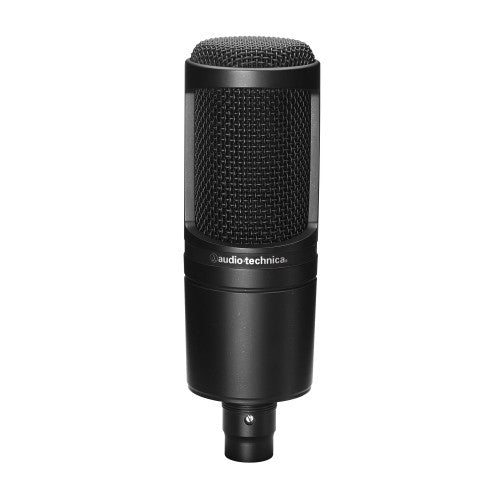

Audio-Technica AT2020 Cardioid Condenser Microphone

Audio-Technica’s stringent quality and consistency standards set the AT2020 apart from other mics in its class. Its low-mass diaphragm is custom-engineered for extended frequency response and superior transient response. With rugged construction for durable performance, the microphone offers a wide dynamic range and handles high SPLs with ease. The AT2020: the new standard for affordable side-address studio condensers.

• The price/performance standard in side-address studio condenser microphone technology

• Ideal for project/home-studio applications

• High SPL handling and wide dynamic range provide unmatched versatility

• Custom-engineered low-mass diaphragm provides extended frequency response and superior transient response

• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

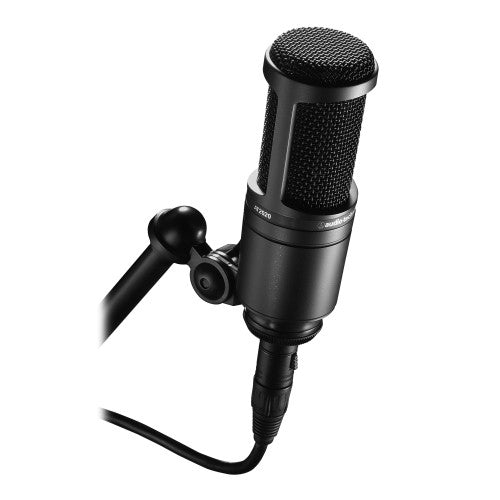

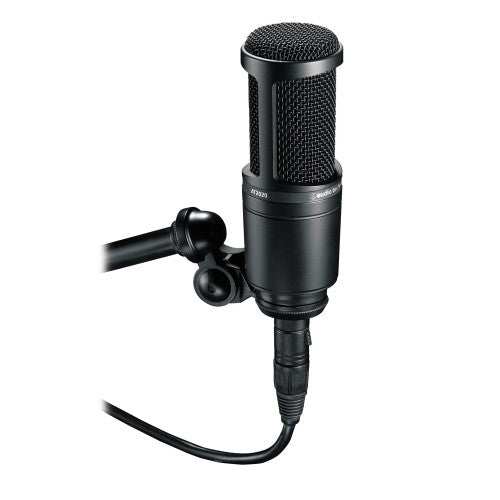

• Pivoting, threaded stand mount attaches securely for easy and precise placement of the microphone

  ELEMENT	Fixed-charge back plate, permanently polarized condenser
  POLAR PATTERN	Cardioid
  FREQUENCY RESPONSE	20-20,000 Hz
  OPEN CIRCUIT SENSITIVITY	–37 dB (14.1 mV) re 1V at 1 Pa
  IMPEDANCE	100 ohms
  MAXIMUM INPUT SOUND LEVEL	144 dB SPL, 1 kHz at 1% T.H.D.
  NOISE	20 dB SPL
  DYNAMIC RANGE (typical)	124 dB, 1 kHz at Max SPL
  SIGNAL-TO-NOISE RATIO	74 dB, 1 kHz at 1 Pa
  PHANTOM POWER REQUIREMENTS	48V DC, 2 mA typical
  WEIGHT	12.1 oz (345 g)
  DIMENSIONS	6.38" (162.0 mm) long, 2.05" (52.0 mm) maximum body diameter
  OUTPUT CONNECTOR	Integral 3-pin XLRM-type

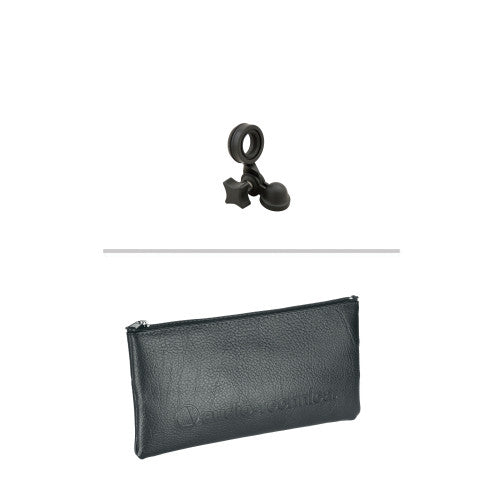

  ACCESSORIES FURNISHED	Stand mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
  AUDIO-TECHNICA CASE STYLE	R7
