Audient ASP880 - 8-Channel Microphone Preamplifier and ADC NAMM display
Audient ASP880 - 8-Channel Microphone Preamplifier and ADC NAMM display
- 8x Audient Console Mic Pres
- Burr Brown AD Converter Technology
- Variable Input Impedance
- Variable High-Pass Filters
- 8x Insert Points Between Preamps and ADC
- 2x Class-A JFET DI Instrument Inputs
- Digital Outputs - ADAT, AES & S/PDIF

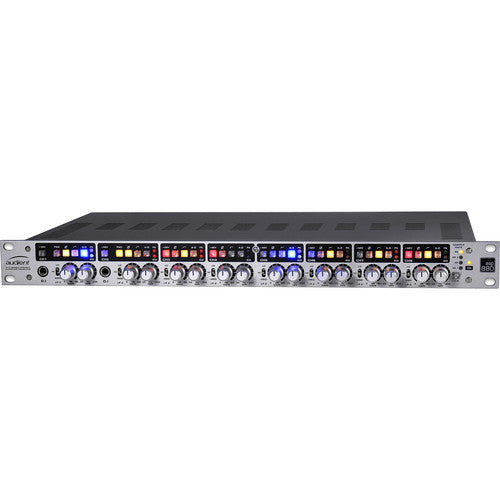

Intended for professional recording studios, the Audient ASP880 offers eight Class-A microphone preamplifiers from the company's consoles designed by David Dearden via XLR/TRS combo connectors as well as Burr Brown analog to digital conversion in an all-metal 1RU 19" rackmountable enclosure. It also features a pair of front panel Class-A JFET 1/4" DI instrument inputs for recording guitars, keyboards, drum machines, and more.

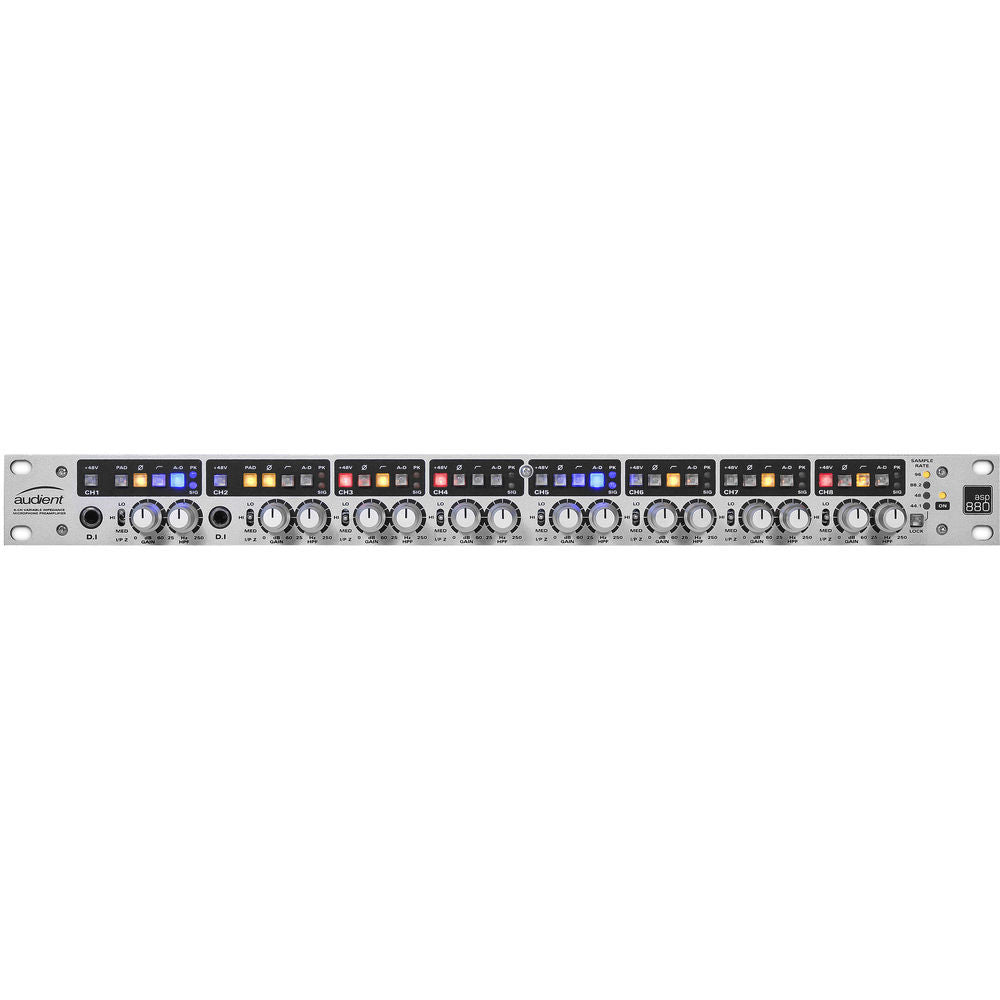

Each channel features a selectable +48V phantom power button, a selectable pad, a selectable polarity reverse switch, a variable high-pass filter, and a switch for inserting a signal processor between the preamplifier and A/D converter. A front-panel button allows you to select and lock the sample rate of the converter at 44.1, 48, 88.2, or 96 kHz. Digital outputs are provided by rear-panel ADAT, AES, and SPDIF connections. A word-clock input is also included.
Mic PresUses renowned Class-A console mic-pre design that was optimized over the course of 18 years by David DeardenA/D ConverterUses high-grade Burr Brown conversionPlug and PlayOffers eight channels of mic-pre and line inputs as well as two discrete JFET DI inputsAnalog InsertAllows you to insert signal processors between the preamplifier and the A/D converterHPFAllows you to selectively attenuate unwanted low frequenciesVariable ImpedanceAllows you to match the preamplifier to ribbon microphonesConstructionFeatures all-metal construction and hand-milled aluminum knobsAudient ASP880 Specs

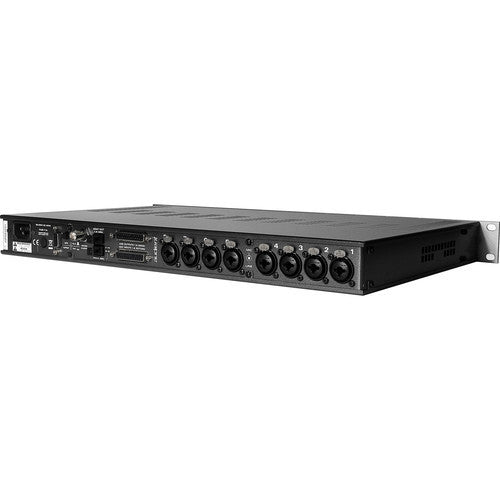

Connections 2x front panel 1/4" (6.3 mm) DI inputs
8x back-panel XLR/TRS combo inputs
1x D-Sub connector for line outputs 1-8 (send)
1x D-sub connector for ADC inputs 1-8 (return)
2x ADAT Out (1-8)
1x word clock
1x AES/SPDIFInputMic Gain Range Mic: -10 to +60 dB (-10 dB Pad)
Line: -16 to +44 dB (-10 dB Pad)
DI: -10 to +60 dB (-10 dB pad)Phantom Power 48 V +/-4 V at 10 mA/ChannelEIN < -127.5 dBuCMRR > 80 dB at 100 to 10 kHzMaximum Level Mic: +22 dBu (+32 dBu with Pad)
D.I.: +16 dBu (typical), +22 dBuInput Impedance Mic LO: 220 ohms Balanced
Mic MED: 12 kOhms Balanced
Mic HI: 28 kOhms balanced Line (All Z): >6 kOhms balanced
D.I.: 1 MOhm unbalancedFrequency Response Mic: +/-0. 5 dB from 10 Hz to 100 kHz
D.I.: +/-0.5 dB from 10 Hz to 50 kHzCrosstalk < -85 dBu at 1,000 and 10,000 HzTHD+N Mic: 0.003% (-90.5 dBu)
DI: <0.03% (-70 dBu)SNR Mic: > 90 dB
D.I.: 89 dBHPF Sweepable from 25 to 250 Hz, 2nd Order (12 dB/Octave)XLR / Phone Jack Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)Phono (1/4") TIP (Hot), RING (Cold) & SLEEVE (Shield)OutputMaximum Output Level +27.5 dBuOutput Impedance <100 ohms balancedA/D - D/A ConversionsMaximum Input Level +18 dBuReference Level 0 dBFS = +18 dBuInput Impedance >10 kOhms balancedFrequency Response +/-0.5 dB at 10 Hz to Fs/2Crosstalk <-80 dBu at 1 and 10 kHzTHD + N -1 dBFS (1kHz): <0.002% (-94 dB)
-6 dBFS (1 kHz): <0.002% (-94 dB)Dynamic Range 113 dB unweighted
115 dB A-weightedLED PEAK LED LINEUP: +16 dBu (-2 dBFS)
SIGNAL LED LINEUP: Variable Brightness from -30 dBu to -10 dBu (-28 dBFS)Digital Audio I/OSample Rate ADAT 8x CHANNELS SMUX: 44.1 to 96 kHz
AES | S/PDIF 8 Channels: 44.1 to 96 kHzClock Internal or ExternalWordclock Input 75 ohm BNC
Optional 75 ohm terminationPower Supply Gloval low noise internal SMPS, fanlessLine Voltage 90 to 264 V (a.c)Rails +/-18 VDC, +48 VDC & +5 VDCFuse T1A (1 ampere time delay)Power Consumption Maximum 40 WDimensions 19.0" x 1.75 x 12.6" (482 x 44.4 x 321 mm)Weight 8.8 lb (4.0 kg)Packaging InfoPackage Weight 11.45 lbBox Dimensions (LxWxH) 22 x 15.5 x 3"
